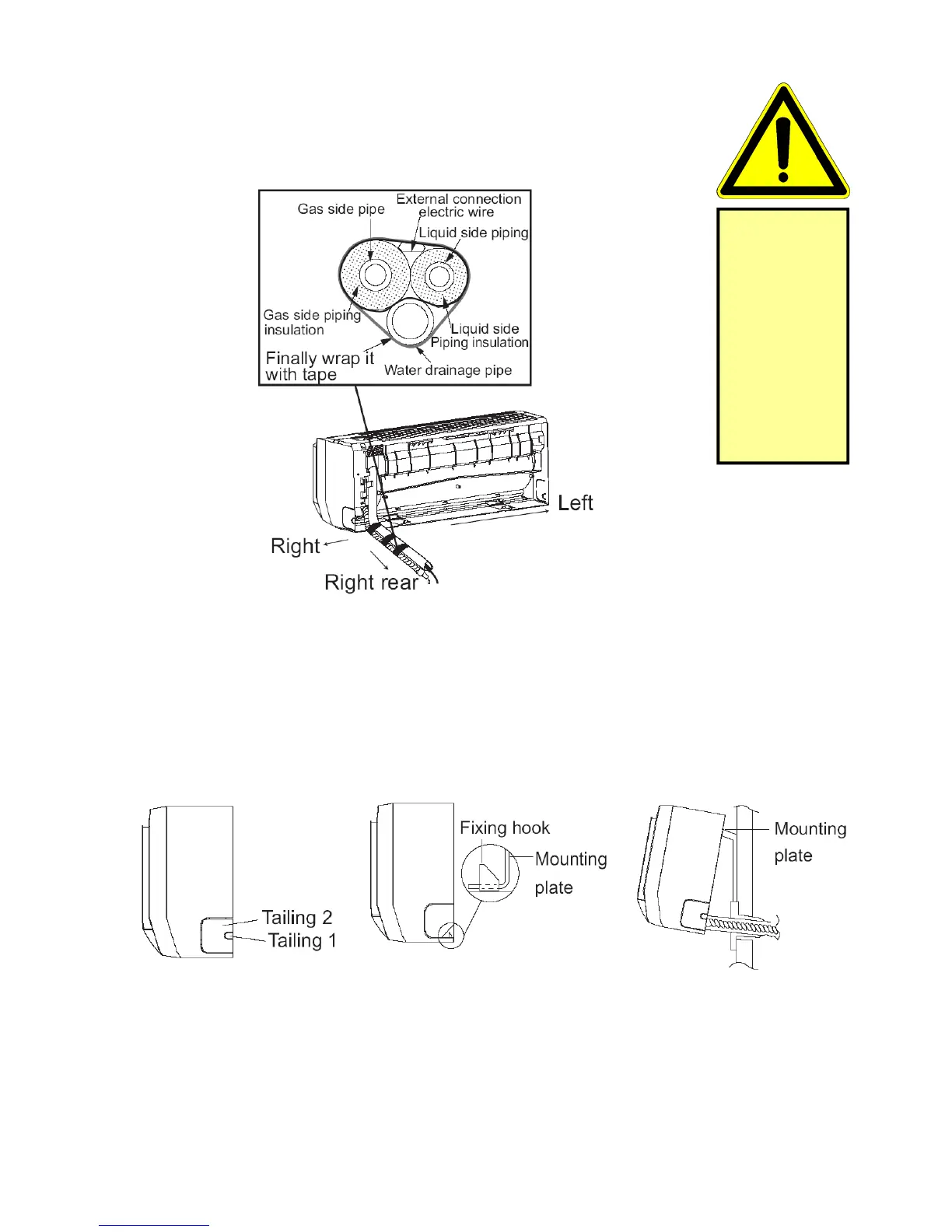

Running of connection pipe set
Refrigerant transfer pipes (liquid and gaseous refrigerant pipes) and the connec-
tion cables for indoor and outdoor units are bundled to one common pipe set
permanently connected to the indoor unit.
The pipe set and the drain hose could be taken out of the indoor unit on the right
and on the left side, as well as on the backside left, on the backside right.
1. If you want to lead the main power cable with socket from the right or from
the left side cut off the tailings 1 on the operational side,
2. Cut off tailing 2 if you want to lead out both the main power cable, the in-
door to outdoor connection wires and the refrigerant piping.
Hang up the indoor unit to the mounting plate and make sure that it is fixed
tightly. After checking the installation, close the cable channel, which is located
inside the wall by using operational resources such as plaster or mortar.
The unit is an
INTRINSIC SAFE
system!
Refrigerant
charge is limited
to 200 gram
Top-up of
charge is not
permitted
Modification of
pipe-length is
not permitted
