MAINTENANCE
152

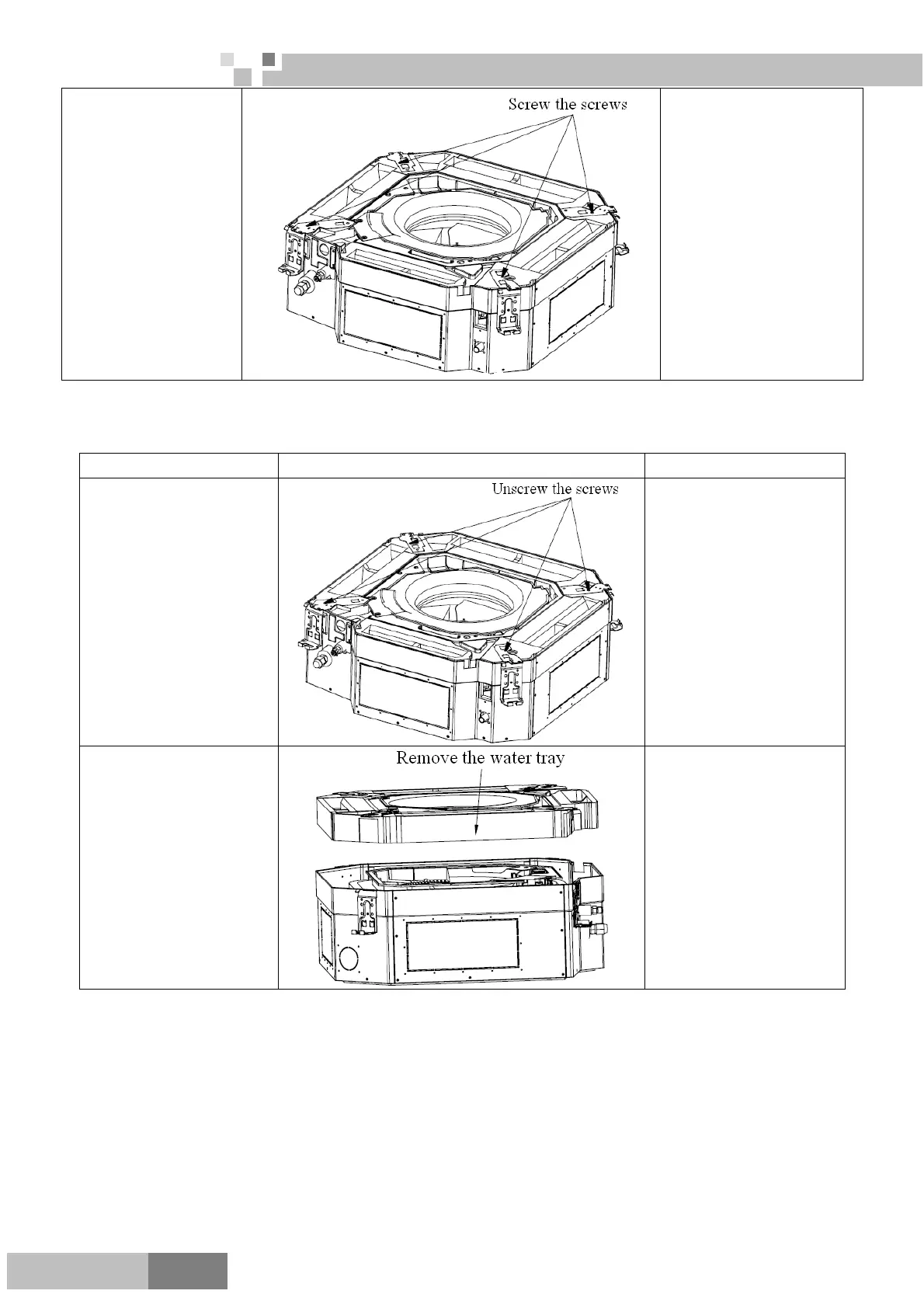

9.Mount the water tray
and screw the screws

Mount the water tray and
screw the screws
◆ Removal and Assembly of drainage pump
Remark: Prior to the assembly of the drainage pump, make sure the power supply is cut off.
Steps Illustrations Operation Instructions
1.Unscrew the fixed screws
of the water tray
Unscrew the fixed
screws of the water tray
2.Remove the water tray Remove the water tray
