Super Free Match
Service Manual
MAINTENANCE
154

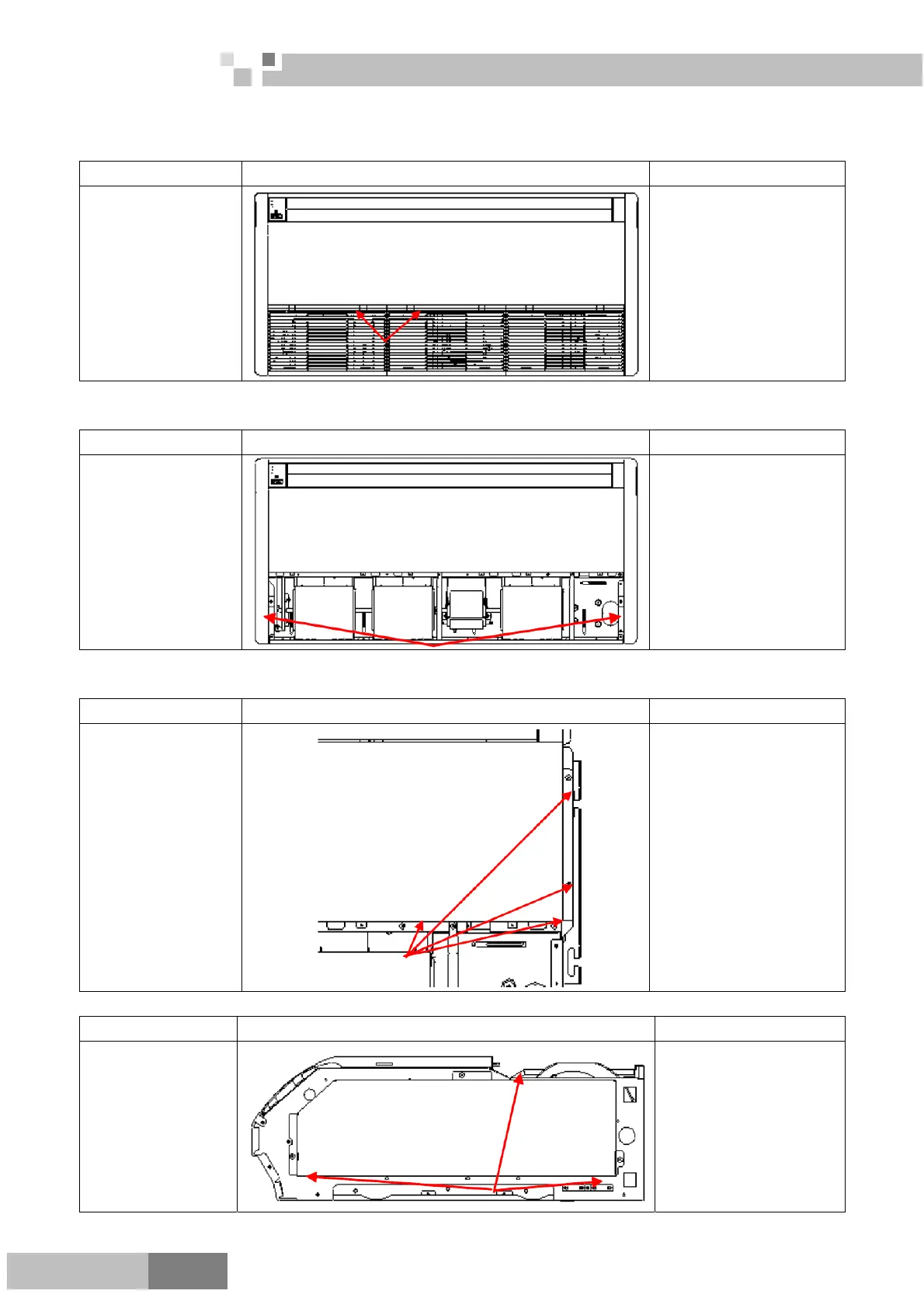

6.2.4 Floor ceiling type
Remark: Prior to the assembly of the indoor unit, make sure the power supply is cut off.
◆ Removal panel grating module
Steps Illustrations Operation Instructions
Remove sub-assy of
front grill
Move down the clip of the
sub-assy of fromt grill
until the front grill is open.
(As is shown in the graph,
arrow represents the
position of bottons. There
are two clips for each
grating.)
◆ Remove right and left finishing plates
Steps Illustrations Operation Instructions
Remove right and left
finishing plates
Remove the screws as
shown in the graph with
screwdriver and then push
upward to remove the right
and left finishing plates.
(As is shown in the graph,
arrow represents the
position of screws.)
◆ Remove panel parts
Steps Illustrations Operation Instructions
Remove panel parts
Remove the screws shown
by the arrow in the graph
with screwdriver (two on
both right and left and 4 in
the front) and then remove
the panel parts.
◆ Remove sub-assy of electric box
Steps Illustrations Operation Instructions
Remove of electric
box cover
Remove 3 screws as
shown by the arrow in the
graph on left and remove
the electric box cover.
To Next Page
