High Volume, Low Speed Ceiling Fans16
®
Components required from Bag # 915066 OR 854832:
• Airfoil Blade (3 OR 6)
• Winglet (3 OR 6)
• #10 – 12 x 3/4 in. Screw (6 OR 12)
• 5/16 in. Washers (12 OR 24)
• 5/16 in. – 18 Grade 8 Nylon Locknut (6 OR 12)
• 5/16 in. – 18 x 2 in. Grade 8 Hex Bolt (6 OR 12)
Hardware/Tools Needed (Not Included):
• 1/2 in. Socket and Socket Wrench
• 1/2 in. Wrench
• Torque Wrench
• #2 Phillips Bit and Driver

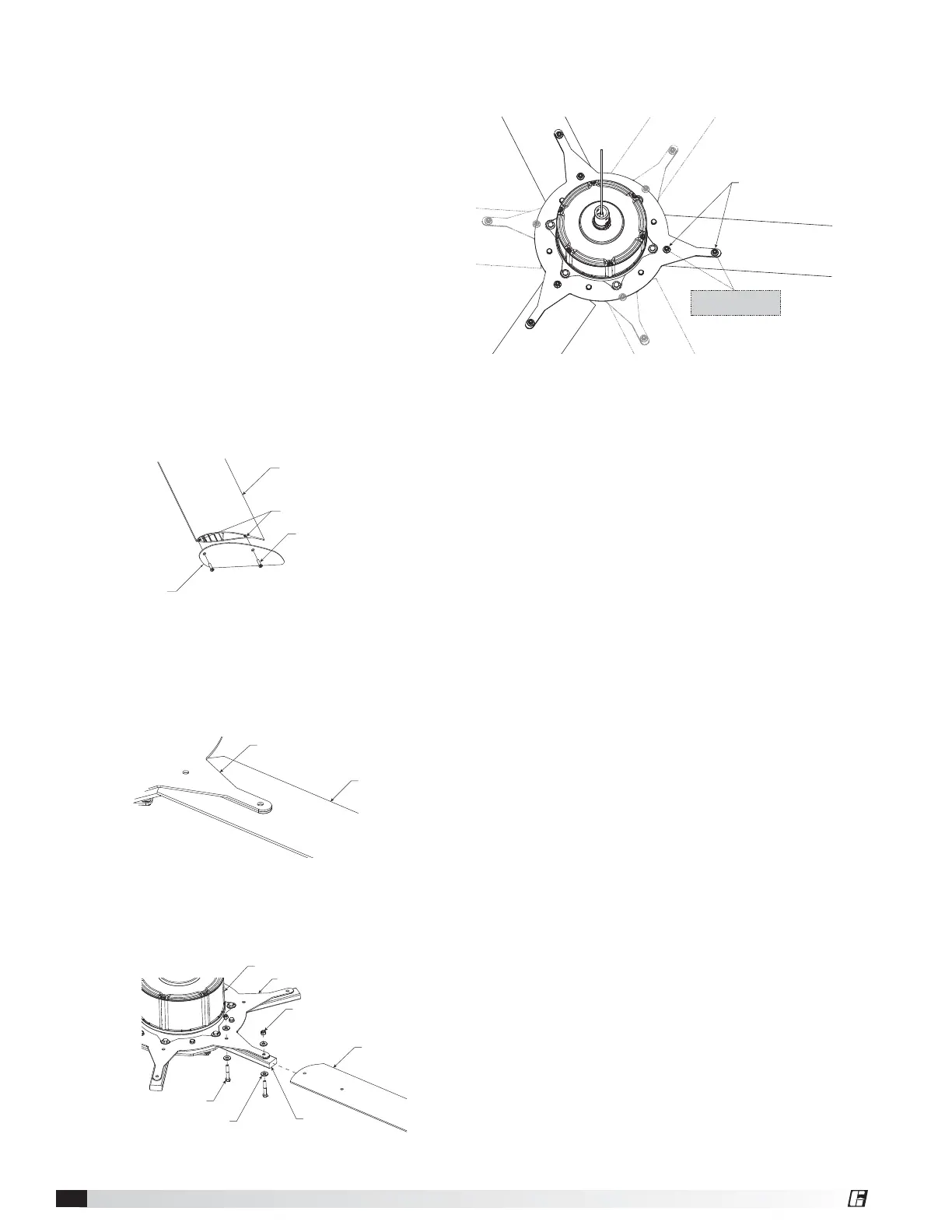

1. Install one winglet per airfoil blade using the screw
bosses located in each blade on the opposite end
from the mounting holes. Use a #2 phillips bit to
install (2) #10 – 12 x 3/4 in. screws per winglet.
Torque screws to 60 in∙lbf (6.8 N∙m).
AIRFOIL BLADE
SCREW BOSSES
WINGLET
#10 - 12 x 3/4 in. SCREW
(2 PER BLADE)
NOTE: Improperly fastened winglets may result in
unwanted noise.
2. Lift the first blade into place, and slide over the
motor strut allowing the airfoil retaining ring to rest
on top of the airfoil blade. It might be necessary to
use two people for this step.
AIRFOIL BLADE
AIRFOIL RETAINING RING
3. With the blade in position on the motor strut, install
(2) 5/16 in. 18 x 2 in. hex bolts, (4) 5/16 in. washers,
and (2) 5/16 in. – 18 nylon locknuts per blade as
shown below. Hand tighten hardware.
5/16 in. WASHER
(2 PER BLADE)
5/16 in. - 18 GRADE 8 NYLON LOCKNUT
(2 PER BLADE)
MOTOR & HUB ASSEMBLY
5/16 in. - 18 x 2 in. GRADE 8 HEX BOLT
(2 PER BLADE)
MOTOR STRUT
AIRFOIL BLADE
AIRFOIL RETAINING RING
4. Repeat steps 1 through 3 on remaining airfoil
blades. Torque the installed bolts to 25 ft∙lbf
(34N∙m).
5/16 in. - 18 x 2 GRADE 8 BOLT
(2 PER BLADE)
TORQUE TO 25 FT∙LBF
(34 N∙m)
IMPORTANT: If airfoils must be removed and
reinstalled for any reason, do not re-use the supplied
nylon locknuts. Re-use increases the risk of locknuts
loosening during operation, which may result in
unwanted noise and/or unsafe operation of the fan.
Contact your local representative or the factory if
replacement parts are needed.
