555BAT™ Battery-Powered Bender
Operation (cont’d)
5. Bend the conduit:
If bending 1-1/2" – 2" EMT or IMC:
a. Place one foot on the loading pedal, as shown.
b. Press and hold BEND. The bender will pull up the
roller support. When the roller support contacts the
stop, remove your foot from the loading pedal.
c. Release the BEND key as you approach the desired
angle of bend.
d. Press BEND momentarily until the bend is
complete.
If bending any other size or type of conduit:
e. Press and hold BEND.
f. Release the BEND key as you approach the desired
angle of bend.
g. Press BEND momentarily until the bend is
complete.

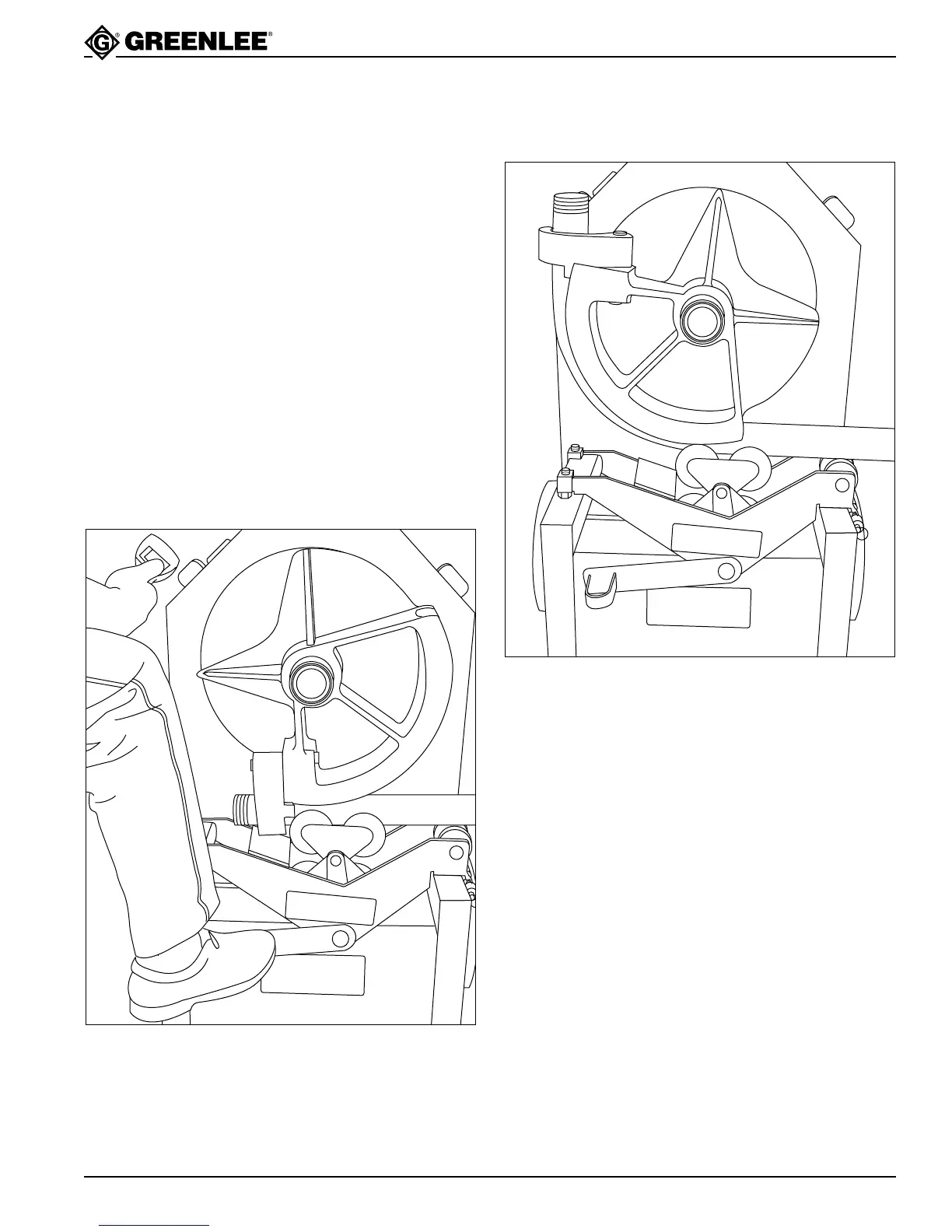

Engaging the Loading Pedal
(for 1-1/2" – 2" EMT or IMC Only)
6. Unload the Bender.
a. Press UNLOAD. The shoe will rotate and drop the
Roller Support Unit (EMT and IMC only).
b. Twist the conduit to release it from the hook.
Remove the conduit.
c. Press and hold UNLOAD until the shoe has rotated
back to 0°.
Finished Bend
