555BAT™ Battery-Powered Bender
Motor—24 Volt
1

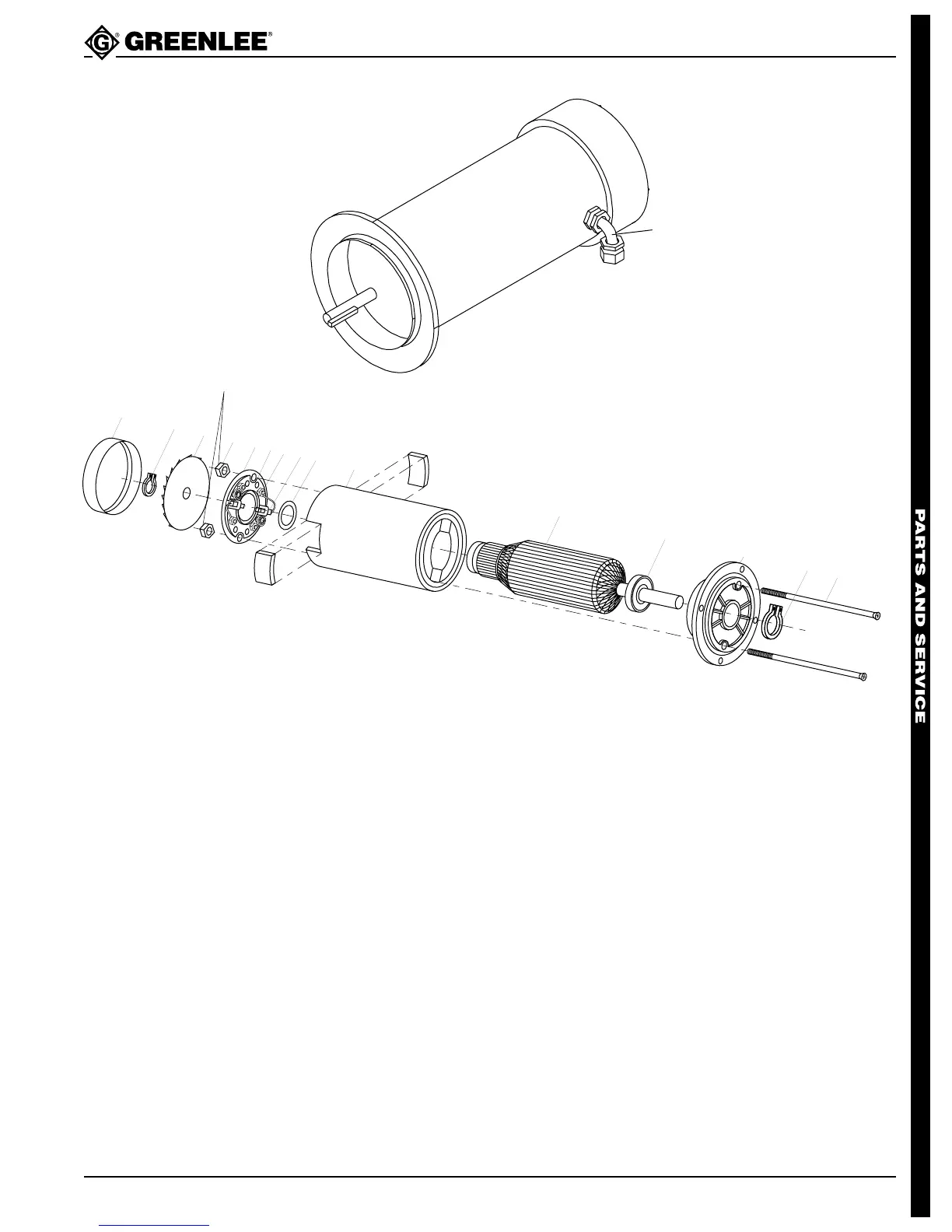

Key No. Part No. Description Qty.
918 6892.0 Motor, 24 Volt ........................................................1
1 918 5876.3 90° Connector........................................................1
2 918 6471.2 Fan Cover..............................................................1
3 905 5071.4 Retaining Ring .......................................................1
4 918 6432.1 Fan ........................................................................1
5 918 6428.3 End Bell Nut...........................................................2
6 918 6908.0 Bell, Rear End .......................................................1
7 918 6430.5 Brush Cover...........................................................2
8 918 6431.3 Screw.....................................................................7
9 918 6909.9 Brush .....................................................................2
10 918 6422.4 Thrust Washer .......................................................1
11 918 6906.4 Shell & Magnet Assembly, 24 Volt ........................1
12 918 6907.2 Armature, 24 Volt...................................................1
13 918 6421.6 Bearing ..................................................................2
14 918 6418.6 Bell, Front End .......................................................1
15 918 6424.0 Retaining Ring .......................................................1
16 918 6426.7 Tie Bolt ..................................................................2
2
11
12
13
16
15
14
3
4
5
6
8
9
10
7
Torque to
80 inch-pounds
