Greenlee 555BAT - Bending Shoes and Roller Supports (contd) - PVC

For 1-1/2" – 2" 40-Mil PVC Coated Rigid Conduit
503 7281.5 Shoe Unit (includes keys 1 - 7) ...... 1
1 905 2426.8 Screw, cap,
5/8–11 x 4.00 socket head............. 1
2 501 7974.8 Pivot............................................... 1
3 500 2499.0 Hook .............................................. 1
4 502 3422.6 Stud, drive...................................... 4
5 905 2675.9 Washer, flat, .687 x 1.75 x .125 ..... 1
6 905 0905.6 Washer, lock,
.645 x .923 x .203 spring ............... 1
7 905 1569.2 Nut, hex, 5/8–11 ............................ 1
8 503 7282.3 Roller Support Unit
(includes keys 9 - 14)..................... 1
9 503 7284.0 1-1/2" Roller ................................... 1
10 503 7662.4 1-1/2" Roller axle ........................... 1
11 905 1528.5 Retaining ring, .750,
Truarc #5160-75-SS-P................... 3
12 503 7283.1 2" Roller ......................................... 1
13 503 7661.6 2" Roller axle ................................. 1
14 503 2025.4 Spacer ........................................... 1

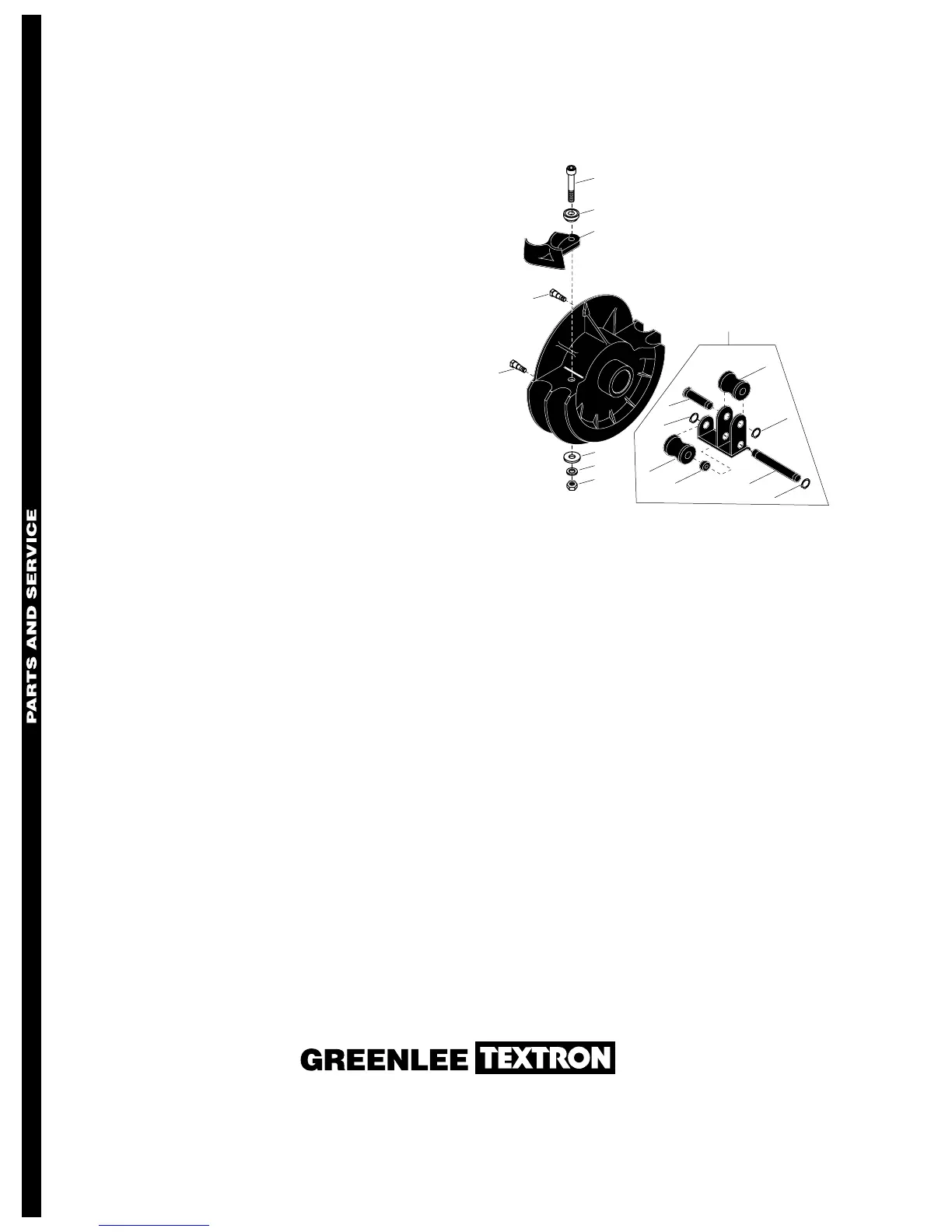

Bending Shoes and Roller Supports (cont’d)
4
4
5
6
7
3
2
1
8
12
14
11
13
11
9
10
11
