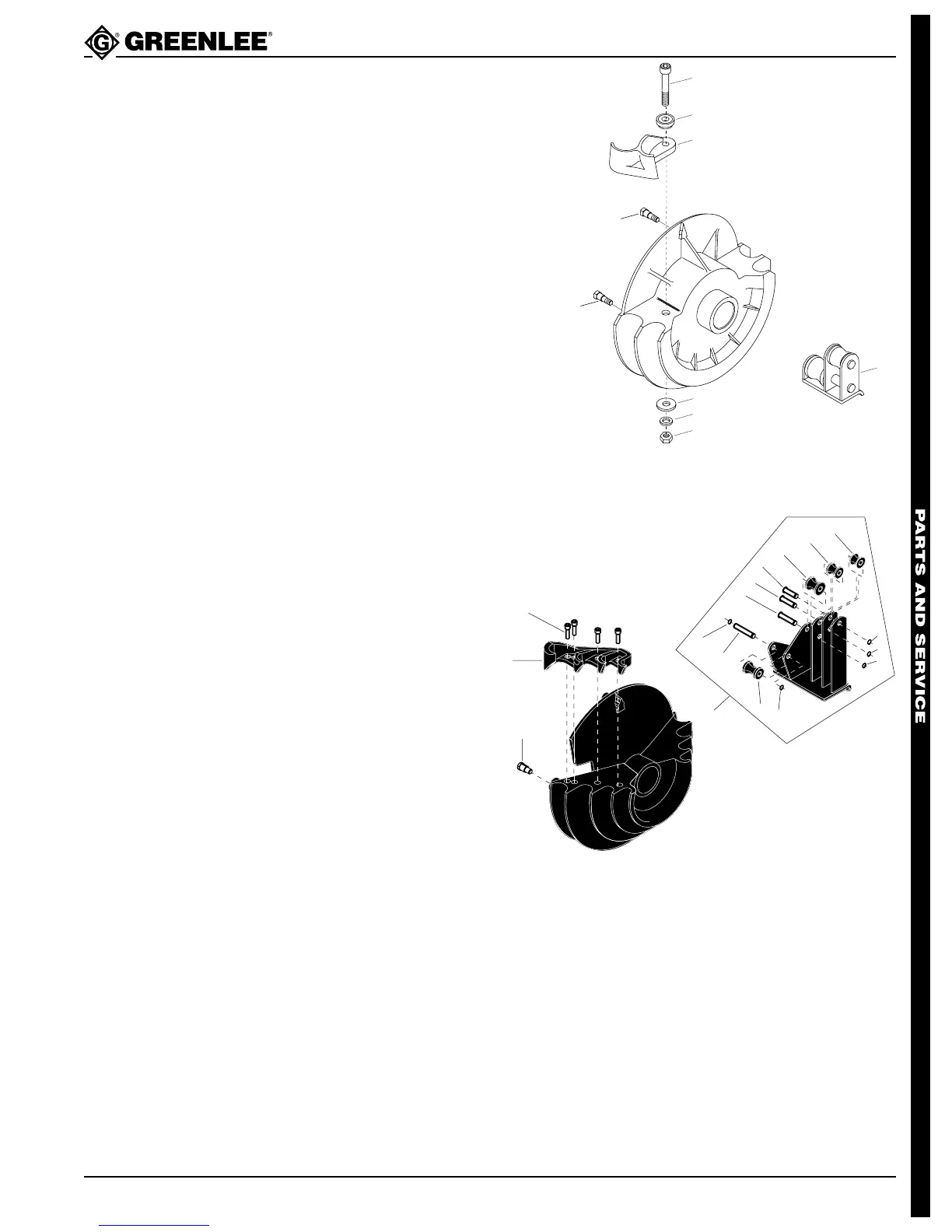

555BAT™ Battery-Powered Bender
Bending Shoes and Roller Supports (cont’d)
For 1-1/2" – 2" Rigid Steel
501 7937.3 Shoe Unit (includes keys 1 - 7) ...... 1
1 905 2426.8 Screw, cap,
5/8–11 x 4.00 socket head............. 1
2 501 7974.8 Pivot............................................... 1
3 501 7969.1 Hook .............................................. 1
4 502 3422.6 Stud, drive...................................... 4
5 905 2675.9 Washer, flat, .687 x 1.75 x .125 ..... 1
6 905 0905.6 Washer, lock,
.645 x .923 x .203 spring ............... 1
7 905 1569.2 Nut, hex, 5/8–11 ............................ 1
8 501 7984.5 Roller Support Unit ........................ 1
For 1/2" – 1-1/4" 40-Mil PVC Coated Rigid Conduit
500 0573.1 Shoe Unit (includes 1 - 3) .............. 1
1 905 1088.7 Screw, cap,
3/8–16 x 1.25 socket head............. 4
2 500 0570.7 Hook .............................................. 1
3 502 3422.6 Stud, drive...................................... 3
4 500 0946.0 Roller Support Unit
(includes keys 5 - 13)..................... 1
5 500 0930.3 1-1/4" Roller ................................... 1
6 905 1353.3 Retaining ring, .500,
Truarc #5160-50-S-PP................... 5
7 500 0927.3 1/2" Roller ...................................... 1
8 500 0928.1 3/4" Roller ...................................... 1
9 500 0929.0 1" Roller ......................................... 1
10 500 0923.0 1/2" Roller axle .............................. 1
11 500 0924.9 3/4" Roller axle .............................. 1
12 500 0925.7 1" Roller axle ................................. 1
13 500 0926.5 1-1/4" Roller axle ........................... 1
