555BAT™ Battery-Powered Bender

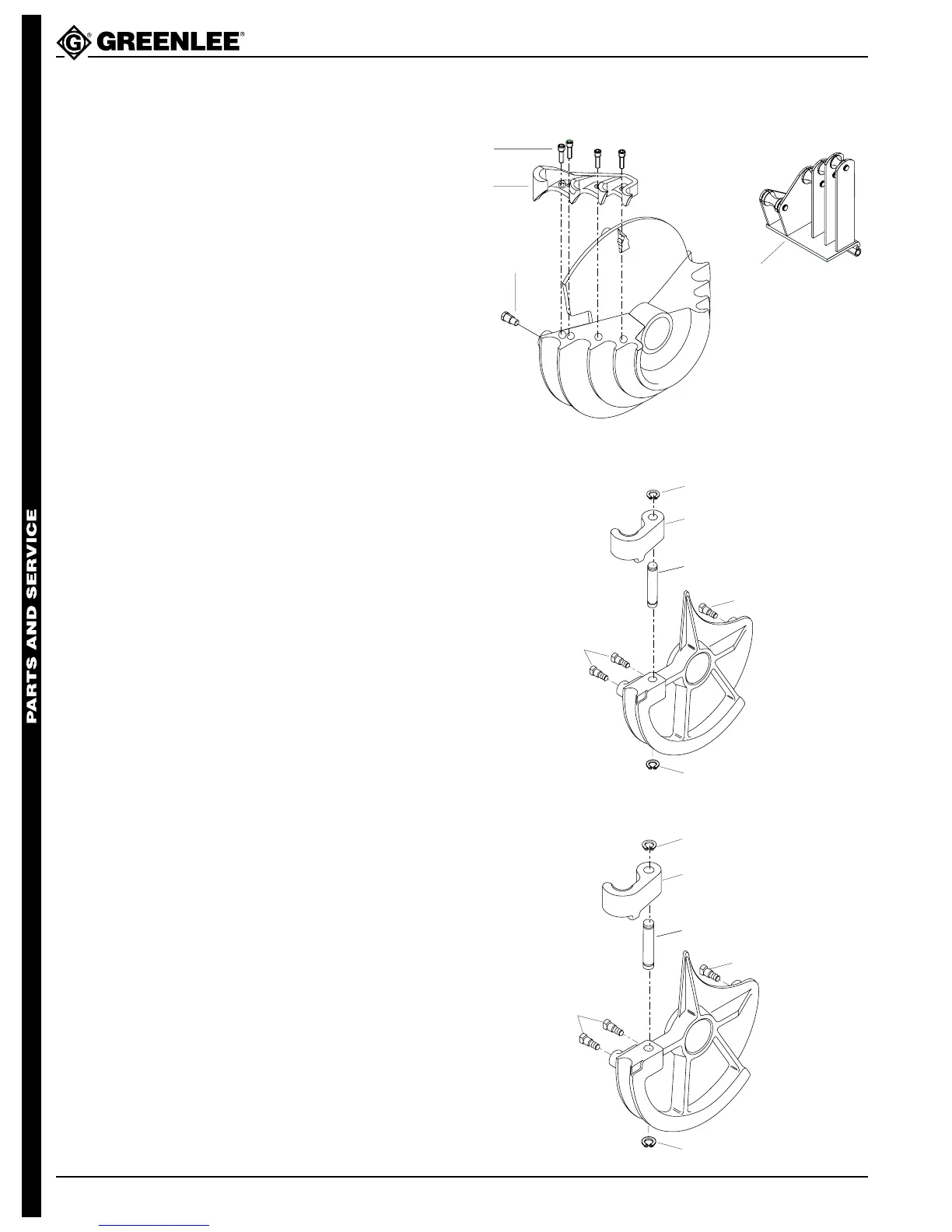

Bending Shoes and Roller Supports (cont’d)
1
2
3
4
4
1
1/2" – 1-1/4" IMC and Rigid Steel
500 0571.5 Shoe Unit (includes keys 1 - 3) ...... 1
1 905 1088.7 Screw, cap,
3/8"–16 x 1.25 socket head ........... 4
2 500 0569.3 Hook .............................................. 1
3 502 3422.6 Stud, drive...................................... 3
4 500 0936.2 Roller Support Unit ........................ 1
For 1-1/2" IMC
502 5263.1 Shoe Unit (includes keys 1 - 4) ...... 1
1 905 1528.5 Retaining ring, .750,
Truarc #5160-75-SS-P................... 2
2 501 8811.9 Hook .............................................. 1
3 501 8837.2 Pin, hook........................................ 1
4 502 3442.6 Stud, drive...................................... 3
For 2" IMC
502 5268.2 Shoe Unit (includes keys 1 - 4) ...... 1
1 905 1529.3 Retaining ring, .875,
Truarc #5160-87 ............................ 2
2 500 0195.7 Hook .............................................. 1
3 501 8842.9 Pin, hook........................................ 1
4 502 3422.6 Stud, drive...................................... 3
