13
W450311 Rev C 2/13

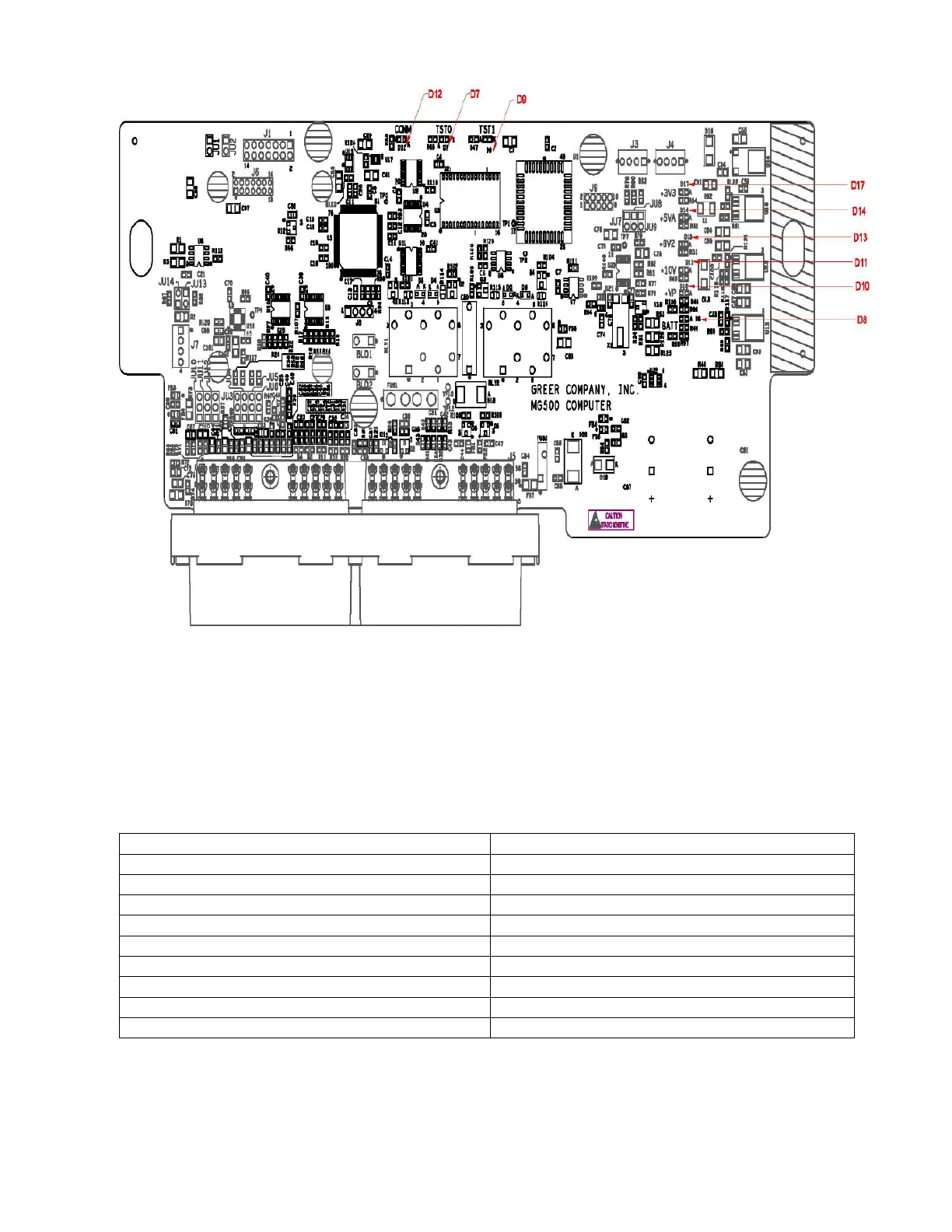

Metri-Pack Style Computer
3.3 Internal Status Indicators
The computer unit contains a row of LED indicators for checking computer operation. During normal
operation, all LEDs will be illuminated with the COMM indicator blinking. If not, please contact Technical
Support for assistance. Use the following chart and preceding images for LED location.
LED Indicator
Function
D7
Communication Indicator TST0
D8
Battery Power_POS
D9
Communication Indicator TST1
D10
+VP
D11
+10V
D12
COMM (Communication Indicator)
D13
+8V2
D14
+5V
D17
+3V3
