4.4 Connectors

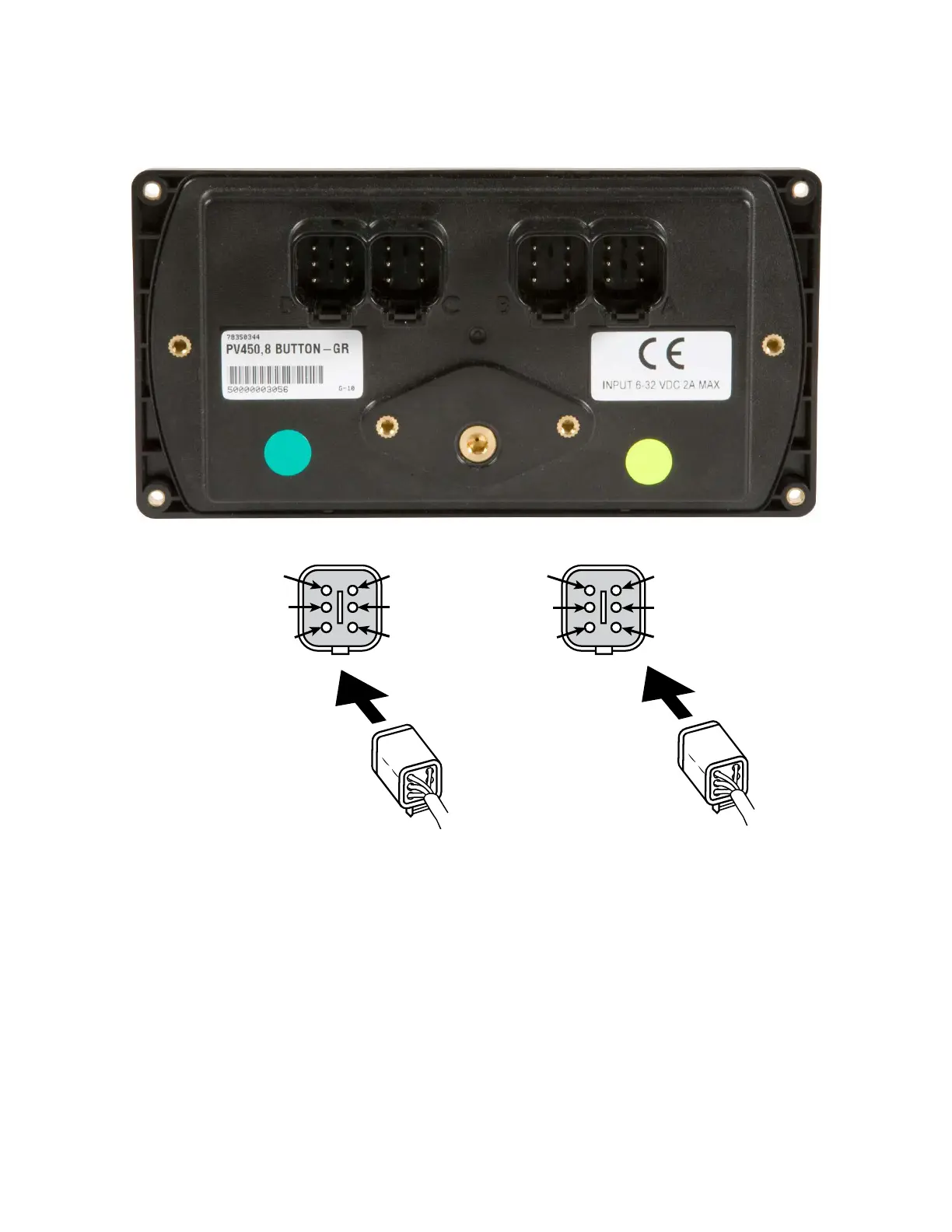

There are four, 6-pin Deutsch connectors on the rear of the Insight.
4.5 Horn
Ensure the horn is connected to the wiring harness via the two-pin Deutsch connector.
4.6 Moisture
The display console conforms to IP67 in protection against dust and water, when correctly installed.
Plug C Plug B
To Port C To Port B
CAN2 L
CAN2 H
NMEA BATTERY
NO CONNECT
ANALOG INPUT
GROUND
ANALONG INPUT
NMEA GROUND
CAN1 L
CAN1 H
BATTERY
OPEN-DRAIN
DIGITAL OUTPUT
IGNITION INPUT
GROUND
1 6 1 6
