3.1 Computer Unit Overview
The computer unit is the center of the system. It reads the sensors, controls computations and
disconnect functions, and communicates with the display console/internal bar graph.
Two hydraulic pressure sensors are contained within the unit. These sensors, as well as the computer
are factory pre-calibrated as a unit and may not be replaced in the field.

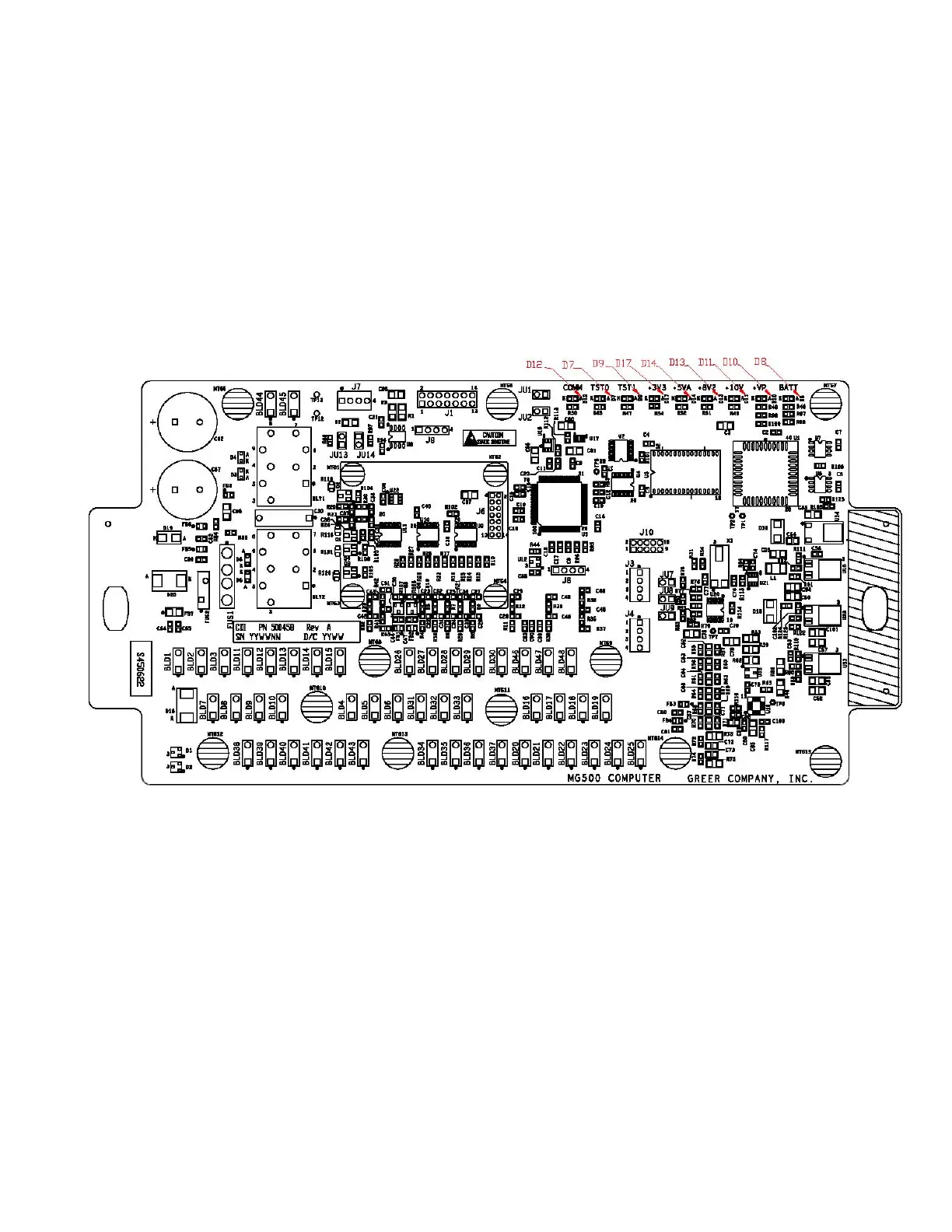

3.2 Computer Unit Layout
NOTE: Due to differences in computer unit configurations, the locations of board components may vary.
