30
W450311 Rev C 2/13

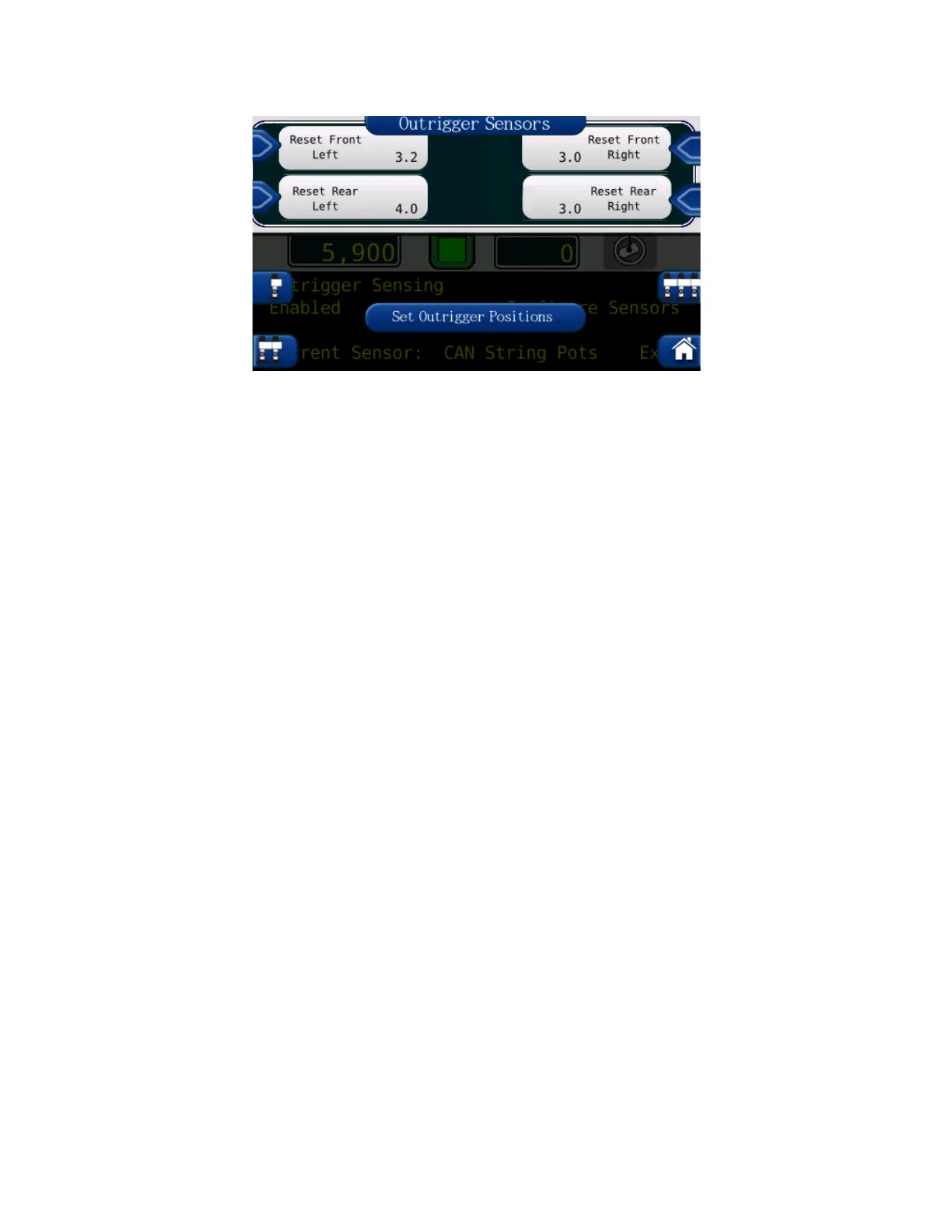

8. The outrigger position sensors are now calibrated.
5.9 After the Calibration Routine
When the calibration routine is complete, thoroughly test the unit to ensure the radius on the unit is
accurate to + .5 of a foot.
In order to perform load testing, a known weight is necessary. Perform testing from 2-3 different boom
angles, as well as extensions.
The load shown must be within +10% when testing. If the load is outside these limits, the calibration
should be rechecked for accuracy.
