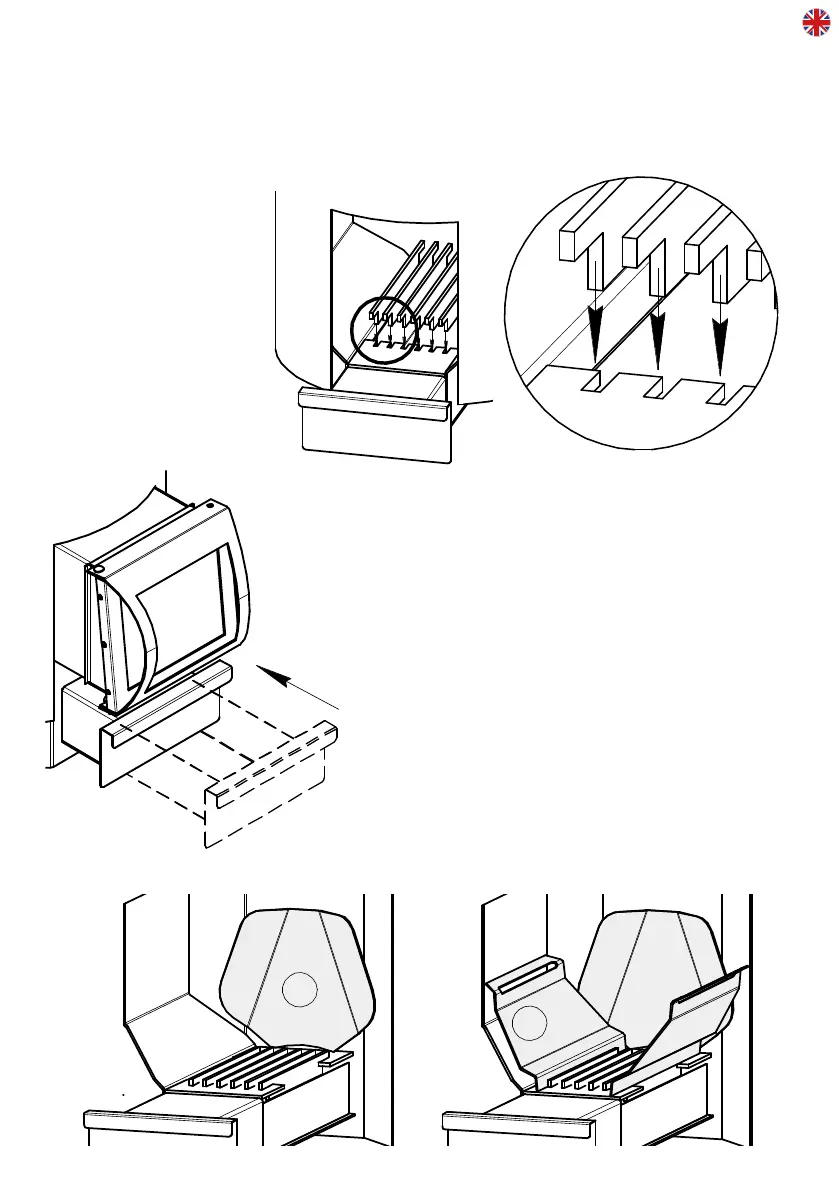

APPENDIX 4. Heater parts installation
Grate
The grate consists of 6
separate plates.
A separate seat is
provided for each plate.
Ash drawer
Place of installation and installation method for
the ash drawer are shown in the figure.
Combustion chamber reinforcement
Procedure (refer to the figure below):
1) Install the back plate with a convex part to the
wall of the firebox. The upper part of the plate
shall rest on the firebox wall, while the lower part
shall be spaced 5-10 mm from it;
2) Install side plates one by one (the order of
installation is of no importance).
1
1
2
2
1
1
2
2
IMPORTANT! The works shall be carried out in an extremely careful way, eliminating the
possibility of damage to the paint coating.
