Cycle Analyst V3.1 User Manual
Rev 1.0
If you forget to reset, the trip amp-hour, watt-hour, and distance accumulators will
eventually peg at their maximum values and you'll stop accumulating new
statistics. You also won't get the benefit of seeing an accurate battery charge
cycle count, seeing trip to trip variation in your wh/km consumption stats, and
learning exactly how many amp-hours the battery is able to deliver.
If you press the reset button on certain other display screens, it will reset just the
statistics associated with that screen, like a reset of just the peak statistics or just
the temperature data.
6 Setup Menu
If you received your CA3 as part of a complete ebike kit package then it should
be pre-configured with reasonable values for that setup and be ready to ride.
There should be little need to change anything. If it was received as an
independent device and not as part of a kit package, then there is a good chance
that you will need to change a number of settings in the CA3’s setup menu for it
to function with accurate readings. Most essential would be the wheel size,
battery details, and Rshunt value.
6.1 Accessing and Navigating the Setup Menu

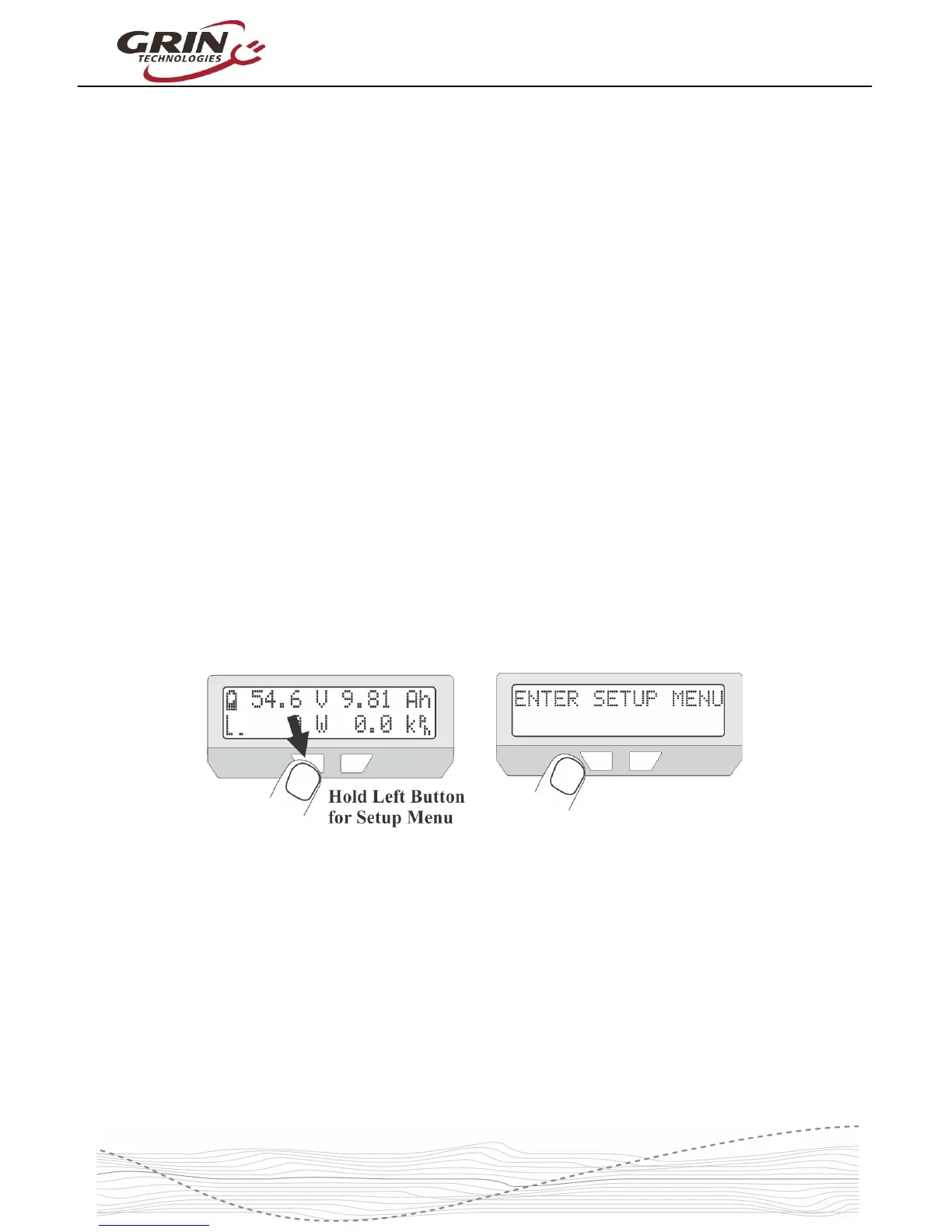

The Setup Menu is accessed by pressing and holding the left button.
Once you are in the setup menu, the left and right buttons allow you to scroll
through the options or toggle digits up and down. Pressing and holding the
buttons has a special effect.
Hold the RIGHT button to enter a menu or save a setting (like pressing
enter on a keyboard).
Hold the LEFT button to exit something (like pressing escape on a
keyboard).
The setup page is organized with all the related settings grouped into sub-
menus. Each of these high level menus is summarized in the table below.
10
