Cycle Analyst V3.1 User Manual
Rev 1.0

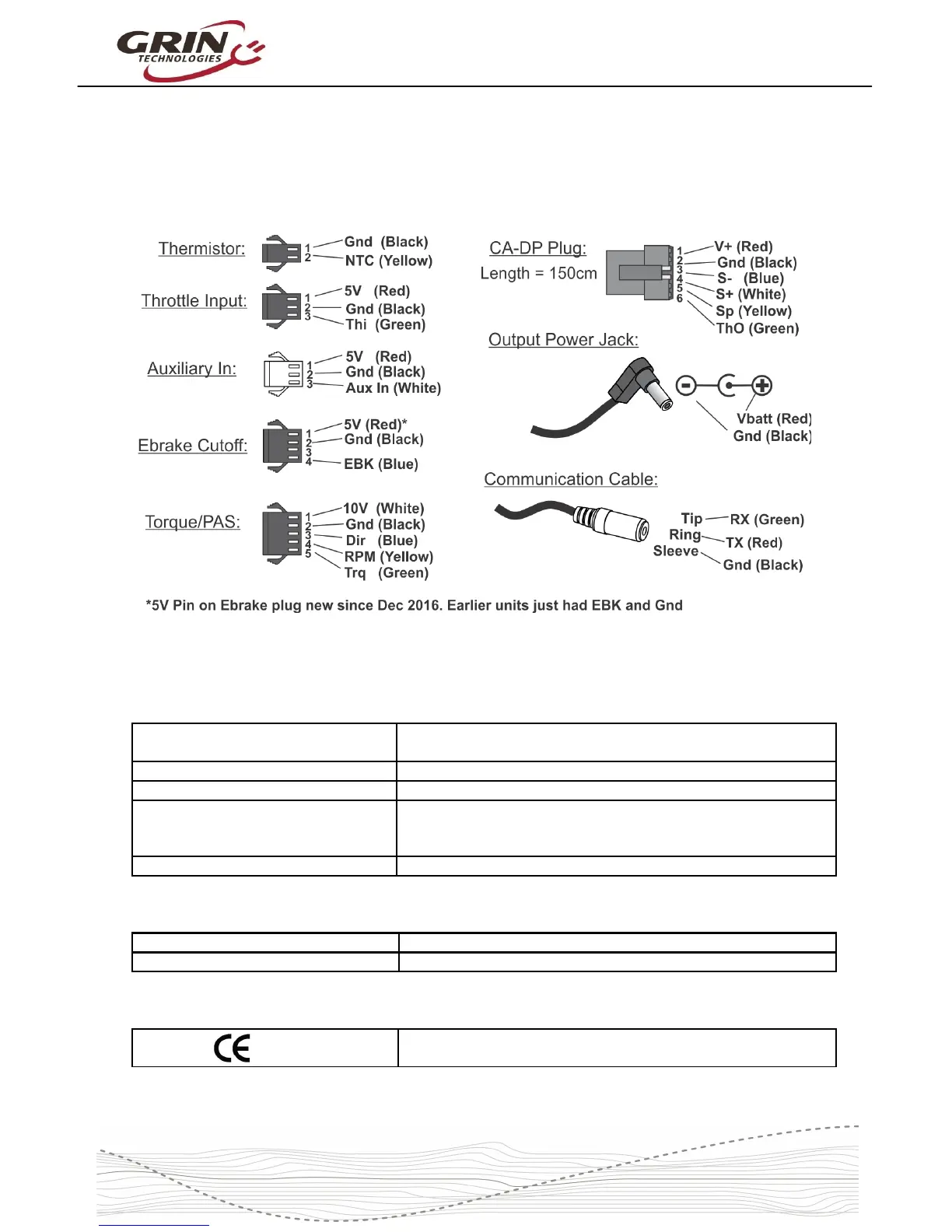

11 Specifications
11.1.1 Cables and Connectors
JST-SM connector series for signal lines. DC Power is 5.5x2.1mm.
11.1.2 Electrical
Voltage Range 10-150V, but derated by accessory current draw. With
common torque sensors on PAS plug, 60V max.
Voltage Resolution 0.1V
Device Current 10mA
Current Sense Range ±240 mV/Rshunt. For instance, with a 2mΩ sense resistor,
the maximum current is 120 amps. With a 0.5mΩ resistor,
up to 480 amps, and so forth
Current Resolution 0.01A in low range mode, 0.1A in high range mode
11.1.3 Mechanical
Dimensions 129 x 57 x 25 mm
Weight 270 g
11.1.4 Certifications
This device is CE compliant for use with 60V or lower
ebike systems
