Cycle Analyst V3.1 User Manual
Rev 1.0

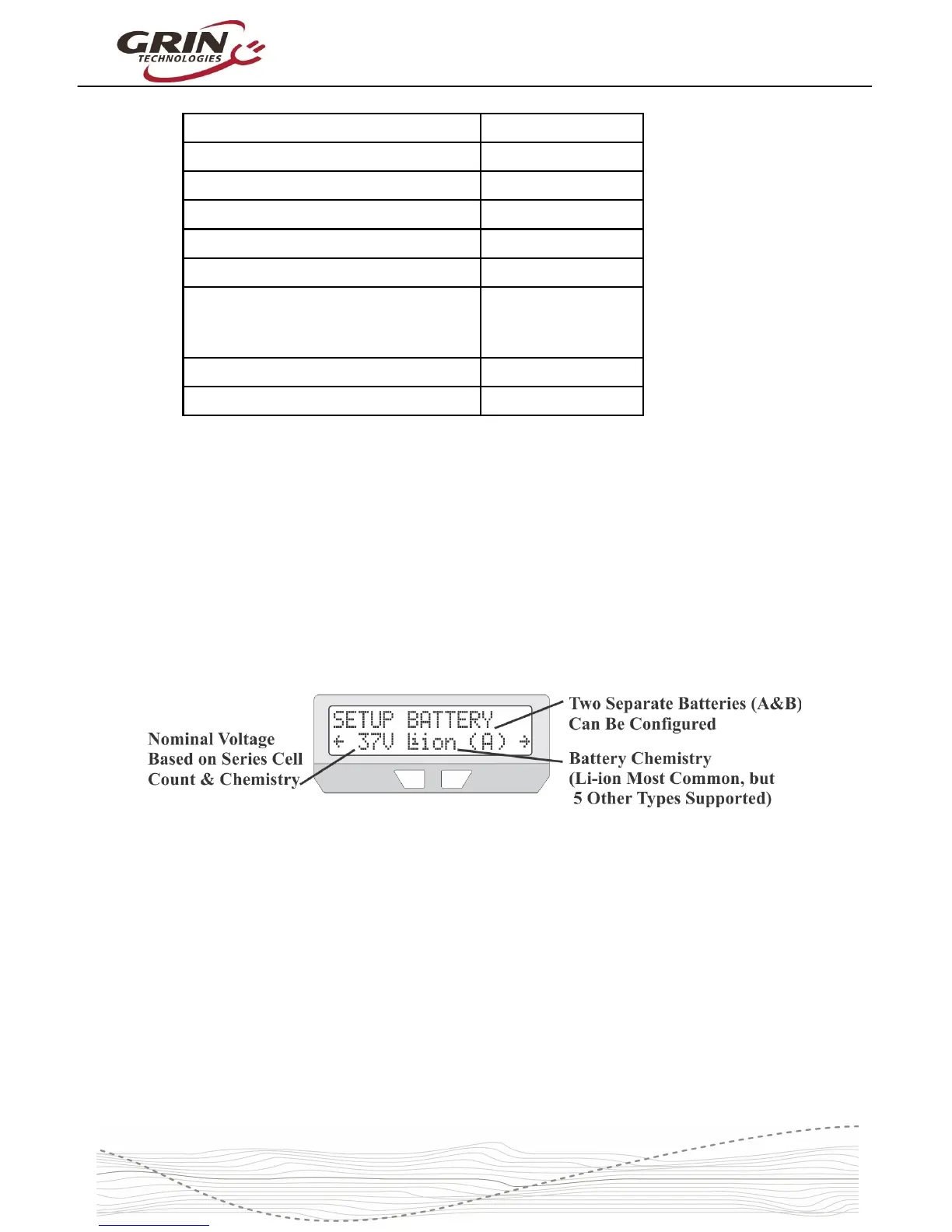

Table 4: #Pole Settings for Common Motor System
CA3-DP with Spoke Magnet 1 Pole
6 Poles
Crystalyte 400 Series 8 Poles
Crystalyte 5000 Series 12 Poles
TDCM 5 Spd IGH Hub 16 Poles
Crystalyte NSM, SAW 20 Poles
Crystalyte ‘H’, Crown, Nine
Continent, MXUS, QS, and
23 Poles
9C 212mm DD motors 26 Poles
Golden Magic Pie 28 Poles
For CA3-DPS devices using an external spoke magnet and sensor, it would be
set to the number of magnets on your wheel (typically 1, but there are some
benefits to having multiple spoke magnets)
6.3 Setting Up the Battery
The next setup menu item is the battery configuration, which is used by the Cycle
Analyst to generate an accurate State-Of-Charge (SOC) indicator. The setting
information is summarized in the Battery setup menu.
The three most important parameters to enter for an accurate SOC indicator are
the cell chemistry, series cell count, and approximate capacity. Additional options
let you choose if you want to display average cell voltage rather than pack
voltage on the main screen, whether to activate a low voltage rollback feature,
and whether to activate two preconfigured batteries (A&B) rather than just one.
See the Presets section 6.14 for more information on this.
6.3.1 Set Your Chemistry
There are 6 options for the battery chemistry:
14
