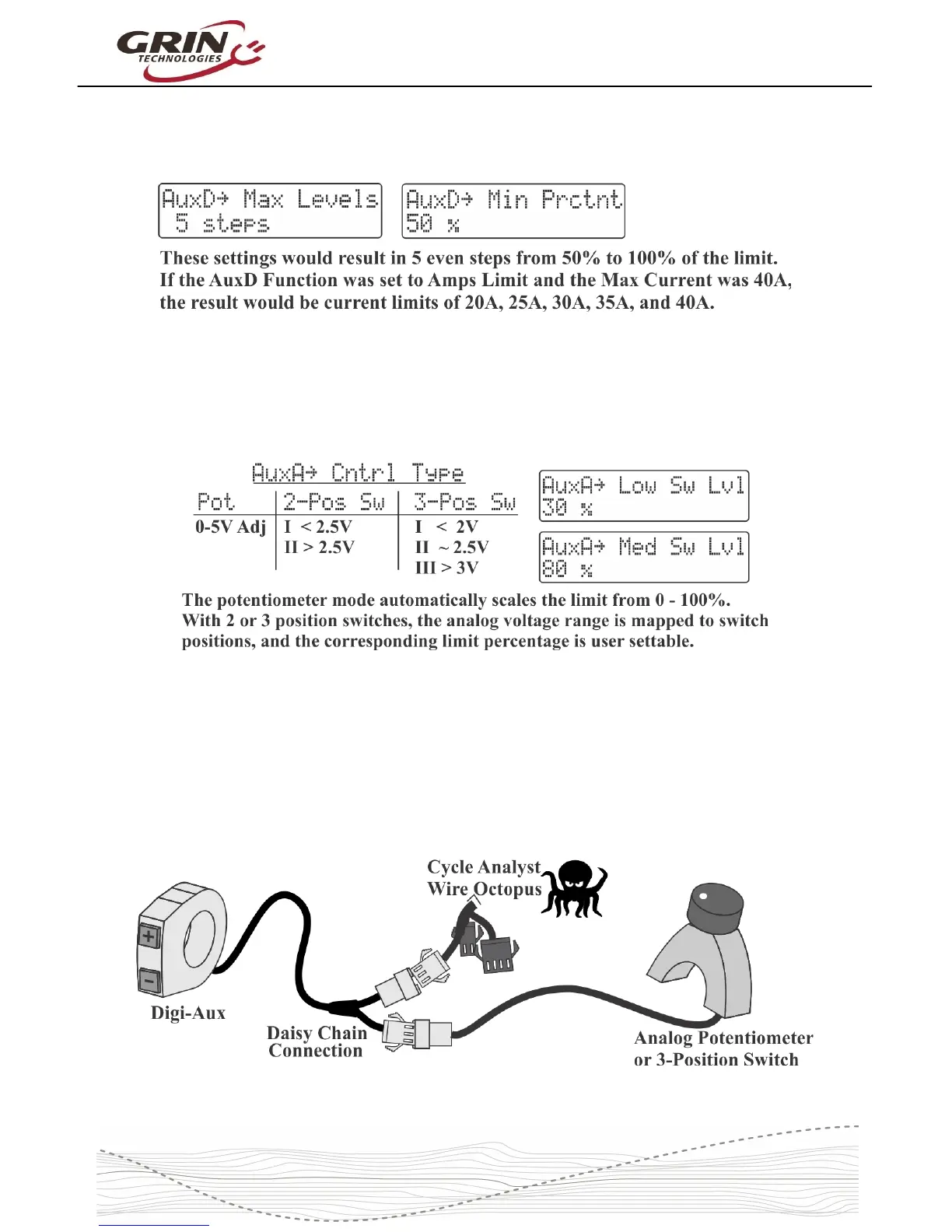

With the Digital Aux input, you can set the number steps as well as the
percentage corresponding to the first step in case you want the lowest setting to
be above zero.
With the Analog Aux input, the adjustment parameters depend on whether the
control is a 2 or 3 position switch, or a continuously adjustable potentiometer.
The CA3 assumes that each switch position produces a voltage in the following
range.
The Digital Aux buttons feature both male and female 3-pin connectors which
allow daisy chaining an analog potentiometer or a 3 position switch at the same
time as the digital buttons. This provides the ability to independently control two
different limit settings from the handlebars, one with the digital control and
another with the analog control.
