Cycle Analyst V3.1 User Manual
Rev 1.0

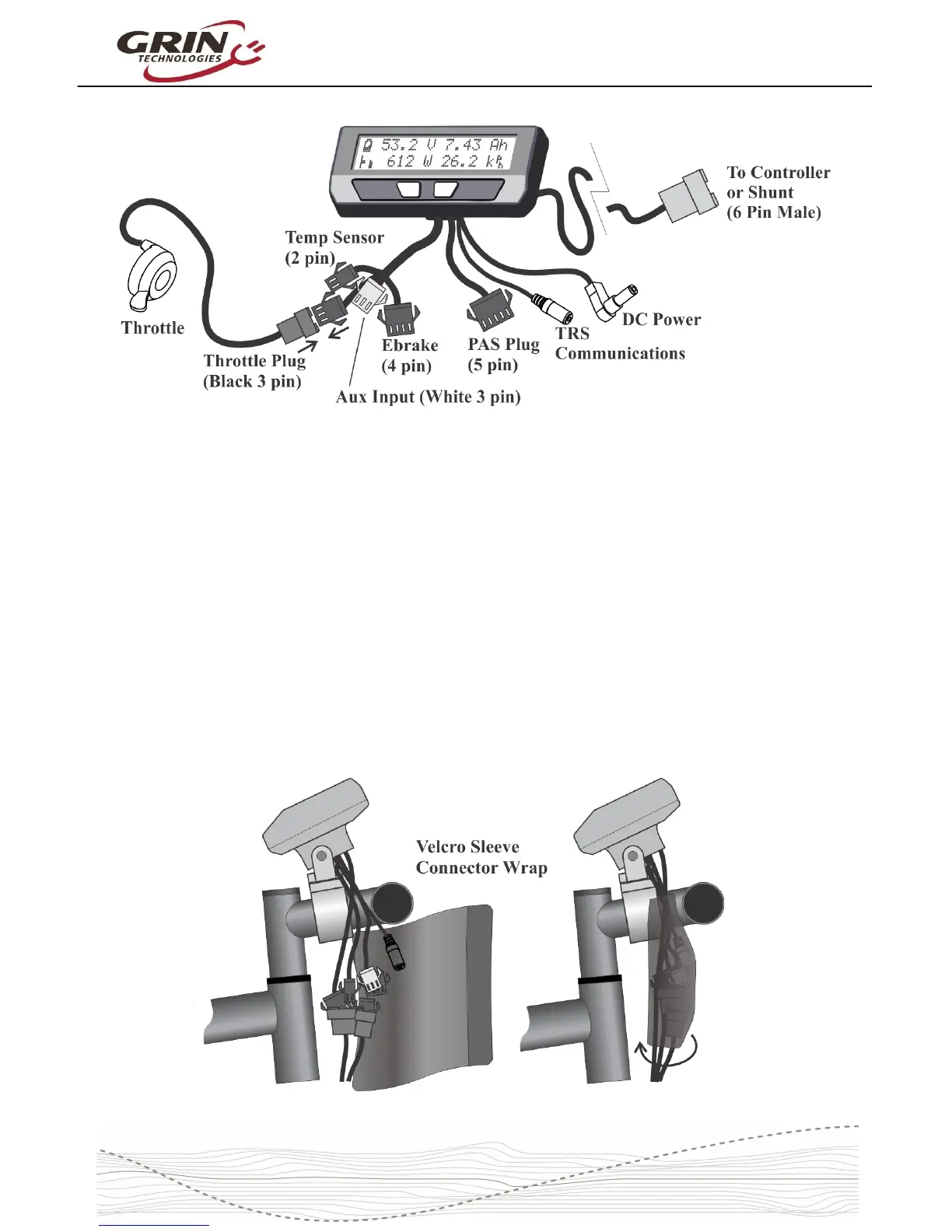

There are two additional short cables coming out of the Cycle Analyst. One is an
1/8” TRS communications jack that can be used for data logging or connecting to
a computer for firmware updates and setting changes. The other is a DC Power
cable that has full battery voltage for powering front ebike lights, DC-DC
converters, and other peripherals that can run directly off pack voltage.
This DC power tap is fused internally and is limited to 1 amp. It is shipped with a
rubber protective cap and you should leave this cap in place if you are not using
the connector, as there is full battery voltage present on the exposed connector
pin.
We include a stretchy fabric Velcro sleeve that lets you cover up the connector
assembly for a clean finished look on the front of your bike once everything has
been plugged in. This sleeve also provides a convenient place for bundling up
any excess cable length.
