Grizzly G0513 SERIES User Manual

-100-

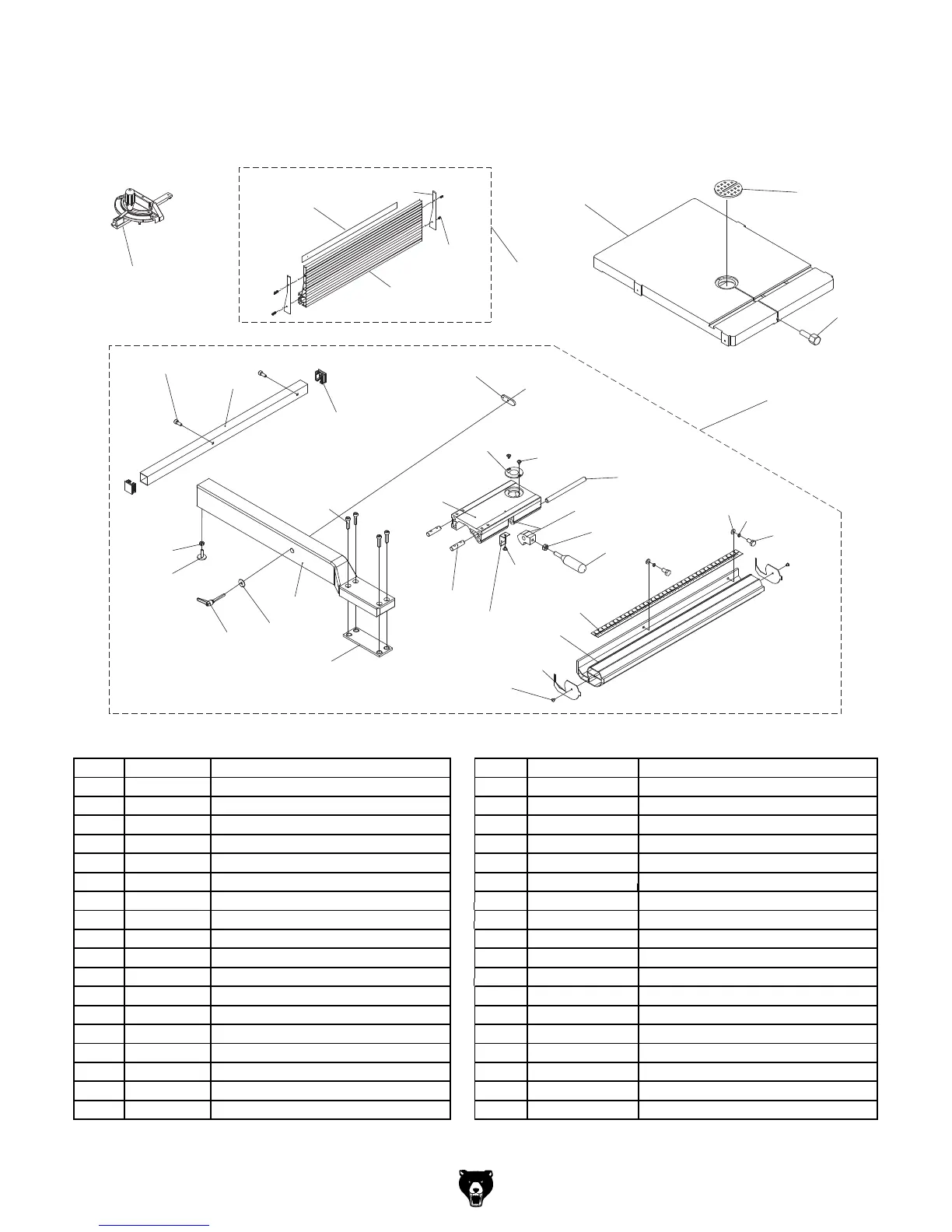

G0513 Series Bandsaws
G0513X2 & G0513X2F Fence Assembly &
Table
121-20
121-17
121-21
121-1
121-19
121-24
121-14
121-7
121-29
121-25
121-23
121-2
121-13
121-15
121-11
121-16
121
121-27
121-9
121-26
121-3
121-18
126
127
128
121-10
121-22
121-8
121-6
121-5
121-4
121-12
350
350-1
350-2
350-4
350-3
152
REF PART # DESCRIPTION REF PART # DESCRIPTION
121 H7588 FENCE ASSEMBLY 121-19 PH7587019 PLUG
121-1 PH7588001 FRONT RAIL 640MM 121-20 PHTEK3M TAP SCREW M3.5 X 8
121-2 PH7587002 ADJUST BASE 121-21 PH7587021 FENCE SCALE 18-1/2"
121-3 PH7587003 FIXED SHAFT 121-22 PN01M HEX NUT M6-1
121-4 PH7587004 SHAFT 121-23 PLW03M LOCK WASHER 6MM
121-5 PH7587005 SPRING PIECE 121-24 PCAP01M CAP SCREW M6-1 X 16
121-6 PH7528004 LOCK KNOB M8-1.25 X 44 121-25 PB08M HEX BOLT M6-1 X 20
121-7 PH7588007 CAST IRON FENCE 590MM 121-26 PFB13M FLANGE BOLT M4-.7 X 8
121-8 PW01M FLAT WASHER 8MM 121-27 PW03M FLAT WASHER 6MM
121-9 PH7587009 FENCE HANDLE M8-1.25 X 22 121-29 PH7587029 SPACER PLATE
121-10 PH7587010 RAIL PAD 126 P0513X126 TABLE 17" X 24"
121-11 PH7587011 CONVEX WINDOW 127 T24384 TABLE INSERT
121-12 PCAP69M CAP SCREW M6-1 X 24 128 P0555100 TABLE PIN
121-13 PH7587013 LOCK BLOCK 152 P0513173 MITER GAUGE ASSY
121-14 PH7588014 REAR RAIL 640MM 350 P0513X2F350 RESAW FENCE ASSEMBLY
121-15 PN03M HEX NUT M8-1.25 350-1 P0513X2F350-1 ALUMINUM RESAW FENCE 590MM
121-16 PFS04M FLANGE SCREW M4-.7 X 6 350-2 P0636X122 TAP SCREW 3.5 X 8
121-17 PH7587017 GUARD PIECE 350-3 P0513X2B156-3 FENCE END PLATE 148 X 22 X 1
121-18 PH7528002 MOVING PLATE 350-4 P0513X2F350-4 RESAW FENCE SCALE
