-12-
G0513 Series Bandsaws

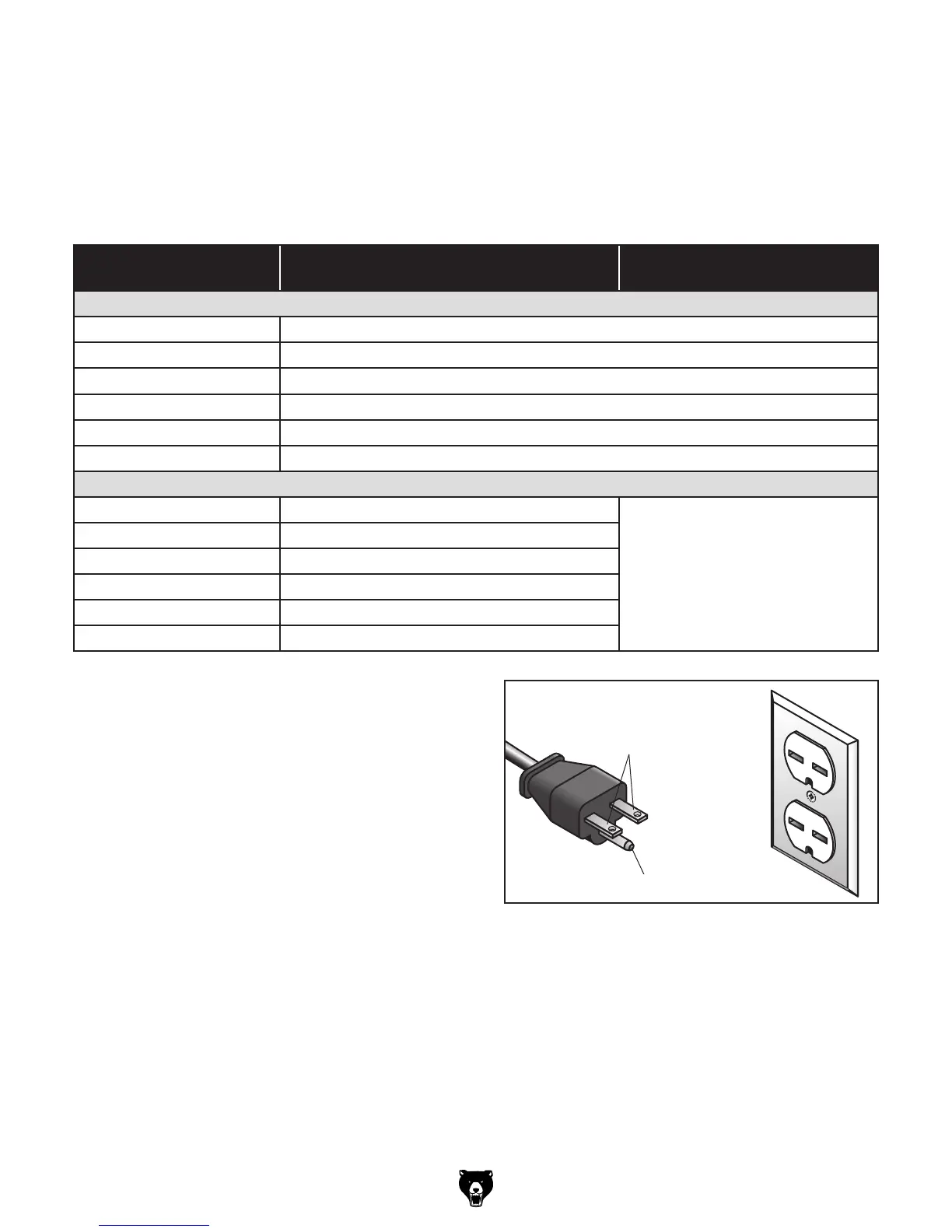

Figure 5. Typical 6-15 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
Grounding Requirements
This machine MUST be grounded. In the event
of certain malfunctions or breakdowns, grounding
reduces the risk of electric shock by providing a
path of least resistance for electric current.
Grounding Requirements for 220V: The plug
specified under “Circuit Requirements for 220V
Operation” on this page has a grounding prong
that must be attached to the equipment-grounding
wire inside the specified power cord. The plug
must only be inserted into a matching recep-
tacle (see Figure 5) that is properly installed and
grounded in accordance with all local codes and
ordinances.
Model Number
G0513, G0513P, G0513ANV, G0513X2,
G0513X2F
G0513X2B & G0513X2BF
Circuit Requirements For 220V Operation:
Nominal Voltage 220V/240V
Cycle 60 Hz
Phase Single-Phase
Power Supply Circuit 15 Amps
Plug/Receptacle NEMA 6-15
Power Cord “S”-Type, 3-Wire, 14 AWG, 300 VAC
Circuit Requirements For 110V Operation:
Nominal Voltage 110V/120V
N/A
Cycle 60 Hz
Phase Single-Phase
Power Supply Circuit 30 Amps
Plug/Receptacle NEMA L5-30
Power Cord “S”-Type, 3-Wire, 12 AWG, 300 VAC
Circuit Requirements
These machines are prewired to operate on a 220V power supply circuit that has a verified ground and meet
the 220V operation requirements listed below.
Models G0513, G0513P, G0513ANV, G0513X2, and G0513X2F can be converted to operate on a 110V
power supply (refer to Voltage Conversion instructions beginning on Page 69) that has a verified ground
and meet the 220V operation requirements listed below.
