G0513 Series Bandsaws
-5-
Rear Controls
F. Wheel Cover Lock Knobs: Secure the
wheel covers.
G. Quick-Release Blade Tension Lever:
Adjusts blade tension for quick blade chang-
es.
H. Blade Tracking Knob and Lock Lever:
Moves and locks upper wheel tilt for blade
tracking.
I. Table Tilt Controls: Adjusts table tilt and
locks the table in place.
J. Magnetic Switch: Provides thermal overload
protection for the motor.
K. Lower Wheel Adjustment Hub: Used when
adjusting coplanarity of the wheels.
L. Guide Post Handwheel and Lock Knob:
Quickly moves the upper guide post to the
desired height; locks setting.

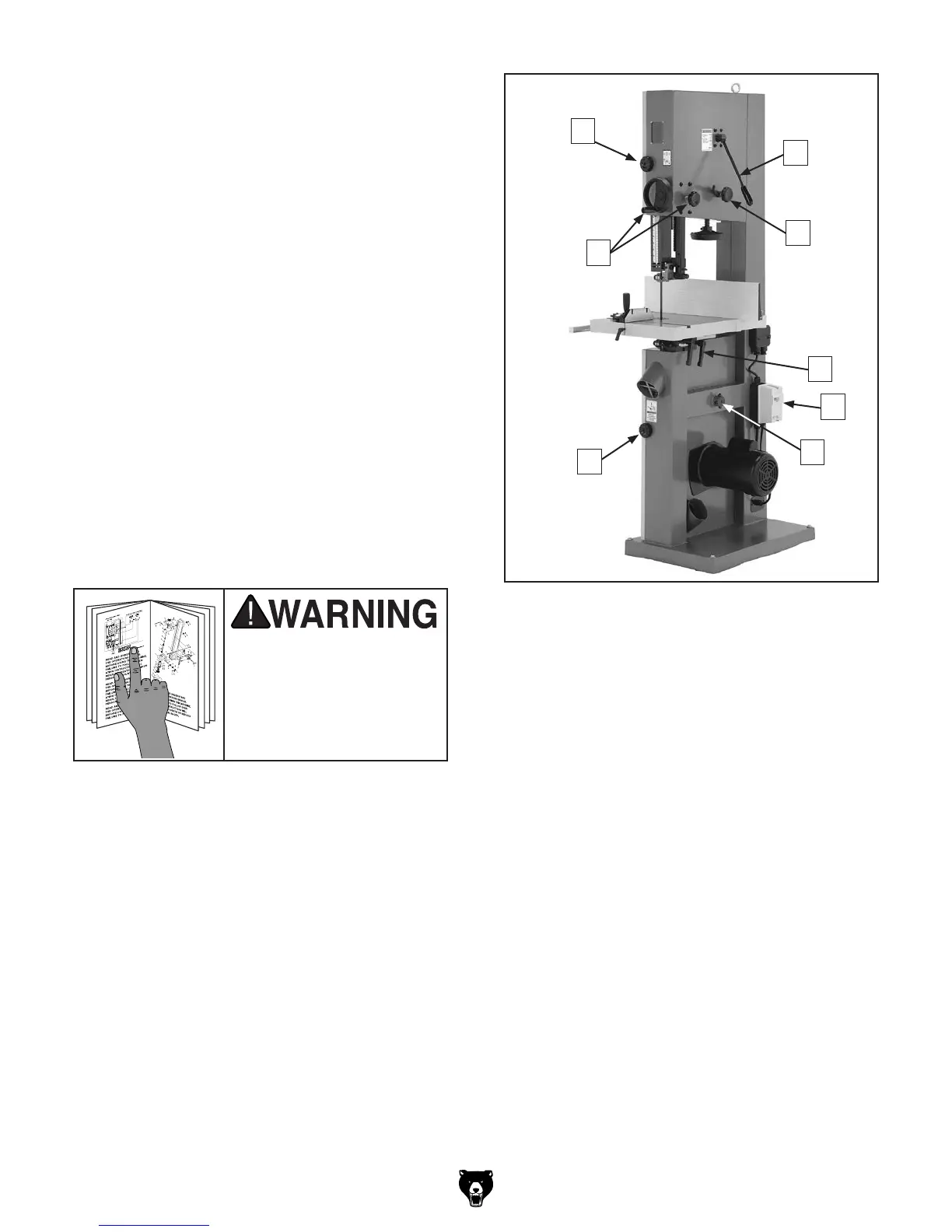

Figure 4. Rear controls
(G0513X2B shown).
G
H
F
I
J
K
F
L
To reduce the risk of
serious injury when using
this machine, read and
understand this entire
manual before beginning
any operations.
