Grizzly G0513 SERIES User Manual

G0513 Series Bandsaws
-101-

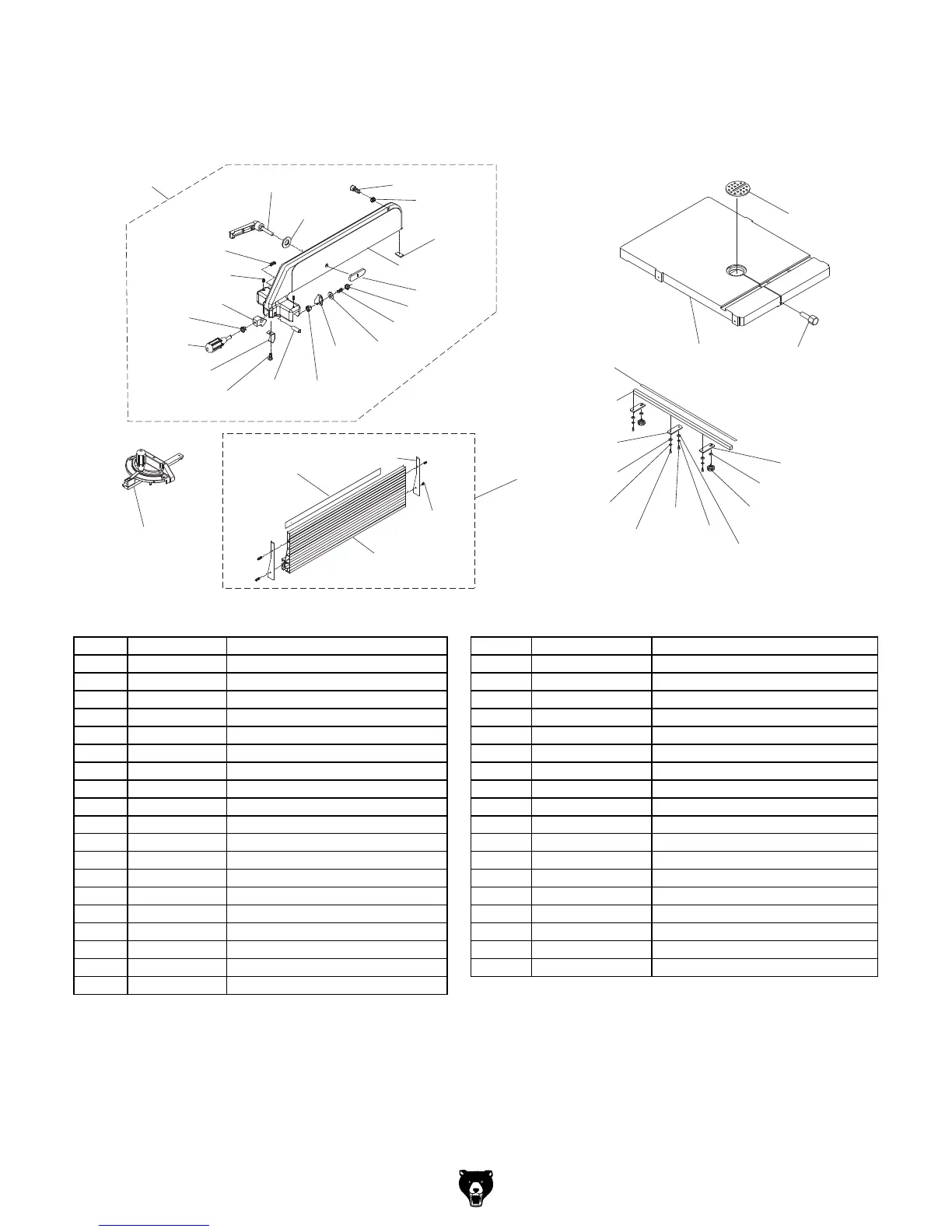

G0513X2B & G0513X2BF Fence Assembly &
Table
157
157-1
157-12
157-10
157-11
157-14V2
157-15
157-16
157-16
157-17V2
157-18
157-13
157-13
157-2
157-3V2
157-4
157-5
157-6
157-7
157-8
157-9
163
165V2
164
162
161
161-1
160
158
158
159
153
154
126
127
128
152
156
156-1
156-2
156-4
156-3
REF PART # DESCRIPTION REF PART # DESCRIPTION
126 P0513X2B126 TABLE 17" X 24" 157-9 P0513X2B157-9 SHAFT
127 T24384 TABLE INSERT 157-10 P0513X2B157-10 PLASTIC SET SCREW M7-1 X 10
128 P0513X128 TABLE PIN 157-11 P0513X2B157-11 NYLON PAD
152 P0513173 MITER GAUGE ASSY 157-12 PSS14M SET SCREW M8-1.25 X 12
153 P0513X2B153 KNOB SCREW M8-1.25 X 20 157-13 PN03M HEX NUT M8-1.25
154 P0513X2B154 OUTER RAIL PLATE 157-14V2 PB09M HEX BOLT M8-1.25 X 20
156 P0513X2B156 RESAW FENCE ASSEMBLY 157-15 PN03M HEX NUT M8-1.25
156-1 P0513X2B156-1 ALUMINUM RESAW FENCE 590MM 157-16 PW01M FLAT WASHER 8MM
156-2 P0636X122 TAP SCREW 3.5 X 8 157-17V2 P0513X2B157-17V2 LOCK HANDLE M8-1.25 X 45 V2.05.11
156-3 P0513X2B156-3 FENCE END PLATE 148 X 22 X 1 157-18 P0513X2B157-18 MOVING PLATE
156-4 P0513X2B156-4 RESAW FENCE SCALE 158 PW01M FLAT WASHER 8MM
157 P0513X2B157 FENCE ASSEMBLY 159 PLW04M LOCK WASHER 8MM
157-1 P0513X2B157-1 FENCE 160 PCAP14M CAP SCREW M8-1.25 X 20
157-2 P0513X2B157-2 POINTER 161 P0513X2B161 FRONT RAIL
157-3V2 PSS21M SET SCREW M8-1.25 X 25 161-1 P0513X2B161-1 FENCE SCALE
157-4 P0513X2B157-4 SPRING PIECE 162 P0513X2B162 INNER RAIL PLATE
157-5 PFS17M FLANGE SCREW M4-.7 X 8 163 PW03M FLAT WASHER 6MM
157-6 P0513X2B157-6 PIVOT BLOCK 164 PLW03M LOCK WASHER 6MM
157-7 PN03M HEX NUT M8-1.25 165V2 PCAP02M CAP SCREW M6-1 X 20
157-8 P0513X2B157-8 FENCE LOCK HANDLE
