Grizzly G0513 SERIES User Manual

-16-
G0513 Series Bandsaws
Inventory
The following is a description of the main compo-
nents shipped with your machine. Lay the compo-
nents out to inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
G0513, G0513P, & G0513ANV
Shipping Inventory (Figures 7 & 8): Qty
A. Bandsaw (not shown) ................................. 1
B. Table ........................................................... 1
C. Miter Gauge ................................................ 1
D. Rear Rail .................................................... 1
E. Front Rail ................................................... 1
F. Fence Assembly ......................................... 1
G. Guide Post Handwheel............................... 1
Hardware & Tools (Not Shown) Qty
• Eye Bolt M10-1.5 (May Be Installed) .......... 1
• Flat Washers 8mm (Table) ......................... 4
• Lock Washers 8mm (Table) ....................... 4
• Hex Bolts M8-1.25 x 16 (Table) .................. 4
• Hex Bolt M8-1.25 x 90 (Positive Stop) ........ 1
• Hex Nuts M8-1.25 (Positive Stop, Fence)... 2
• Cap Screws M6-1 x 16 (Fence) .................. 2
• Hex Bolts M6-1 x 20 (Fence) ...................... 2
• Lock Washers 6mm (Fence) ...................... 2
• Flat Washers 6mm (Fence) ........................ 2
• Hex Nut M6-1 (Fence) ................................ 1
• Table Pin..................................................... 1
• Table Insert ................................................. 1
• Fence Handle M8-1.25 x 22 (Fence) .......... 1
• Rail Pad M6-1 x 18 (Fence) ........................ 1
• Hex Wrench 5mm, 8mm....................1 Each
• Open End Wrench 10 x 13mm ................... 1

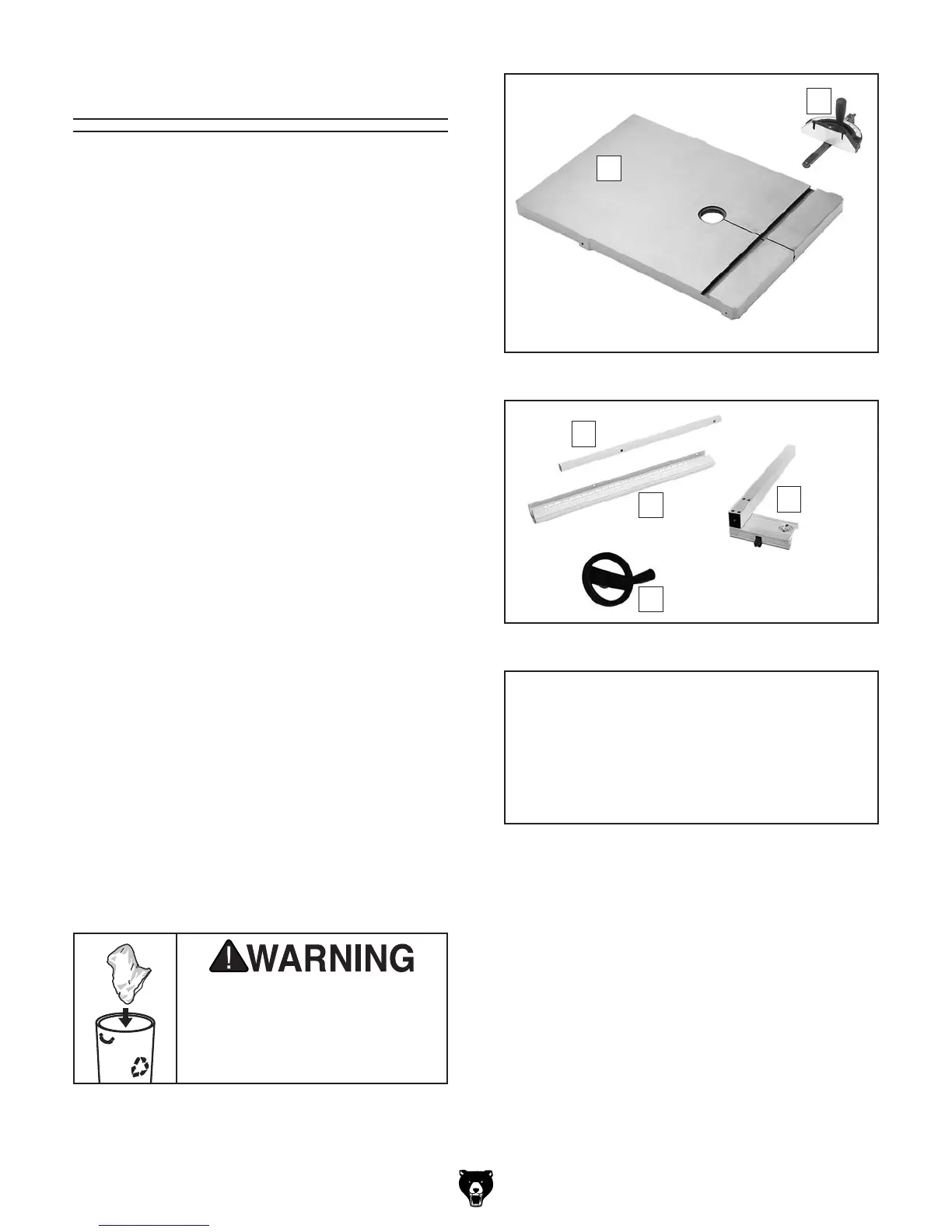

Figure 8. Other bandsaw components.
D
E
F
G
Figure 7. Table and miter gauge.
C
B
NOTICE
If you cannot find an item on this list, care-
fully check the machine and the packaging
materials. Some of these items may be pre-
installed for shipping or become misplaced
during unpacking.
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
