G0513 Series Bandsaws
-21-
The table is heavy and requires two people
to lift it onto the trunnions. Remove the saw
blade to make table installation easier.
8. Models G0513, G0513P and G0513ANV:
Secure the table to the trunnions, as shown
in Figure 19 with the (4) M8-1.25 x 16 hex
bolts, 8mm lock washers, and 8mm flat wash-
ers.
Models G0513X2, G0513X2B, G0513X2BF,
and G0513X2F: Secure the table to the trun-
nions with the (4) M8-1.25 x 25 hex bolts,
8mm lock washers, and 8mm flat washers.
9. Replace the saw blade.

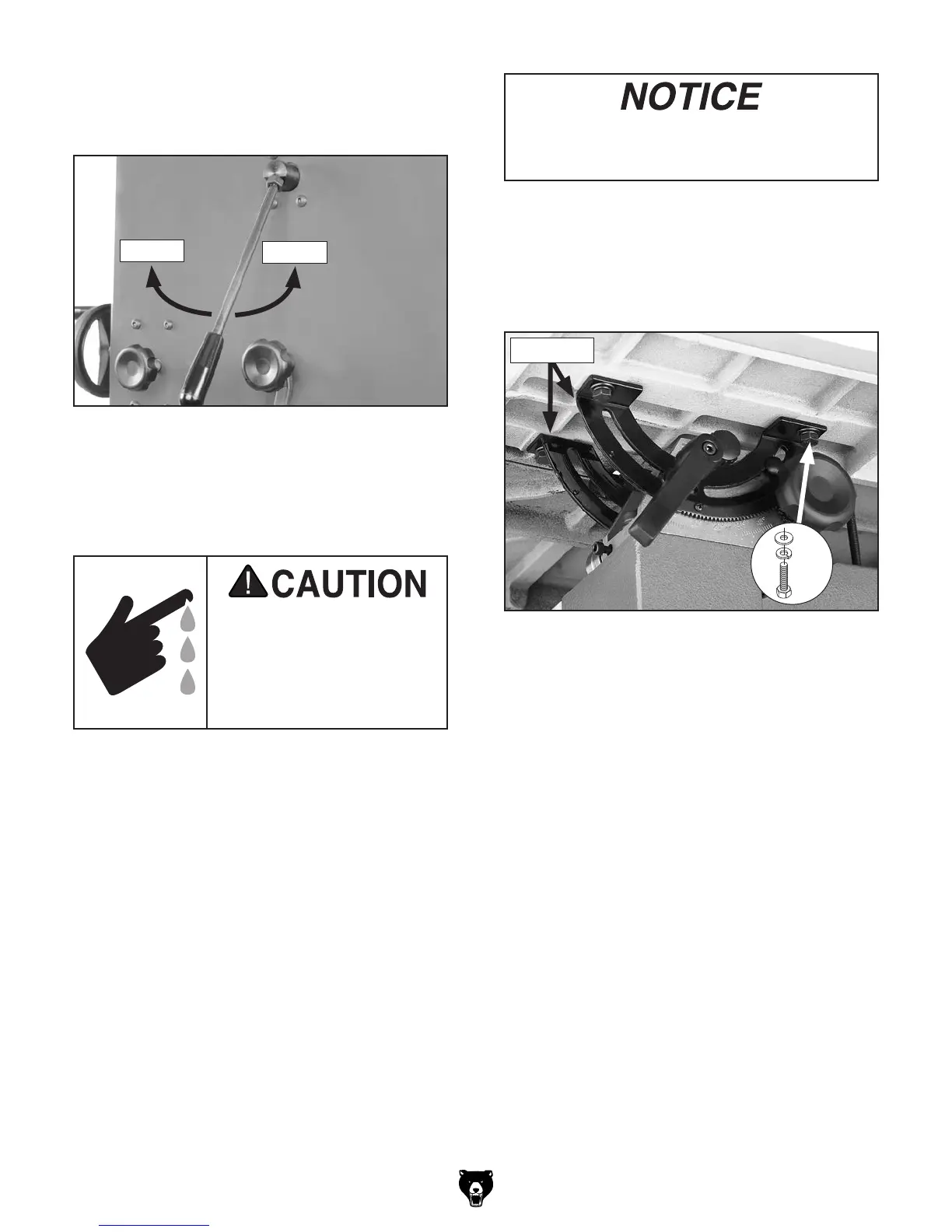

4. Loosen blade tension by rotating the quick-
release tension lever clockwise, as shown in
Figure 18.
Figure 18. Quick-release tension lever.
Tighten
Loosen
5. Adjust the upper and lower blade guides
away from the blade. Refer to Adjusting
Blade Guides beginning on Page 33 for
more details.
All saw blades are danger-
ous and may cause per-
sonal injury. To reduce the
risk of being injured, wear
leather gloves when han-
dling saw blades.
6. Remove the saw blade (refer to Blade
Changes on Page 48 for detailed instruc-
tions).
7. With the help of another person, lift the table
onto the trunnions.
Figure 19. Mounting the table.
Trunnions
x 4
To Next Page
