G0555LX (Mfg. Since 3/13)
-13-
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Inventory (see Figure 6) Qty
A. Table .......................................................... 1
B. Saw Blade 93
1
⁄2" x
3
⁄8" x 6 TPI ................... 1
C. Bandsaw Body ........................................... 2
D. Trunnion Base ............................................ 1
E. Front Fence Rail ......................................... 1
F. Rear Fence Rail ......................................... 1
G. Miter Gauge Assembly ............................... 1
H. Fence Assembly ......................................... 1
I. Trunnion Lock Knobs.................................. 2
J. Upper Stand Braces ................................... 2
K. Stand Top ................................................... 1
L. Stand Sides ................................................ 2
M. Lower Stand Braces ................................... 2
N. Hardware Bag ............................................ 1
—Table Insert ............................................. 1
—Hex Bolts
5
⁄16"-18 x 1
1
⁄2" (Bandsaw) ........ 4
—Hex Nuts
5
⁄16"-18 (Bandsaw) ................... 4
—Lock Washers
5
⁄16" (Bandsaw) ................ 4
—Flat Washers
5
⁄16" (Bandsaw) .................. 8
—Cap Screws
1
⁄4"-20 x
5
⁄8" (Fence) ............ 2
—Hex Bolts
1
⁄4"-20 x
3
⁄4" (Fence) ................ 2
—Flat Washers
1
⁄4" (Fence) ........................ 2
—Hex Bolts
1
⁄4"-20 x
5
⁄8" (Stand) .............. 16
—Flat Washers
1
⁄4" (Stand)....................... 16
—Flange Nuts (Stand).............................. 16
—Stand Feet
3
⁄8"-16 x 2" (Stand) ................ 4
—Carriage Bolts
5
⁄16"-18 x
5
⁄8" (Stand) ........ 8
—Flange Nuts
5
⁄16"-18 (Stand) .................... 8
—Hex Nuts
3
⁄8"-16 (Stand Feet) .................. 8
—Flat Washer
3
⁄8" (Stand Feet) .................. 8
—Combo Wrench 10 x 12mm .................... 1
—Hex Wrench 5mm ................................... 1
D
E
C
F
G
H
I
J

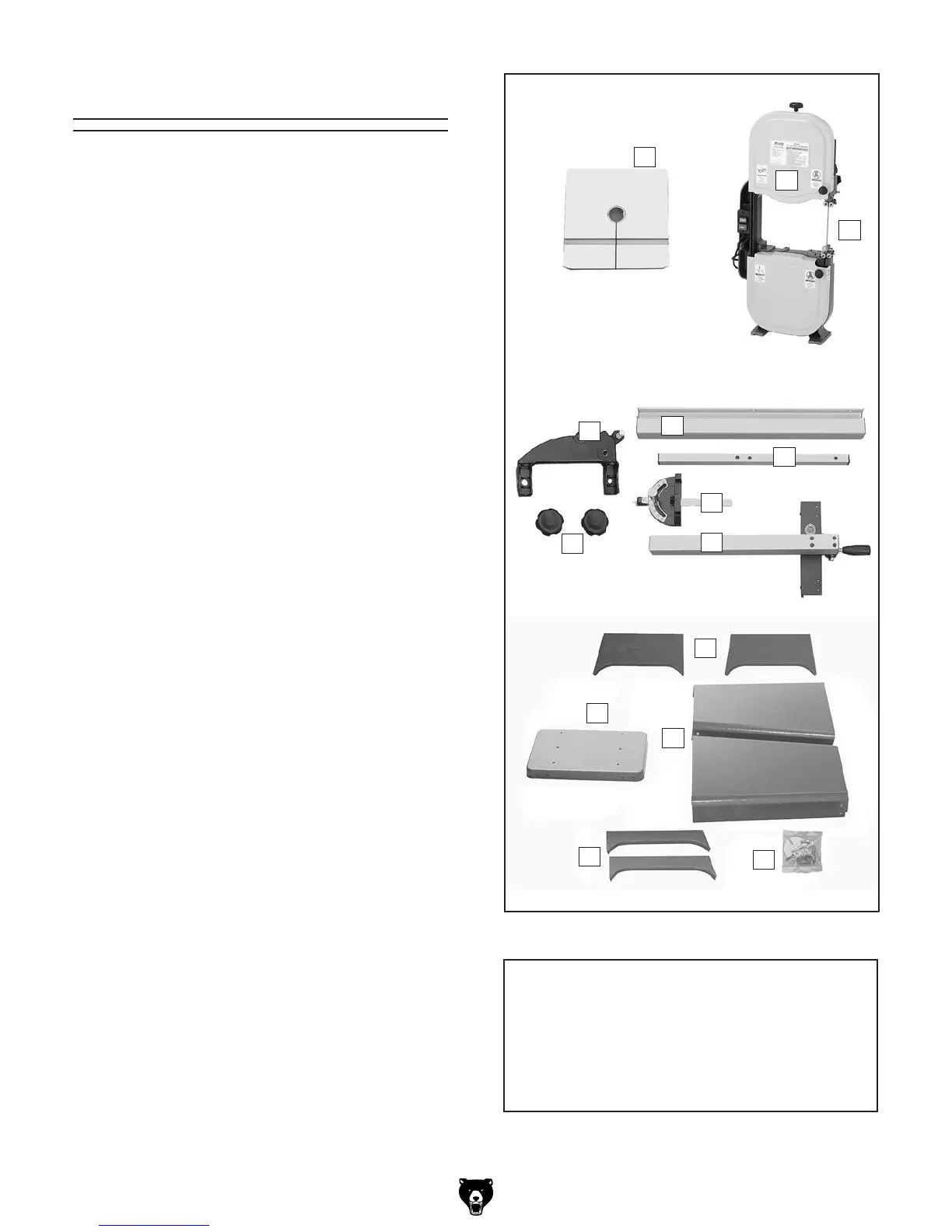

Figure 6. Main components inventory.
B
K
L
M
N
A
To Next Page
