Grizzly G0555LX User Manual

-16-
G0555LX (Mfg. Since 3/13)
Assembly
Some sheet metal parts
may have sharp edges
that can cause minor cuts.
Please use care while han-
dling them.

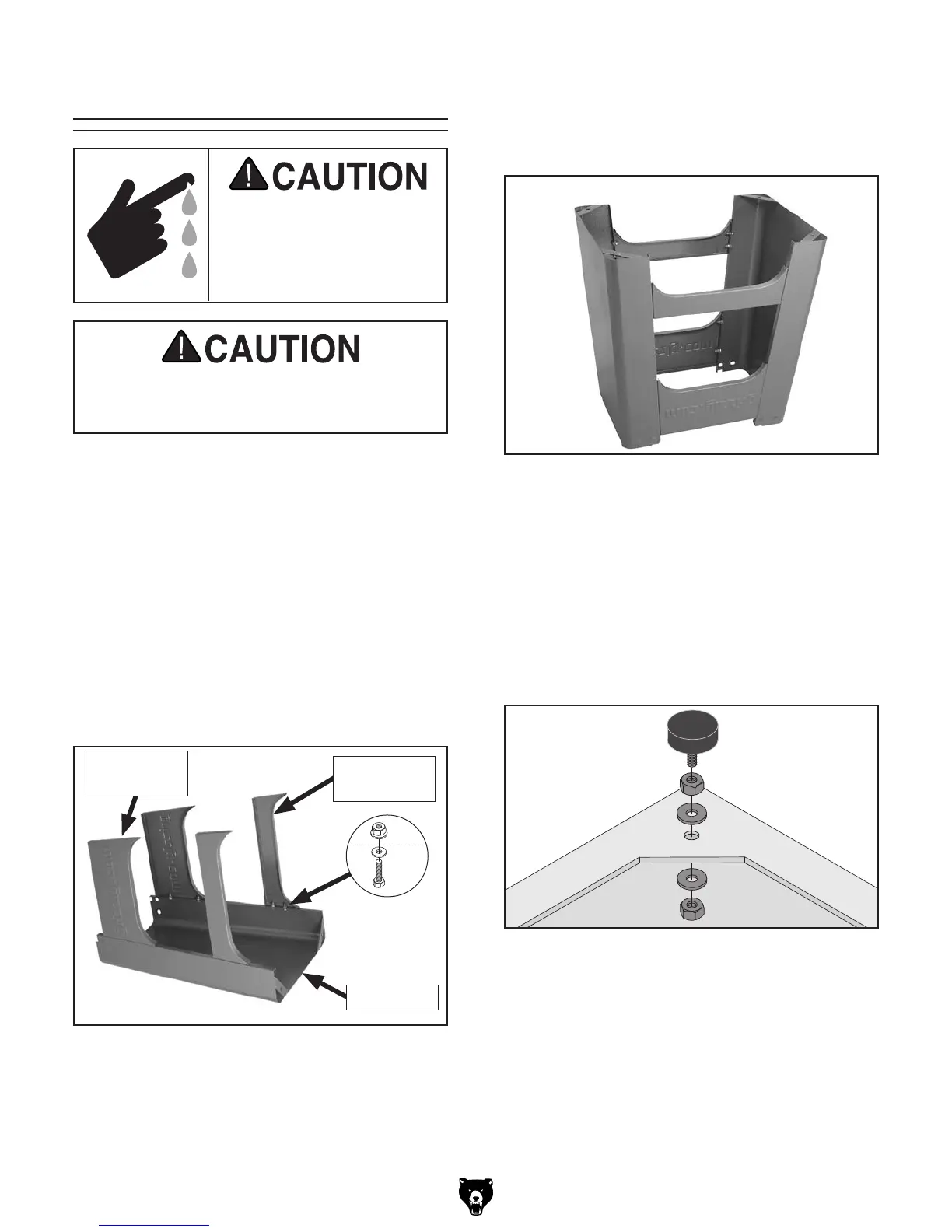

To assemble the bandsaw:
1. Lay one stand side flat on a piece of card-
board to prevent scratching the paint, then
attach the upper and lower stand braces
to one side, as shown in Figure 8, with (8)
1
⁄4"-20 x
5
⁄8" hex bolts, (8)
1
⁄4" flat washers, and
(8)
1
⁄4"-20 flange nuts.
Note: Only hand-tighten the stand fasteners
during these initial steps. Once the stand is
completely assembled you will be instructed
to fully tighten all fasteners.
Figure 8. Upper and lower stand braces
attached to the stand side.
Upper
Stand Brace
Stand Side
Lower
Stand Brace
x 8
2. Attach the remaining stand side to the assem-
bly, as shown in Figure 9, with (8)
1
⁄4"-20 x
5
⁄8"
hex bolts, (8)
1
⁄4" flat washers, and (8)
1
⁄4"-20
flange nuts.
Figure 9. Second stand side attached.
3. Install the stand feet, as shown in Figure 10,
in the bottom of the stand assembly, using
a
3
⁄8"-16 x 2" stand foot, (2)
3
⁄8"-16 hex nuts
and (2)
3
⁄8" flat washers on each foot in the
sequence shown.
Note: Adjust the feet so that they are approxi-
mately the same height—this will make level-
ing the stand easier in a later step.
The bandsaw is heavy and awkward to lift
onto the stand. Get assistance from another
person when lifting.
Figure 10. Stand foot installed (1 of 4).
Foot
Hex Nut
Hex Nut
Flat
Washer
Flat
Washer
