G0555LX (Mfg. Since 3/13)
-55-
ON
OFF
Neutral
Hot
Ground
110 VAC
5-15 Plug
(Pre-wired)
Motor
110V
Start/Stop Switch
Ground
Ground
Start Capacitor
300MFD 125VAC

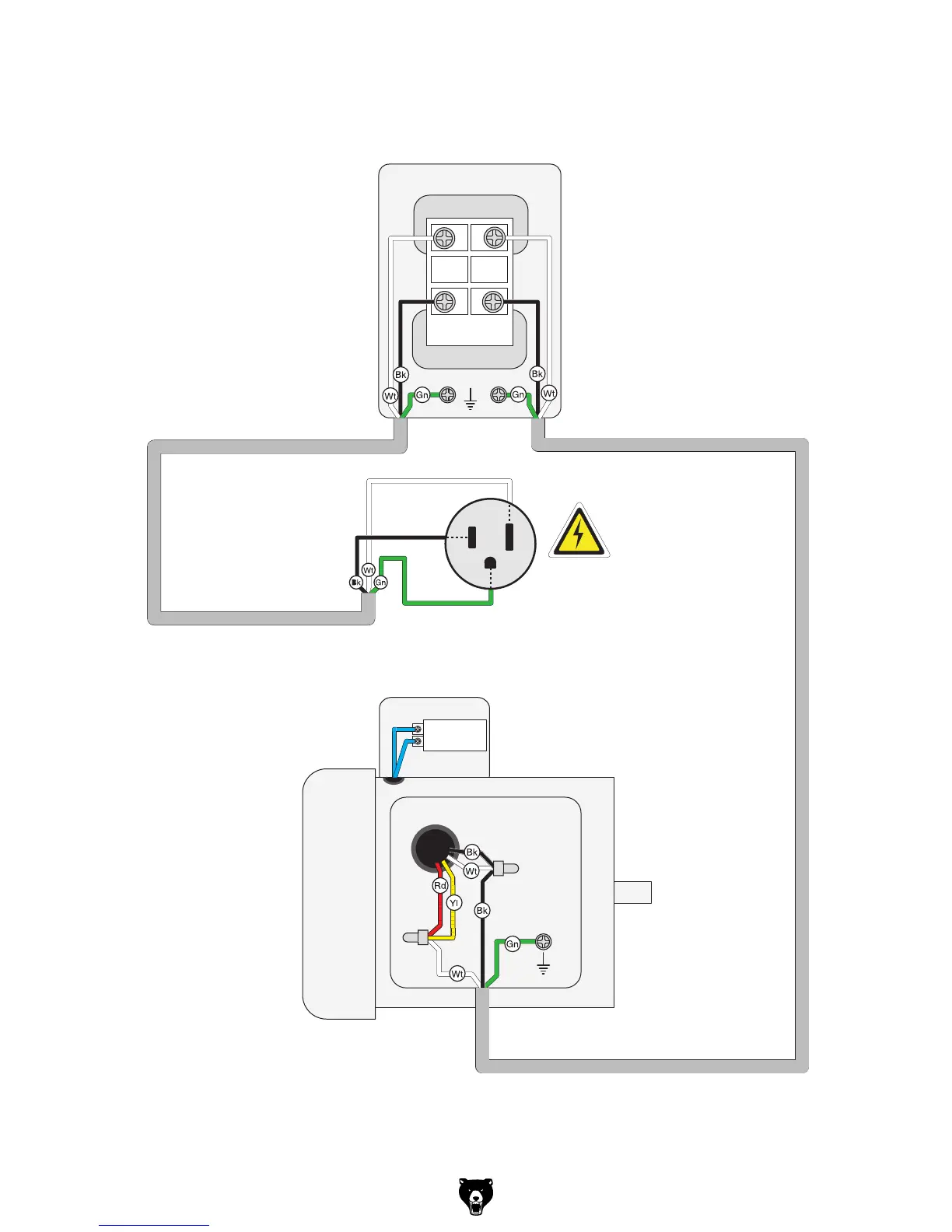

110V (Prewired) Wiring Diagram
Motor at 110V-120V (prewired)
3 RED
1 BLACK
2 GRAY
4 YELLOW
ON
Neutral
Hot
Ground
Ground
Work Lamp
(40 Watt Maximum)
Start
Capacitor
200 MFD
125 VAC
110-120 VAC
5-15 Plug
Run
Capacitor
30 MFD
250 VAC
Lamp Switch
ON/OFF Switch
(Switches Viewed from Behind)
