Grizzly G0555LX User Manual

-46-
G0555LX (Mfg. Since 3/13)
V-Belt Tension
To ensure optimum power transmission from the
motor to the blade, the V-belt must be in good
condition and operate under proper tension.
V-belt tension should be checked at least every
month—more often if the bandsaw is used daily. If
the belt shows signs of cracks, fraying, and exces-
sive wear, replace it as instructed in Replacing
V-Belt on Page 47.
Checking V-Belt Tension
1. DISCONNECT BANDSAW FROM POWER!
2. Open the lower wheel cover.
3. Check V-Belt deflection. The V-belt is prop-
erly tensioned if there is approximately
1
⁄4"
deflection. Deflection is checked by push-
ing the V-belt with moderate pressure, as
shown in Figure 64, and noting how much it
moves.
— If the V-belt is not properly tensioned,
perform the following Tensioning V-Belt
procedure.
Pulley
Deflection
Pulley

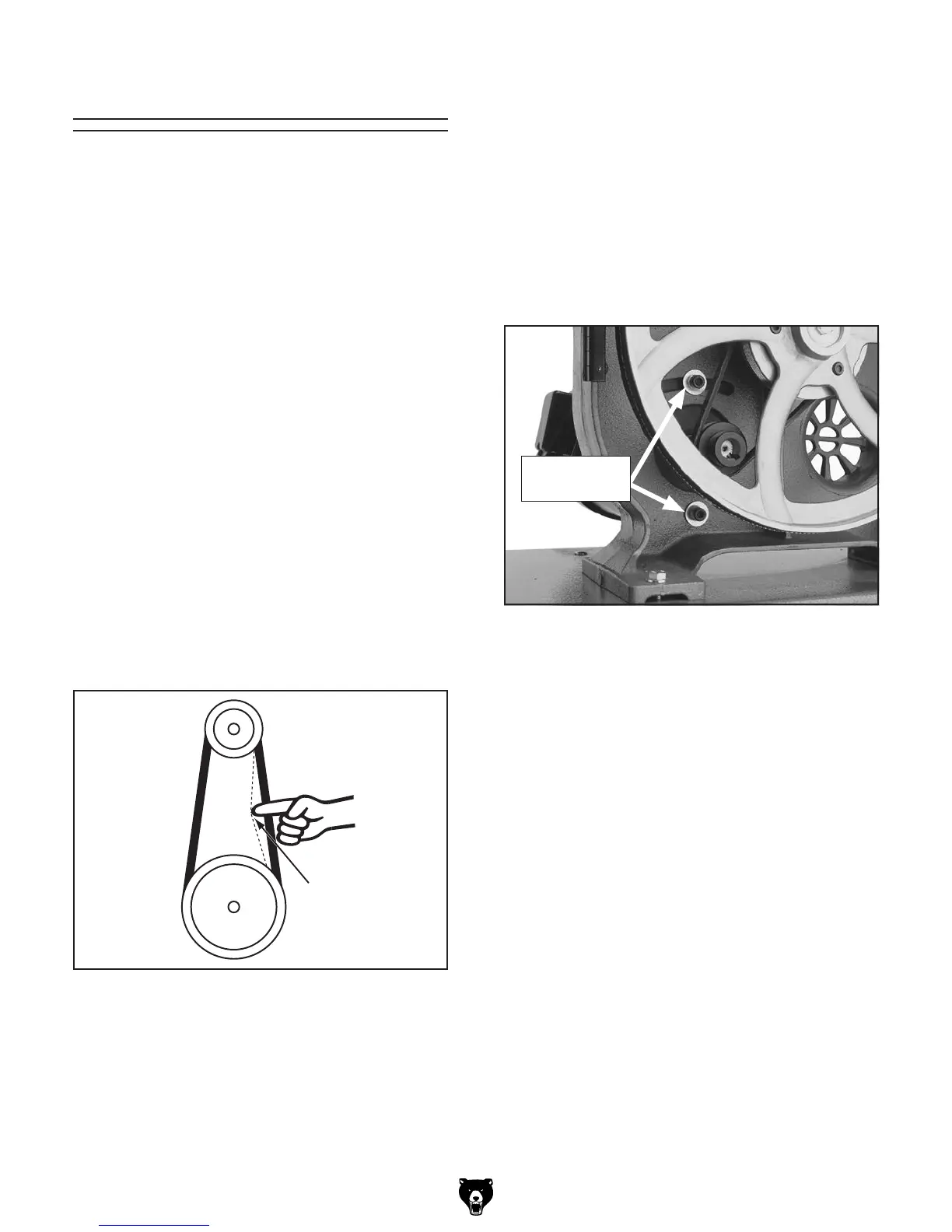

Figure 64. Checking the V-belt tension.
Approximately
1
⁄4"
Tensioning V-Belt
Tool Needed Qty
Hex Wrench 6mm .............................................. 1
To properly tension the V-belt:
1. DISCONNECT BANDSAW FROM POWER!
2. Open the lower wheel cover, and loosen
the motor adjustment and hinge cap screws
shown in Figure 65.
3. Push the motor to the left (as viewed from the
front of the machine) until there is approxi-
mately
1
⁄4" deflection in the V-belt.
4. Re-tighten both cap screws and close the
wheel cover.
Figure 65. Locations of the motor adjustment
and hinge cap screws.
Motor Mount
Cap Screws
