Model G0699 (Mfd. Since 5/15)
-45-
Blade Elevation Handwheel & Lock Knob:
Handwheel raises and lowers the blades. The
lock knob secures the handwheel to prevent it
from moving during operation.

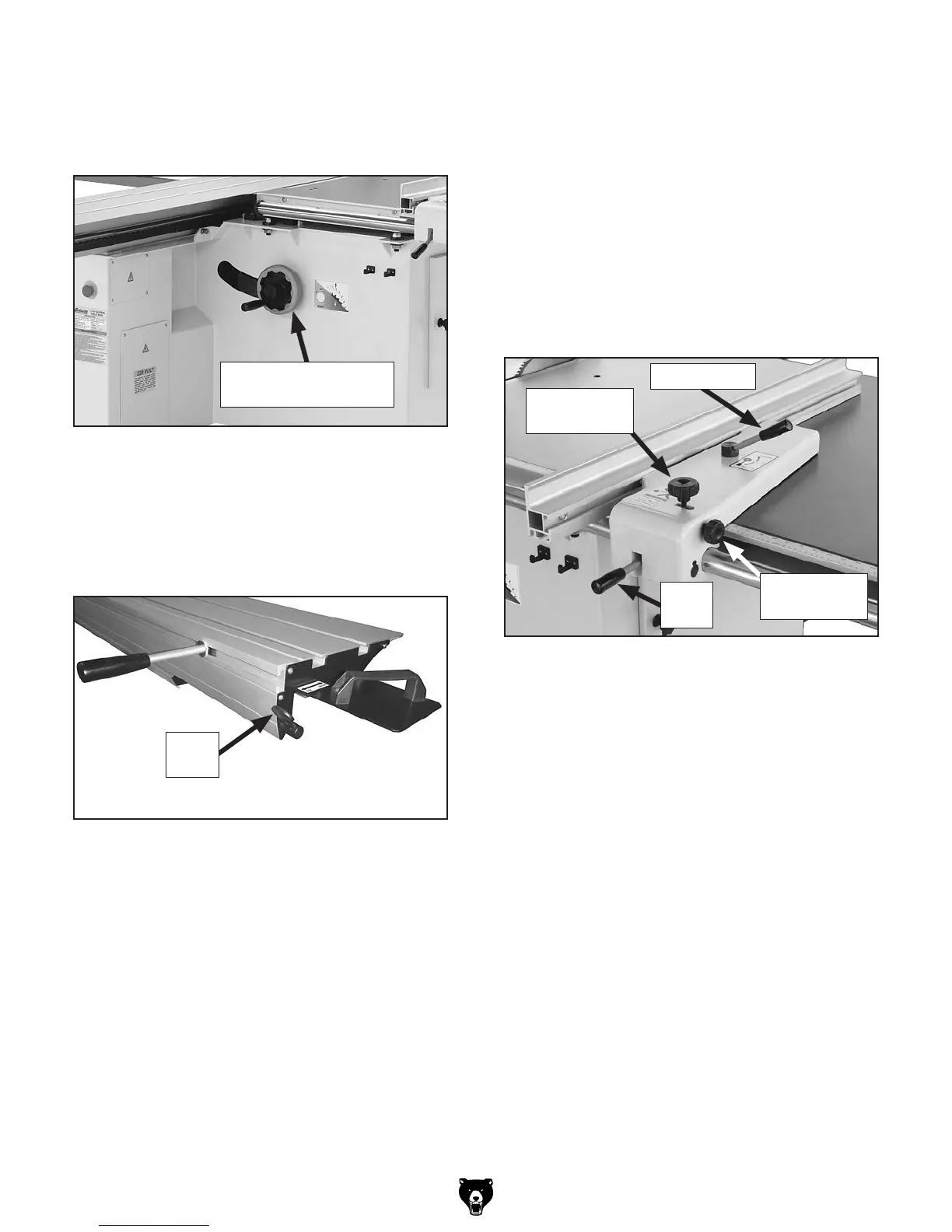

Figure 74. Blade elevation control.
Elevation Handwheel
& Lock Knob
Sliding Table Lock Lever: Locks the sliding table
in position. When rotated to the left, the lock-
ing mechanism under the sliding table engages.
When the lever is rotated to the right, the lock
releases and allows the table to slide freely.
Rip Fence Clamp Lever: Secures the rip fence to
the rip fence body.
Rip Fence Lock Lever: Clamps the rip fence
assembly in place on the fence rail.
Micro-Adjust Knob: Provides for fine-tune adjust-
ment for the width-of-cut (the rip fence lock lever
must be loose to use this).
Micro-Adjust Lock Knob: Clamps the rip fence
assembly to the fence rail and allows the use of
the micro-adjust knob.
Figure 76. Rip fence controls.
Clamp Lever
Micro-Adjust
Lock Knob
Micro-Adjust
Knob
Lock
Lever
Figure 75. Sliding table locking mechanism.
Lock
Lever
