Grizzly G0699 - Scoring Blade Arbor & Motor

-90-
Model G0699 (Mfd. Since 5/15)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.

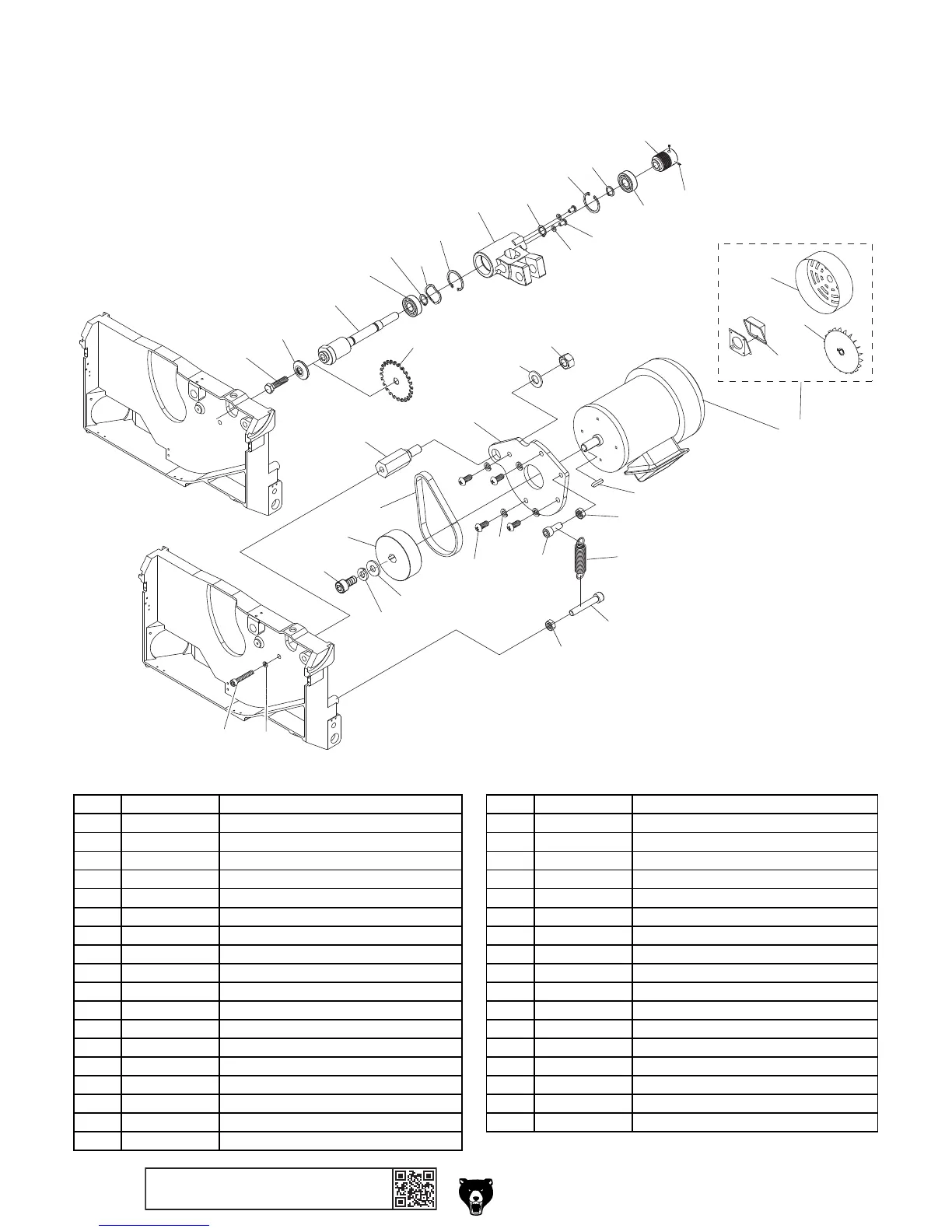

Scoring Blade Arbor & Motor
516
517
518
532
533
534
520V2
521
522
523
524
525
535
526
527
537
528
529
530
531
526-1
526-2
526-3
501
502
503
536V2
506
507
508
509
511V3
512
515
505
505
506
504
505
510
REF PART # DESCRIPTION REF PART # DESCRIPTION
501 P06990501 HEX BOLT M12-1.75 X 20 523 P06990523 LOCK WASHER 8MM
502 P06990502 SCORING BLADE ARBOR FLANGE 524 P06990524 SCORING MOTOR MOUNTING PLATE
503 P06990503 SCORING BLADE ARBOR 525 P06990525 LOCK NUT M14-2
504 P06990504 BALL BEARING 6202-2RS 526 P06990526 SCORING MOTOR 1HP 220/440V 3PH
505 P06990505 INT RETAINING RING 15MM 526-1 P06990526-1 SCORING MOTOR FAN COVER
506 P06990506 INT RETAINING RING 35MM 526-2 P06990526-2 SCORING MOTOR FAN
507 P06990507 ARBOR HOUSING 526-3 P06990526-3 SCORING MOTOR JUNCTION BOX
508 P06990508 FLAT WASHER 6MM 527 P06990527 HEX NUT M10-1.5
509 P06990509 FLAT HD SCR M6-1 X 16 528 P06990528 CAP SCREW M10-1.5 X 20
510 P06990510 WAVE WASHER 26MM 529 P06990529 TENSION SPRING
511V3 P06990511V3 SCORING BLADE PULLEY V3.01.16 530 P06990530 CAP SCREW M10-1.5 X 50
512 P06990512 ROLL PIN 5 X 25 531 P06990531 HEX NUT M10-1.5
515 P06990515 SCORING BLADE 20T 532 P06990532 FLAT WASHER 6MM
516 P06990516 CAP SCREW M12-1.75 X 100 533 P06990533 LOCK WASHER 6MM
517 P06990517 LOCK WASHER 12MM 534 P06990534 CAP SCREW M6-1 X 16
518 P06990518 SCORING MOTOR PULLEY 535 P06990535 FLAT WASHER 14MM
520V2 P06990520V2 FLAT BELT 18 X 355MM V2.01.16 536V2 P06990536V2 BALL BEARING 6003-2RS V2.12.11
521 P06990521 PIVOT SHAFT 537 P06990537 KEY 5 X 5 X 20
522 P06990522 BUTTON HD CAP SCR M8-1.25 X 20
