Grizzly G0699 - Tilt & Elevation Handwheels; Cap Screw M10-1.5 X 35

Model G0699 (Mfd. Since 5/15)
-89-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.

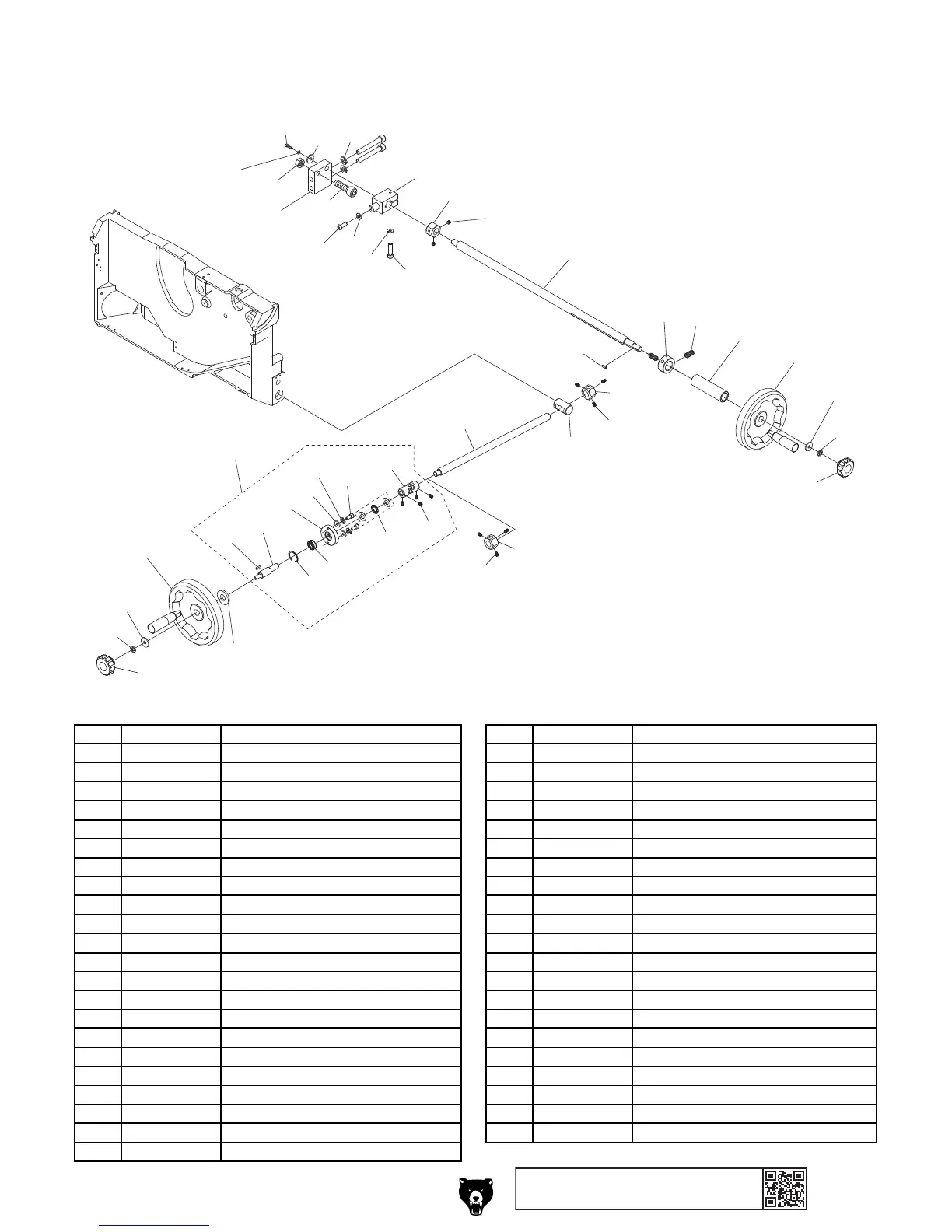

Tilt & Elevation Handwheels
420
421
422
423
444
443
425
426
427
428
429V2
430
431
432
433
434
435
436
437
438
439
440
441
442
Elevation Handweel
401
402
403
404
405
406
406A
407
408V2
445
409
410
411
412
413
414
415
416
417
418
419
418
419
Tilt Handweel
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P06990401 LOCK KNOB M10-1.5 423 P06990423 ELEVATION HANDWHEEL ASSEMBLY
402 P06990402 FLAT WASHER 10MM 425 P06990425 LEADSCREW SLEEVE
403 P06990403 HANDWHEEL FLAT WASHER 10MM 426 P06990426 ELEVATION LEADSCREW
404 P06990404 TILT HANDWHEEL ASSEMBLY 427 P06990427 SET SCREW M6-1 X 6
405 P06990405 KEY 7 X 7 X 20 428 P06990428 ELEVATION LEADSCREW NUT
406A P06990406A HANDWHEEL SHAFT ASSEMBLY 429V2 P06990429V2 CAP SCREW M6-1 X 30 V2.09.13
406 P06990406 HANDWHEEL SHAFT 430 P06990430 LOCK WASHER 6MM
407 P06990407 BEARING WASHER 431 P06990431 ELEVATION LEADSCREW CLAMP
408V2 P06990408V2 BALL BEARING 6902-2RS V2.11.13 432 P06990432 CAP SCREW M8-1.25 X 60
409 P06990409 BEARING SEAT 433 P06990433 LOCK WASHER 8MM
410 P06990410 LOCK WASHER 8MM 434 P06990434 LEADSCREW BRACKET
411 P06990411 THRUST BEARING NTB1528 AS 435 P06990435 FLAT WASHER 6MM
412 P06990412 UNIVERSAL JOINT 436 P06990436 LOCK WASHER 6MM
413 P06990413 TILT LEADSCREW 437 P06990437 CAP SCREW M6-1 X 12
414 P06990414 FLAT WASHER 8MM 438 P06990438 KEY 5 X 5 X 20
415 P06990415 CAP SCREW M8-1.25 X 20 439 P06990439 FLAT WASHER 6MM
416 P06990416 SET SCREW M6-1 X 6 440 P06990440 CAP SCREW M6-1 X 10
417 P06990417 TRUNNION CONNECTOR 441 P06990441 CAP SCREW M10-1.5 X 35
418 P06990418 SET SCREW M6-1 X 6 442 P06990442 HEX NUT M10-1.5
419 P06990419 TILT LEADSCREW NUT 443 P06990443 LOCK COLLAR
420 P06990420 LOCK KNOB M10-1.5 444 P06990444 SET SCREW M8-1.25 X 10
421 P06990421 FLAT WASHER 10MM 445 P06990445 EXT RETAINING RING 28MM
422 P06990422 HANDWHEEL FLAT WASHER 10MM
