Grizzly G0699 - Scoring Blade Adjustment System; Ref Part # Description Ref Part

Model G0699 (Mfd. Since 5/15)
-91-
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.
REF PART # DESCRIPTION REF PART # DESCRIPTION
601V2 P06990601V2 HEX BOLT M8-1.25 X 16 V2.01.16 610 P06990610 LOCK WASHER 6MM
602 P06990602 FLAT WASHER 8MM 611 P06990611 CAP SCREW M6-1 X 16
603 P06990603 HORIZONTAL ADJUSTMENT SHAFT 612 P06990612 VERTICAL ADJUSTMENT SHAFT
604 P06990604 ECCENTRIC SHAFT 613 P06990613 SET SCREW M6-1 X 25
605 P06990605 LOCK NUT M6-1 614 P06990614 HEX NUT M6-1
606 P06990606 BELLEVILLE DISC SPRING 6MM 615 P06990615 HEX NUT M8-1.25
607 P06990607 COMPRESSION SPRING 616 P06990616 ROLL PIN 3 X 12
608 P06990608 PIVOT ARM 617 P06990617 VERTICAL ADJUSTMENT BOLT
609 P06990609 FLAT WASHER 6MM

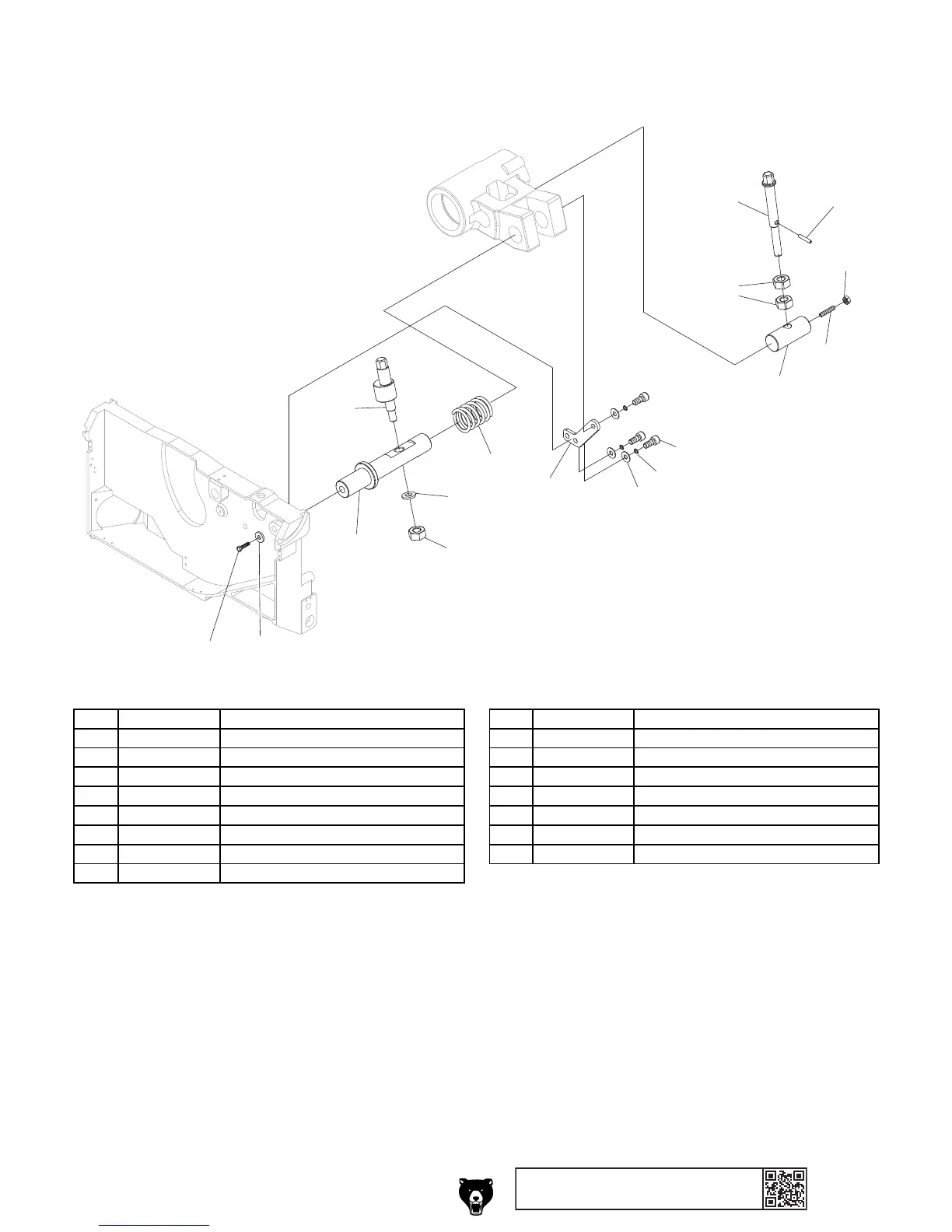

Scoring Blade Adjustment System
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
601V2
