Grizzly G0752 - G0602 Electrical Components; Identification of G0602 Electrical Parts

-68-
Model G0602/G0752 (Mfg. Since 11/12)
READ ELECTRICAL SAFETY
ON PAGE 66!

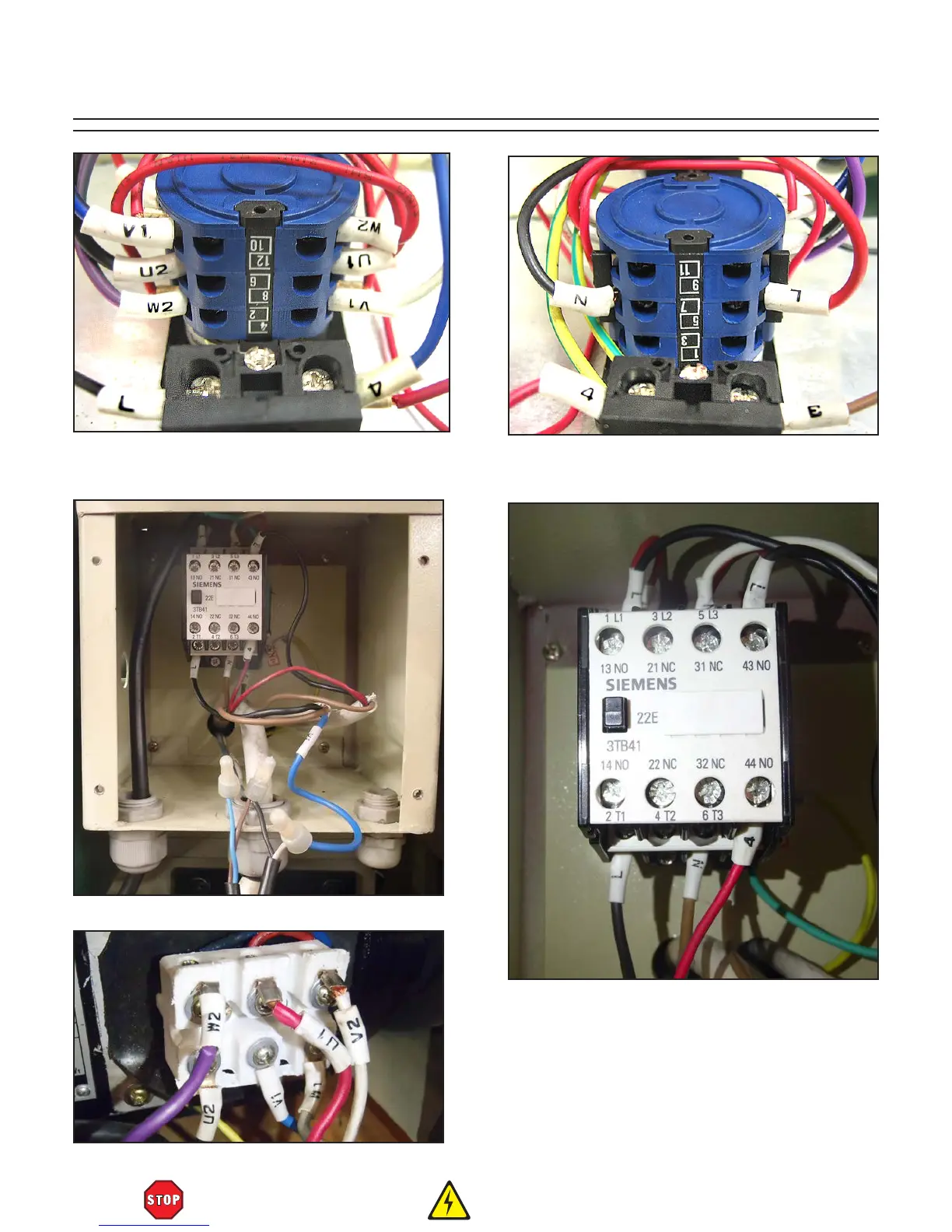

Figure 103. Motor connection detail.
G0602 Electrical Components
Figure 101. Spindle direction switch and ON
button.
Figure 102. Electrical box.
Figure 105. Magnetic contactor.
Figure 104. Spindle direction switch and
emergency stop switch.
