Model G0602/G0752 (Mfg. Since 11/12)
-81-

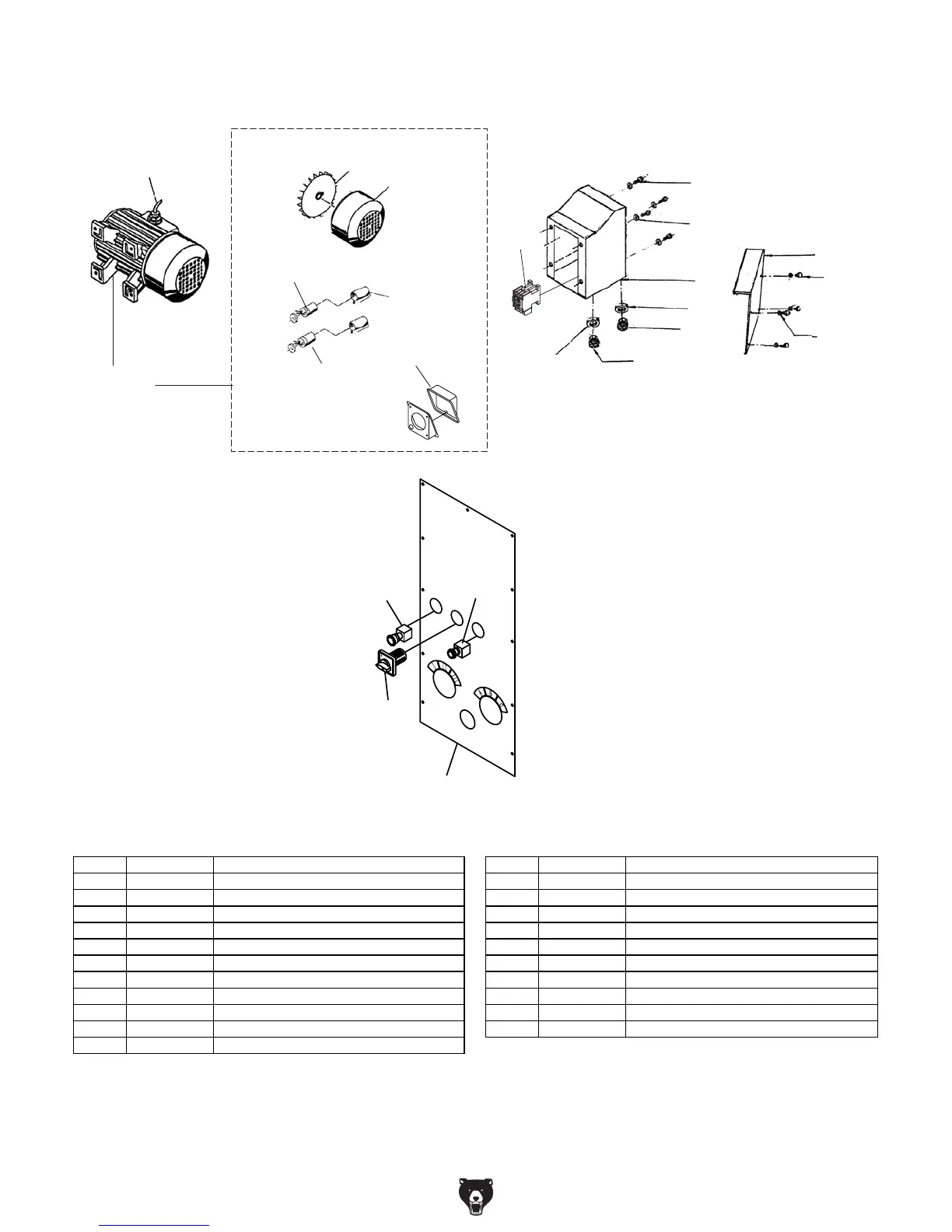

G0602 Motor & Electrical
601
602
603
604
607
608
610
611V2
611V2-2
611V2-3
611V2-4
611V2-6
612
615
617
616
611V2-5
611V2-7
611V2-1
618
620
619
621
REF PART # DESCRIPTION REF PART # DESCRIPTION
601 P0602601 ELECTRICAL CABINET 611V2-5 P0602611V2-5 CAPACITOR COVER
602 PCAP06M CAP SCREW M6-1 X 25 611V2-6 P0602611V2-6 POWER CORD 14G 3W 60" 5-15P
603 PLW03M LOCK WASHER 6MM 611V2-7 P0602611V2-7 MOTOR JUNCTION BOX
604 P0602604 ELECTRICAL CABINET COVER 612 PW05M FLAT WASHER 4MM
607 P0602607 STRAIN RELIEF NUT 615 P0602615 STRAIN RELIEF M20-1.5
608 P0602608 STRAIN RELIEF M25-1.5 616 P0602616 STRAIN RELIEF NUT
610 PS17M PHLP HD SCR M4-.7 X 6 617 P0602617 CONTACTOR SIEMENS 3TB41 22E 110V
611V2 P0602611V2 MOTOR 1HP 110V 1-PH ALUM BDY V2.09.08 618 P0602618 E-STOP BUTTON MINGER LA125H-BE102C
611V2-1 P0602611V2-1 MOTOR FAN 619 P0602619 ON PUSH BUTTON MINGER LA125H-BE101C
611V2-2 P0602611V2-2 MOTOR FAN COVER 620 P0602620 ROTARY SWITCH CANSEN LW26-20 M09T/3
611V2-3 PC150 S CAPACITOR 150M 125V 621 P0602621 G0602 CONTROL PANEL
611V2-4 P0602611V2-4 R CAPACITOR 20M 400V
