Grizzly G0752 User Manual

Model G0602/G0752 (Mfg. Since 11/12)
-79-

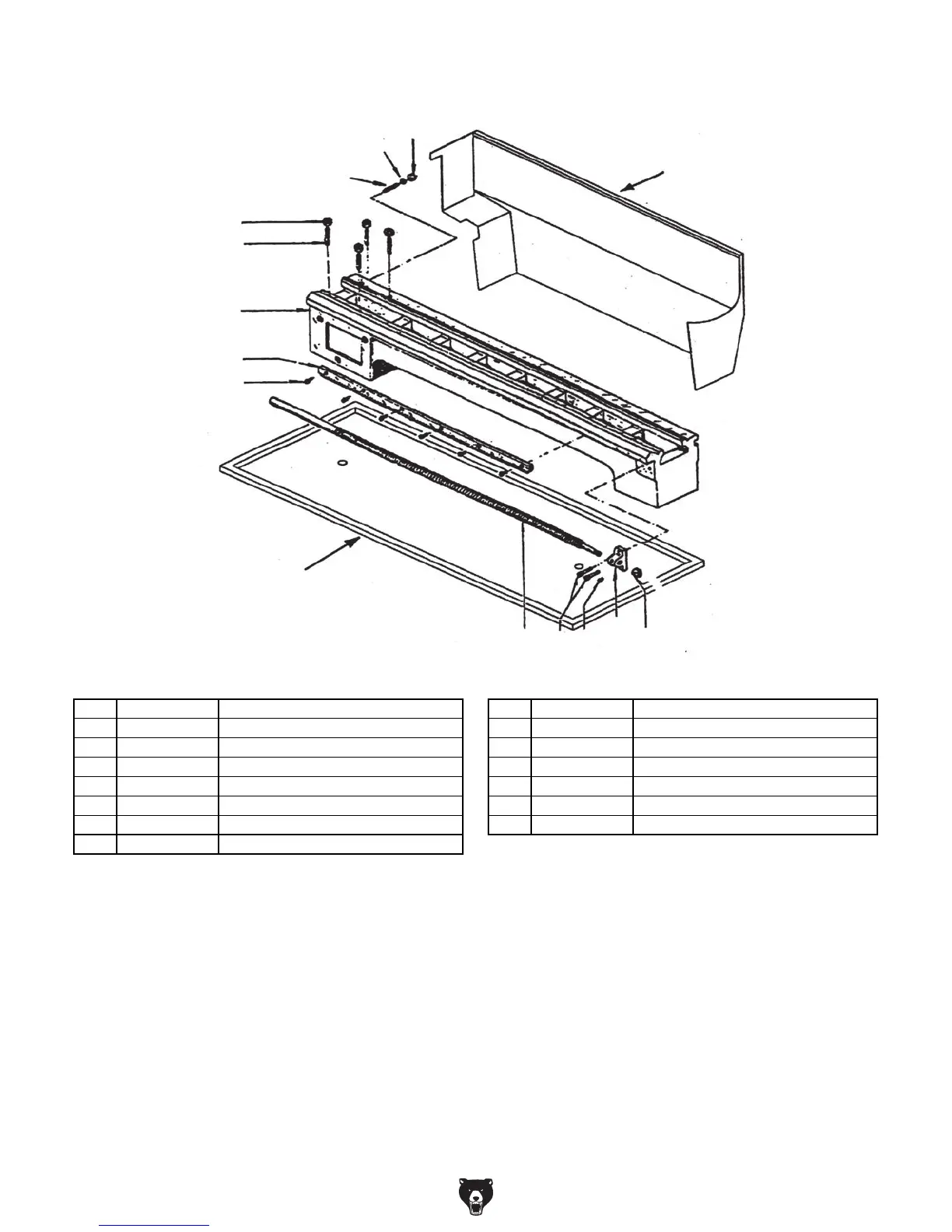

Bed & Leadscrew
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0602401 BED 409 P0602409 BACK SPLASH
402 P0602402 RACK 410 P0602410 STUD-SE M10-1.5 X 45, 35
403 PCAP33M CAP SCREW M5-.8 X 12 411 PN02M HEX NUT M10-1.5
404 P0602404 LONGITUDINAL LEADSCREW 412 PSS44M SET SCREW M8-1.25 X 40
405 P0602405 LEADSCREW END BRACKET 413 PW01M FLAT WASHER 8MM
406 P0602406 BALL OILER 6MM 414 PN03M HEX NUT M8-1.25
407 PCAP02M CAP SCREW M6-1 X 20 415 P0602415 CHIP PAN
408 PLN05M LOCK NUT M10-1.5
