Grizzly G0752 User Manual

Model G0602/G0752 (Mfg. Since 11/12)
-71-
READ ELECTRICAL SAFETY
ON PAGE 66!

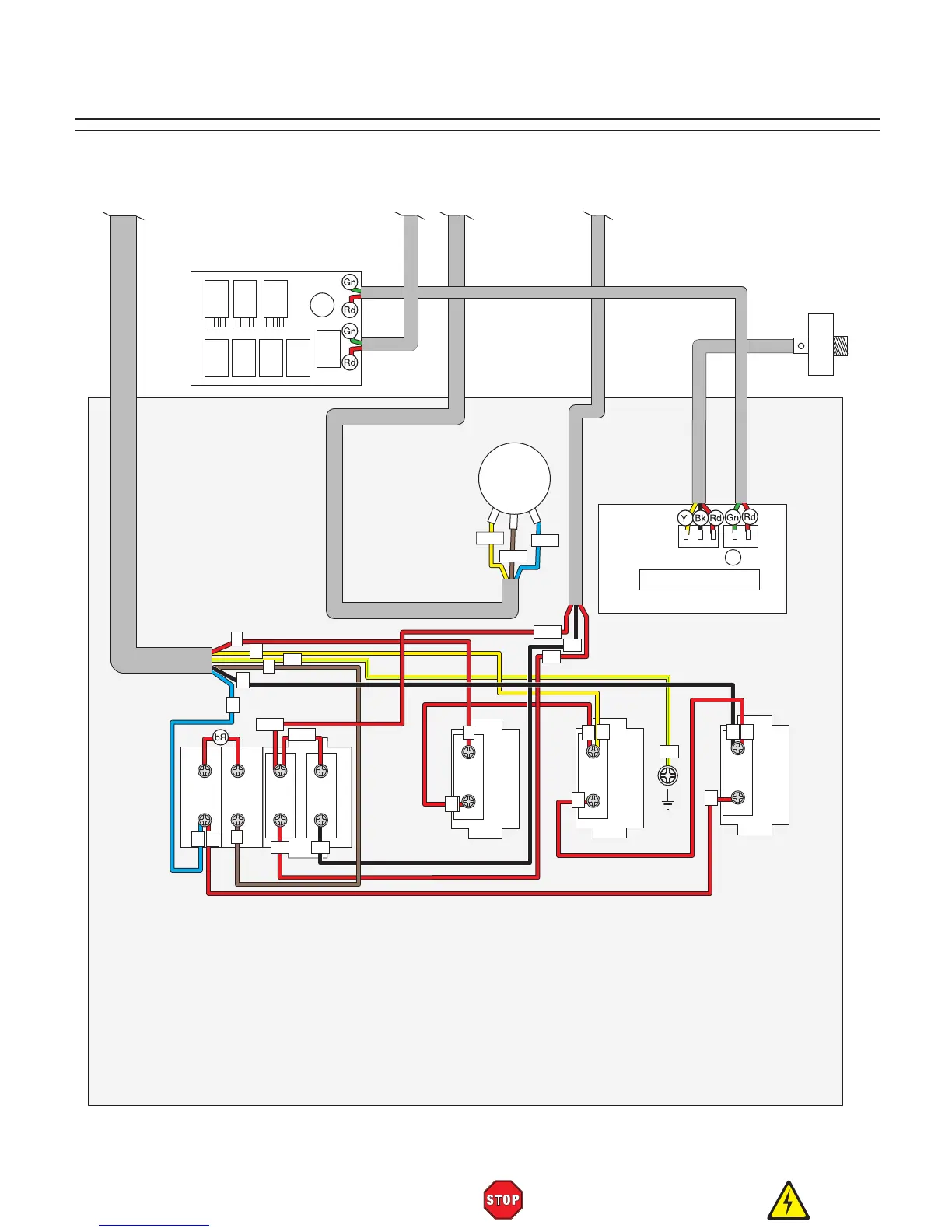

G0752 Control Panel Wiring Diagram
1 NC
LA252HBE102C
2
3 NO
4
LA252HBE101C
LA252HBE101C
LA252HBE101C
LA252HBE102C LA252HBE102C
2
2
4
4
VS Switch
RPM Display
Spindle
Speed
Sensor
Spindle Speed
Circuit Board
Spindle
Direction
Switch
OFF Button
Switch
ON Button
Switch
E-Stop
Button Switch
(Viewed from Behind)
Control Panel
WX14-12
4K7
3 NO
3 NO
1 NC
1 NC
(Bottom)(Top)
COM
4
Ground
3 3
3
3 3
3 3
2 2
2
PE PE
M1 M1
M2 M2
M2
10V
AVI AVI
ACM ACM
4
PE
1 NC
LA252HBE102C
2
4 4
5
1 1
1 1
1 1
1
4
DCM DCM
DCM
5
M1
See Figure 107, on Page 72
See Figure 110,
Page 72
See Figure 108, Page 72
See
Figure 109,
Page 72
To Wiring Box
Page 69
To Wiring Box
Page 69
To Wiring Box
Page 69
See Figure 112,
on Page 72
