-22-
Model G0925 (Mfd. Since 02/20)
Positioning Table

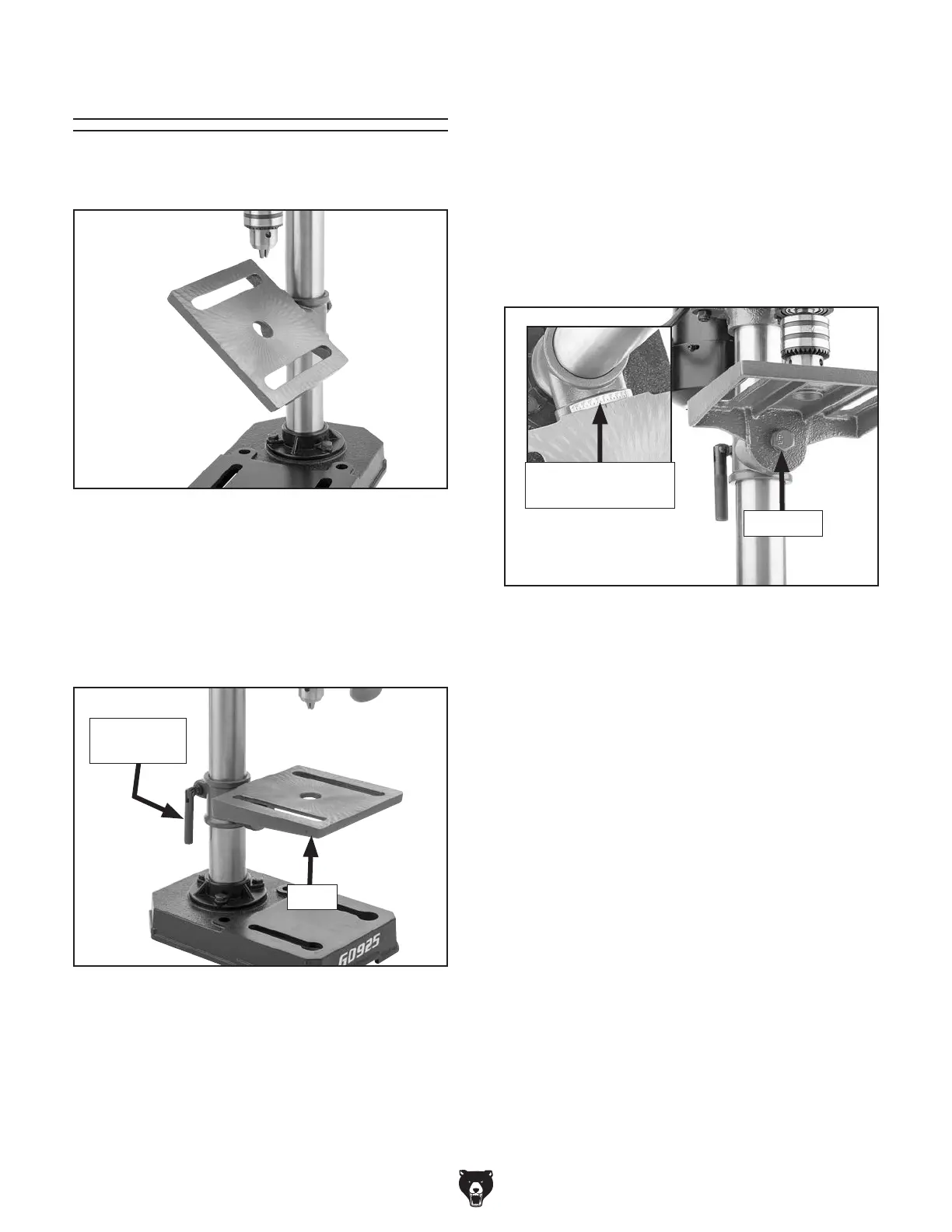

The table moves vertically, pivots around the col-
umn, and tilts 45° left or right (see Figure 23).
3
. Tighten lock bolt to secure table position.
1. Loosen table lock handle shown in Figure 24.
2
. Adjust table height and position it around col-
umn as desired, then tighten table height lock
handle.
Adjusting Table Position
Tilting Table
Figure 24. Table position adjustment controls.
Table
Table Lock
Handle
1. Loosen the lock bolt shown in Figure 25.
Lock Bolt
Figure 25. Table tilt controls.
Tilt Angle
Pointer and Scale
2. Tilt table until pointer aligns with desired
angle on scale (see Figure 25).
Figure 23. Table tilted 45° right.
Items Needed Qty
Open-End Wrench 19mm .................................. 1
To tilt table:
