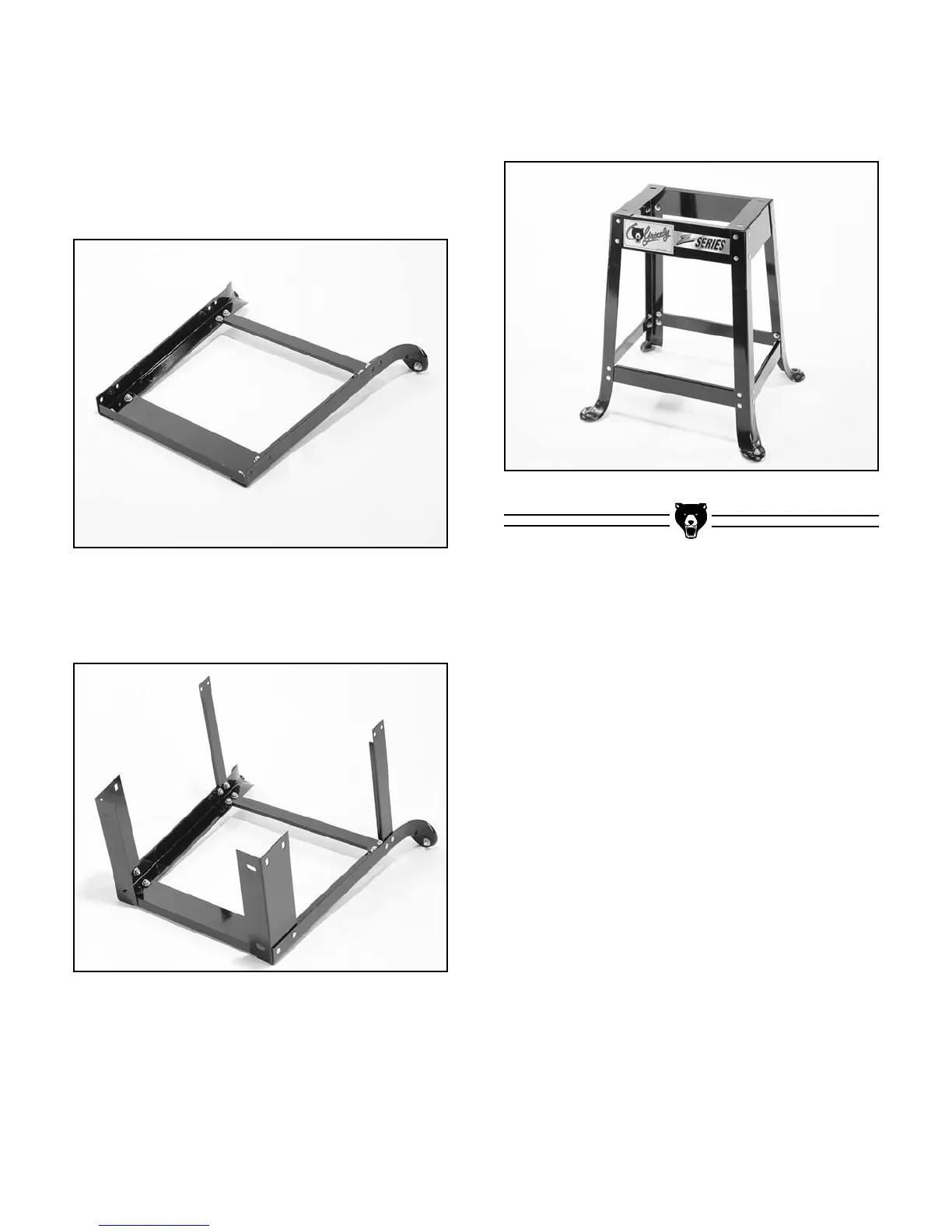

Figure 3.
G1014Z Combination Sander -9-
Figure 4.
3. Bolt the shorter upper and lower braces to
one of the 2 stand sub-assemblies. Figure 4.
4. Now attach the other sub-assembly to the
ends of the short braces. Tighten down all
the stand bolts at this time. Figure 5.
Figure 5.
2. Attach the longer upper and lower cross
braces to 2 of the stand legs. Bolt together
using the
5
⁄16''-18 x
1
⁄2'' Carriage Bolts,
Washers and Hex Nuts provided. Figure 3.
Repeat this step for the other 2 legs. Note:
Do not tighten any bolts down until the stand
is completely assembled.
