-10- G1014Z Combination Sander

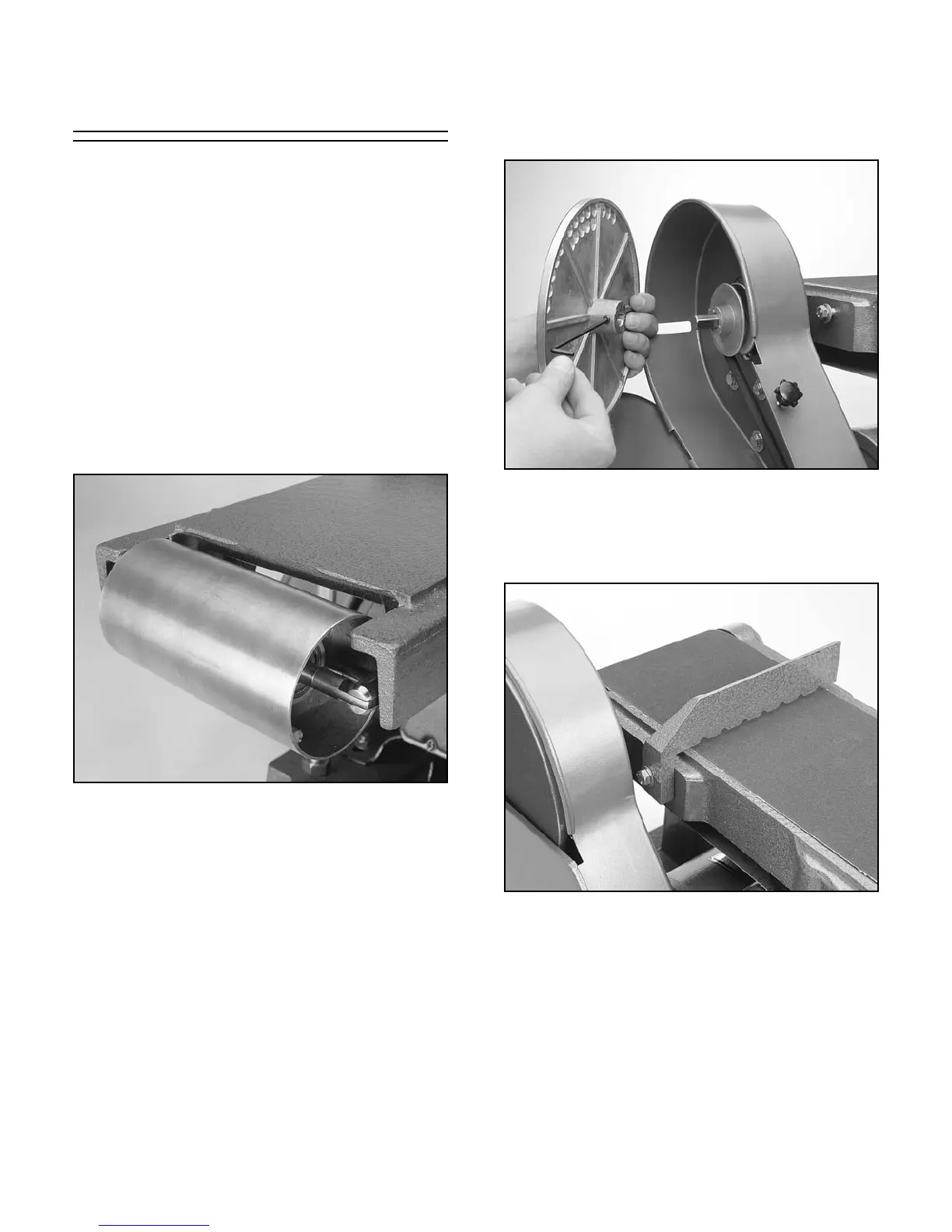

Figure 7.
5. At this point, install the back stop, using the
Hex Bolt and Washer as shown in Figure 7.
Figure 8.
4. Install the Sanding Disc as shown in Figure
7. Make sure the Setscrew is lined up on the
flat spot on the drive shaft.
Figure 6.
Sanding Unit
1. Set the Sanding Unit on the Stand, carefully
aligning the mounting holes in the cast iron
base with the holes in the stand’s top panel.
Note: The Sanding Unit comprises most of
the weight of the machine. Please use cau-
tion when lifting the unit onto the stand.
2. Secure the Sanding Unit to the Stand using
the
5
⁄16
"-18 x
1
⁄2
" Hex Bolts and
5
⁄16
" washers
provided.
3. Install the Idler Roller by sliding its flat-ended
axles into the slotted ends of the roller
Adjustment Bars. Figure 6.
