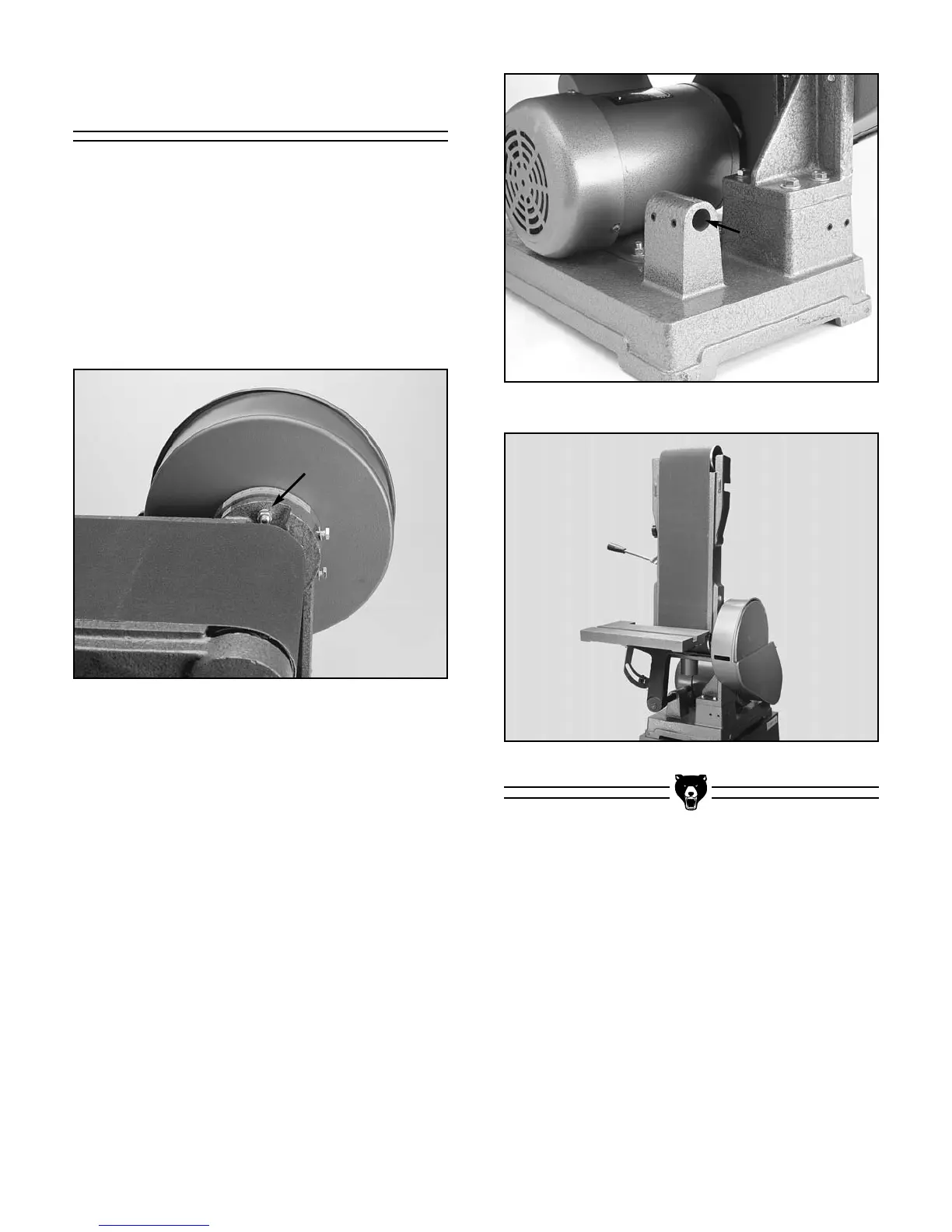

-14- G1014Z Combination Sander
Figure 18. Setup for vertical sanding.
2. The Sanding Disc Table can also be moved
to become a work table for belt sanding.
Simply remove the Table Support Shaft from
the base and insert it into the mounting
bracket behind the motor. The Bracket’s
location is shown in Figure 17.
Vertical Positioning
The 6" belt arm can also be operated in a vertical
position. Adjustment procedures are listed below.
1. Loosen the two nuts shown in Figure 16
(one nut is obscured by the belt arm in this
photo but it is directly below the visible one).
With these nuts loose, the belt frame can be
raised to its vertical position. Tighten the
nuts down.
Figure 16.
Figure 17.
