-42-
Model G7943/G7944 (Mfd. Since 09/17)
READ ELECTRICAL SAFETY
ON PAGE 40!
Light Socket
Light
Switch
Power
Switch
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.
Ground
Ground
Ground
Start
Capacitor
200uF 125V
Neutral
Hot
Ground
120 VAC
5-15 Plug
(Preinstalled)

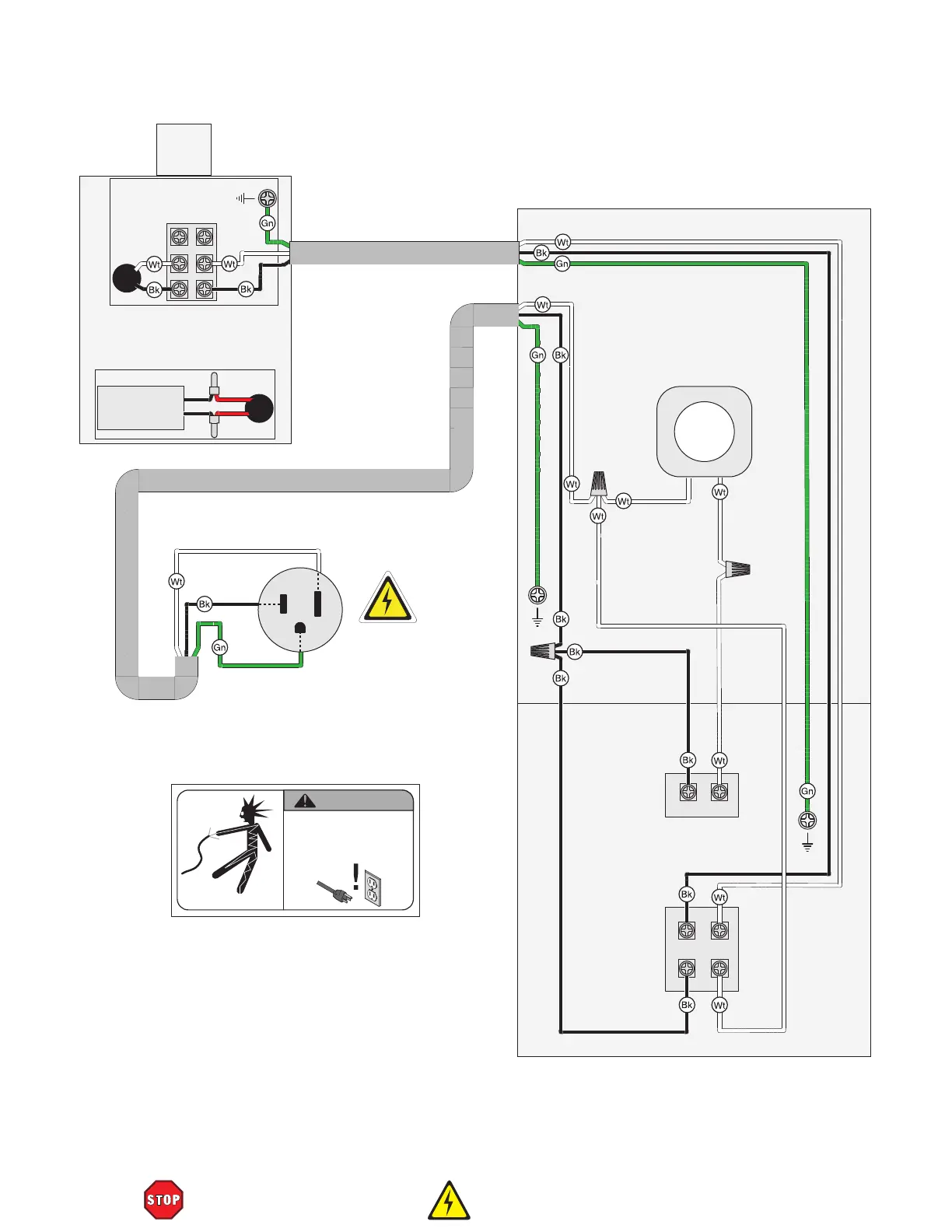

G7943/G7944 Wiring Diagram
