-16-
G9729 Combination Lathe/Mill
Handwheels
Hand Crank

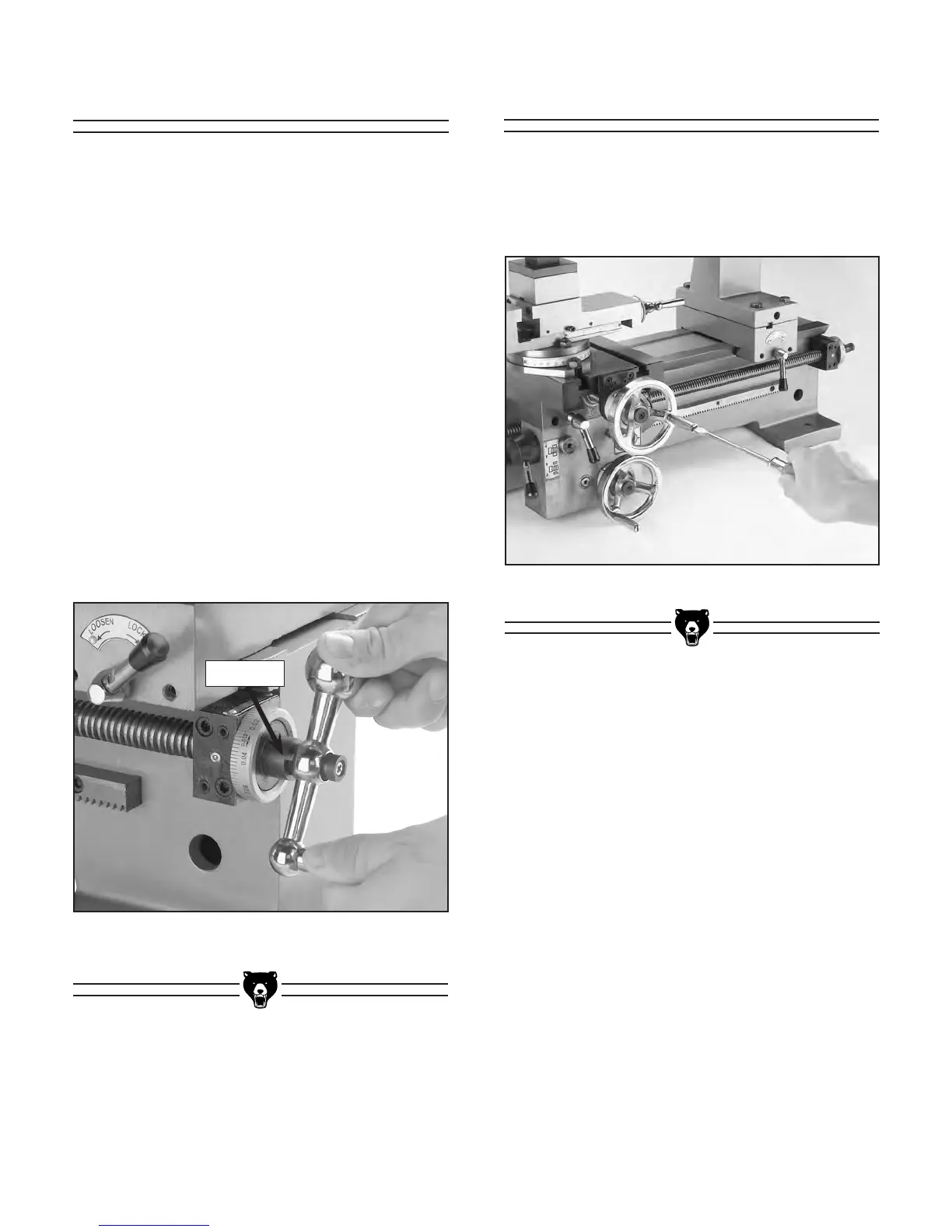

Figure 7. Attach handles to handwheels.
Figure 6. The key is engaged with the hand
crank.
The apron and cross slide handwheel handles
must be installed. A screwdriver is supplied for
this job. Locate the threaded holes on each hand
wheel and attach the handles (see Figure 7).
The hand crank for the longitudinal manual feed
must be installed.
To install the hand crank:
1. The
end of the leadscrew has a washer and
screw attached. Remove these.
2. The hand crank has a key slot on one side
as
shown in Figure 6.
Slide the hand crank
onto the end of the leadscrew, key slot first.
3. Thread the screw through the washer and
into
the end of the leadscrew.
4. To
use the hand crank, push it in towards the
leadscrew so the key way and key engage.
Turn the hand crank while keeping pressure
applied. When released, the hand crank will
withdraw from the leadscrew and will no lon-
ger
be engaged.
Key Slot
