-4- H2933/H2934/G0447/G0581 Wide Belt Sander
Control Panel
Features
External Features
A. Digital Amp Draw Meter
B. Table-Height Digital Readout
C. Table Up Key
D. Table Down Key
E. Sanding Belt Start Button
F. Conveyor Belt Start Button
G. Power Light
H. Table Set (Enter) Key
I. Table Start Key
J. Table Stop Key
K. Sanding Belt Stop Button
L. Feed Belt Stop Button
M. Emergency Stop Button
B
F L
G
M
I
A
H
C
J
D
D
F
E
K
E
C

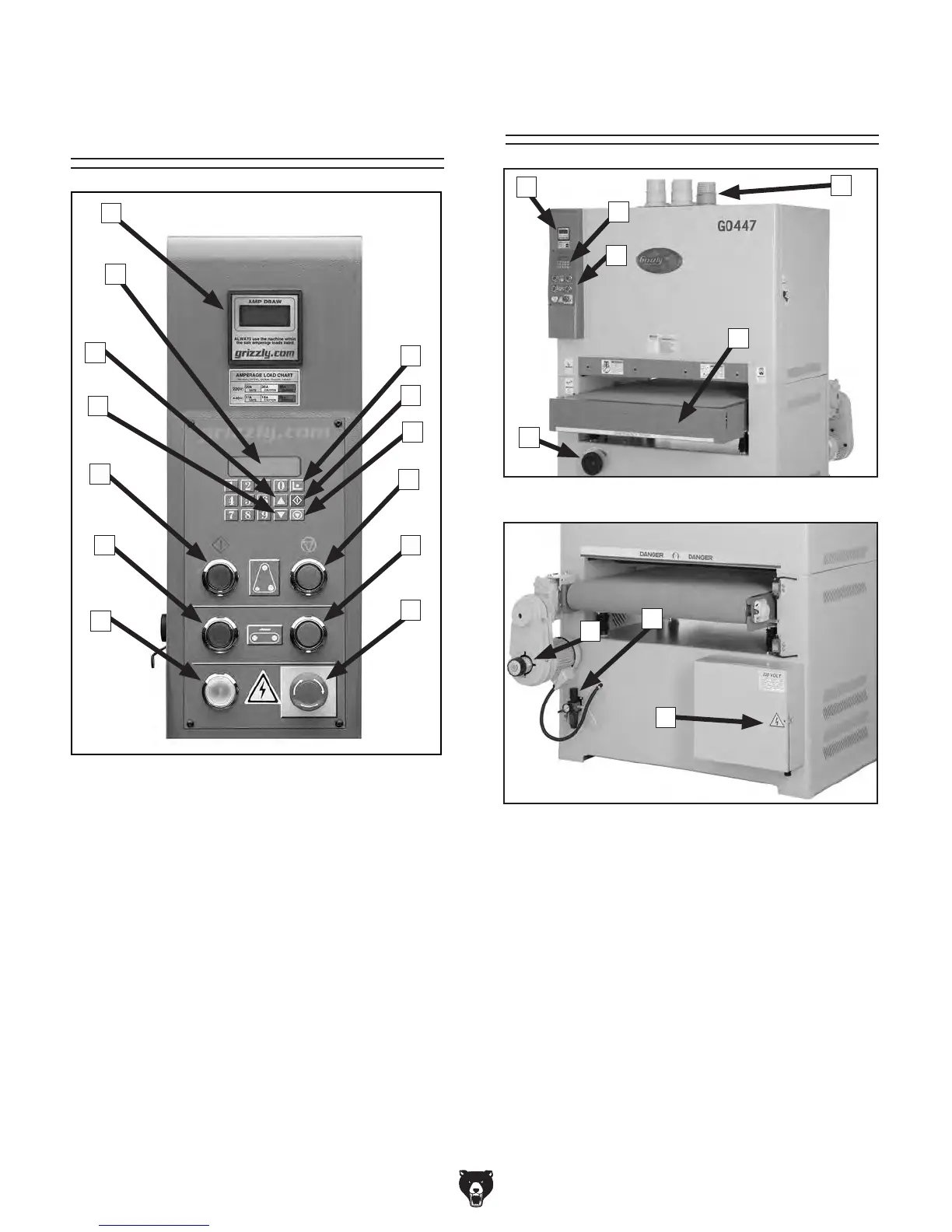

Figure 2. Front View.
Figure 1. Control Panel.
A. Control Panel
B. Table Height Handwheel
C. Emergency Stop Push-Panel
D. 4" Dust Collection Ports
E. Amperage Load Chart
F. Digital Table Height Key Pad
G. Conveyor Speed Control
H. Air Pressure Regulator
I. Main Wiring Box
B
Figure 3. Rear View.
G
H
I
A
To Next Page
