Manual Tilt Assembly Parts List

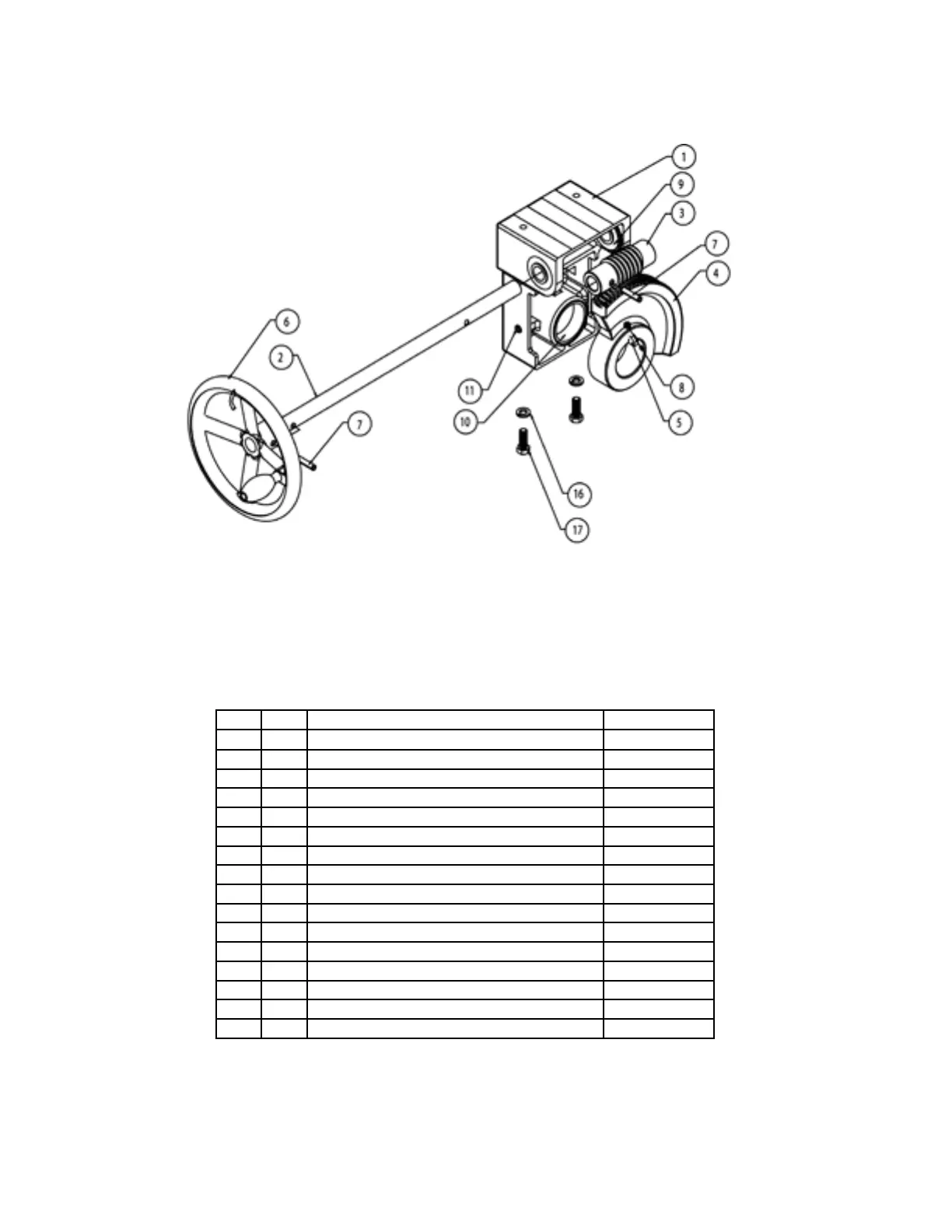

MANUAL TILT ASSEMBLY
KEY QTY PART NO.
1 1 GEAR CARRIER 002624
2 1 SHAFT, HANDWHEEL 144834
3 1 GEAR, WORM 128001
4 1 GEAR SECTOR 009829
5 1 KEY GIB 012031
6 1 HANDWHEEL 012061
7 2 PIN ROLL 012614
8 2 SCREW SET SOCKET 012060
9 2 BEARING ROLLER 002790
10 2 BEARING SLEEVE 137239
11 1 PLUG PIPE 010286
14 1 FITTING GREASE 90 (NOT SHOWN) 012195
15 1 BUSHING SNAP (NOT SHOWN) 000453
16 2 WASHER LOCK 005618
17 2 SCREW HEX HEAD CAP 005612
