9
Gas is connected at the rear of the control
console.
1.4 Water Supply
Not applicable to these appliances ezcept for
optional faucets..
1.5 Gas System Performance
The tables below provide the total Gas Rates,
Injector Diameters and Pressure Adjustments for
model BPM-G (CE) using natural (G20) and
propane (G31) gas sources.
Total Gas Rate
Model
Natural
(G20)
KW
Natural
BTU/hr
Propane
(G31)
KW
Propane
BTU/hr
BPM-30G
26.1 89,100 26.1 89,100
BPM-40G
36.1 123,300 36.1 123,300
Injector Diameters-Natural & Propane Gas
Model
Natural
Gas G20
(mm)
Propane
Gas G31
(mm)
No. of
Orifices
(Injectors)
BPM-30G
1.5 0.97 11
BPM-40G
1.5 0.97 15

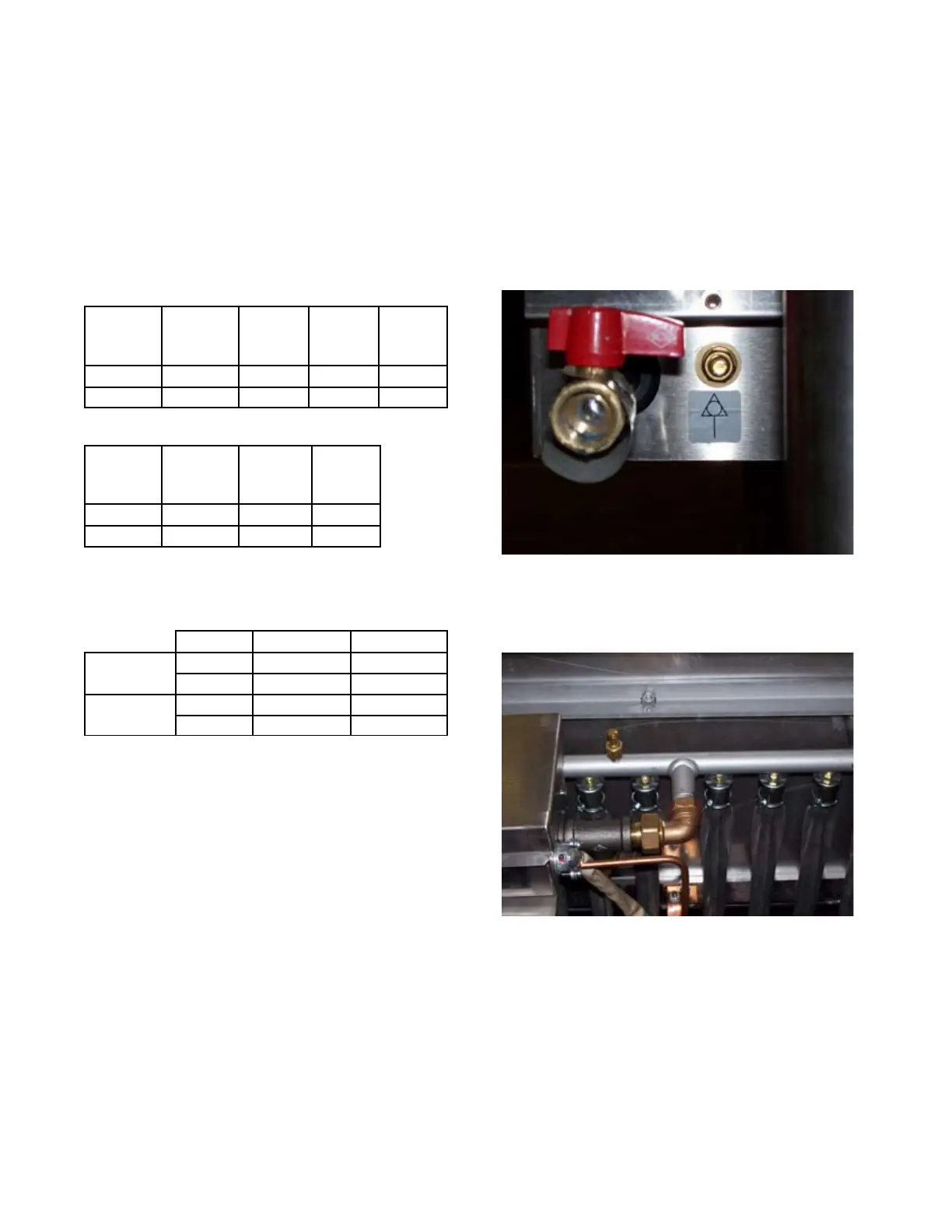

Gas Pressure Adjustment
A pressure test point is fitted on the burner manifold
and on the gas control valve.
Model BPM-30G BPM-40G
NATURAL
GAS G20
mbar 8.0 8.0
in. WC 3.2 3.2
PROPANE
GAS G31
mbar 19.4 19.4
in. WC 7.8 7.8
NOTE: With reference to the gas rate, pressure
adjustments and conversions, this appliance is
CE-approved for use with the following gases:
a) Gas Category I2H, G20 natural gas may be
supplied to the appliance in Austria, Denmark,
Finland, Greece, Iceland, Italy, Luxembourg,
Norway, Portugal, Spain, Sweden, Switzerland
and the United Kingdom.
b) Gas Category I3P, G31 propane gas may be
supplied to the appliance in Germany, Ireland,
the Netherlands, Portugal, Spain, Switzerland
and the United Kingdom.
Use of the appliance with non-approved gases in a
listed country, or use in other countries will void CE
certification.
1.6 Burner Adjustment
The burner primary airflow may be adjusted by
loosening the screw and sliding the aerator forward
or backward. (See photograph)
Fig. 3
Fig. 4
