Grote 613-VS2-LES - Operator Interface

Model 613-VS2-LES, Log End Slicer Setup
R-1176866 613-VS2-LES_CJL20160114.doc: 1/15/2016 4:21 PM Grote Company 24
STATIC SLITER (OPTIONAL)
The static slitter consists of vertically arranged stationary blades protruding through slots in a
dedicated thickness tray. Corresponding slots used in special product holders allow the blades to
pass through the product and holder.

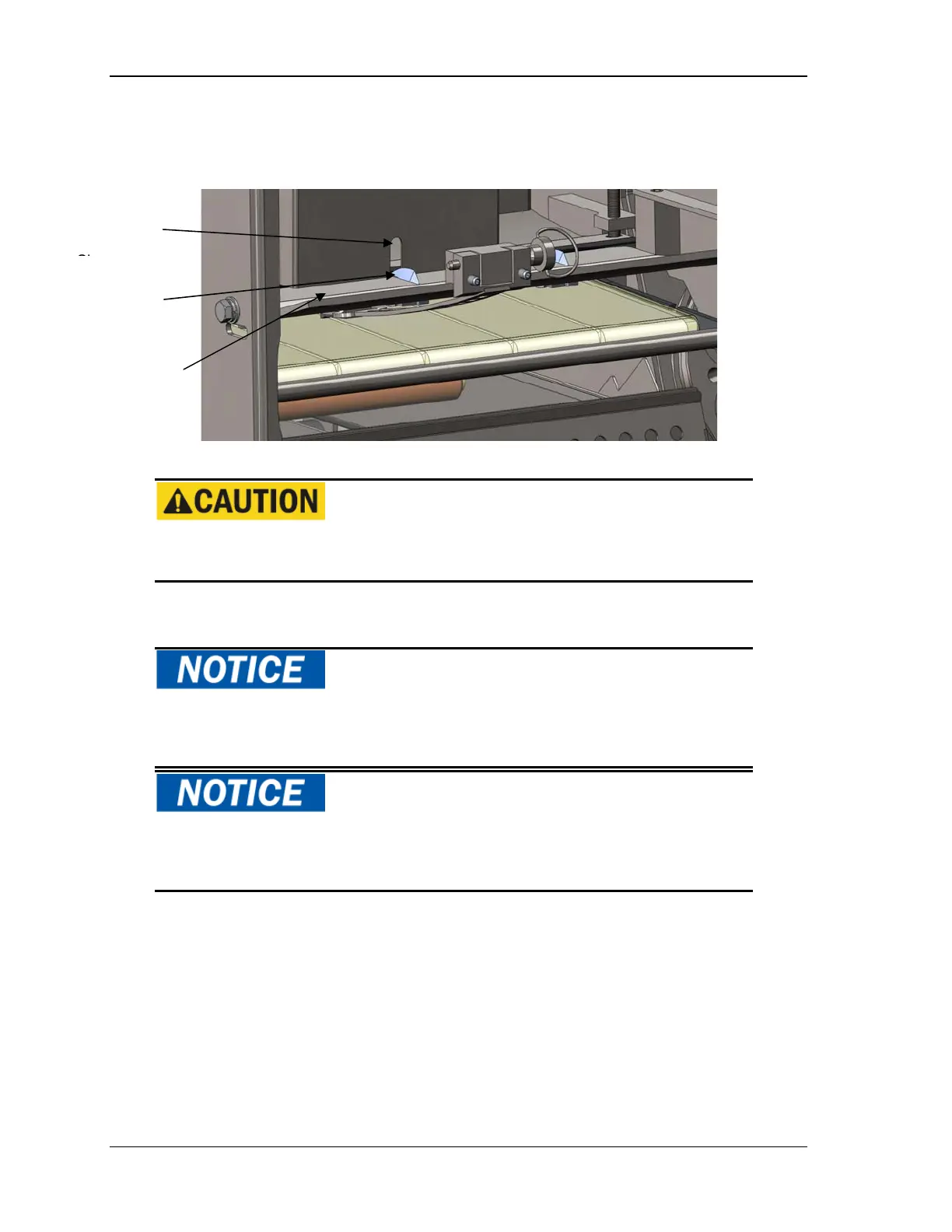

Figure 23 Static Slitter
Two-piece collars are available to aid in alignment. When used in conjunction with the shuttle
conveyor assembly, the static slitter assembly does not allow for slicing through the full slice
thickness range. Refer to the static slitter assembly for slice thickness range restrictions.
Static blades are very sharp -- use care when handling and wear recommended
cut-resistant safety gloves.
Use care to align slots in the product holders with the blades or damage to the
blades and product holders will occur. Damage to the machine will occur if the
slice thickness range restrictions are exceeded.
Use care to align slots in the product holders with the blades or damage to the
blades and product holders will occur. Damage to the machine will occur if the
slice thickness range restrictions are exceeded.
Static
Slitter
Blade
Dedicated
Thickness
Tray
Product
Holder
Sl
