Model 613-VS2-LES, Log End Slicer Maintenance
R-1176866 613-VS2-LES_CJL20160114.doc:1/15/2016 4:21 PM Grote Company 48
IDLE SIDE PULLEY BEARING AND/OR PULLEY REPLACEMENT
Replacement of the idle side pulley bearing may be necessary due to excessive wear of either the pulley
or bearing. The bearing mounts in the center of the pulley with a lip seal on the shaft to retain lubricant
and keep out contaminants and water.

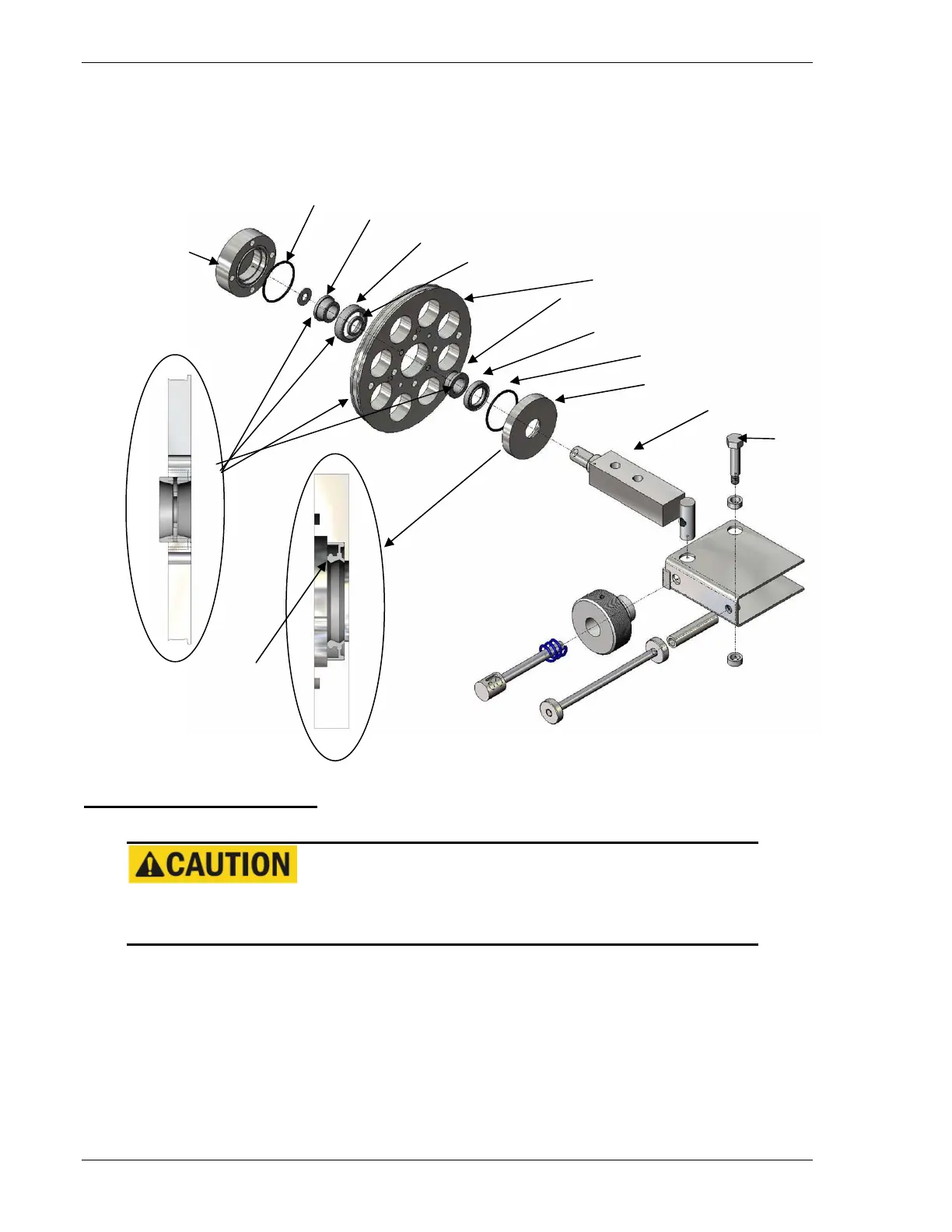

Figure 39
Idle Side
Pulley Assembly
Removing Old Bearing
1. Remove the band blade.
2. Remove shaft and pulley from machine by removing shoulder bolt that attaches the shaft to the
support.
3. Remove front cap of pulley by removing the four bolts. Discard the old O-ring.
4. Remove bolt and washer at the end of shaft.
5. Pull pulley from shaft. The bearing outer race and one tapered roller will be removed with it.
6. Remove bearing spacer and the other tapered roller from shaft.
7. Pull rear cap from shaft. Remove shaft seal and O-ring from rear cap and discard.
8. Press bearing outer race from pulley.
Band blades are very sharp--use care when handling and wear recommended cut-
resistant safety gloves.
Seal
O-Ring
Rear Cap
Tapered Roller
Idle Shaft
Seal
Shoulder Bolt
Bearing Outer Race
Tapered Roller
Front Cap
O-Ring
Bearing Spacer
Pulley
