Growatt SPF 6000T DVM-MPV User Manual

16

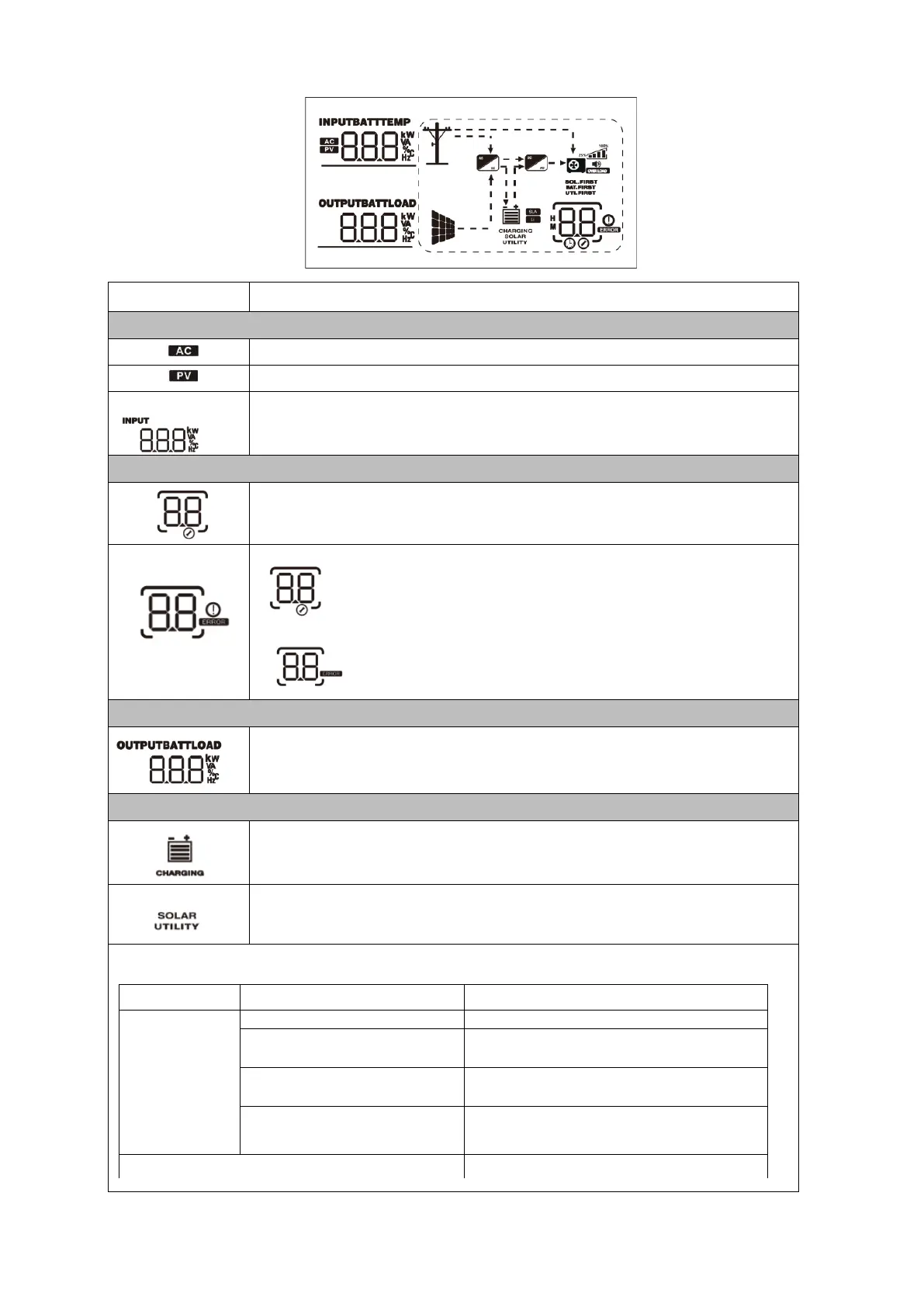

LCD Display Icons
Icon
Function Description
Input Source Information
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, battery voltage and
charger current.
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: flashing with warning code.
Fault:lighting with fault code
Output Information
Indicate output voltage, output frequency, load percent, load in VA, load in
Watt and discharging current.
Battery Information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
These two signs indicate the charge priority. SOLAR indicates solar first.
UTILITY indicate utility first. SOLAR blinking indicates solar only; SOLAR and
UTILITY both on indicates combined charging.
In AC mode, it will present battery charging status.
Status
Battery voltage
LCD Display
Constant
Current mode /
Constant
Voltage mode
<2V/cell
4 bars will flash in turns.
2 ~ 2.083V/cell
Bottom bar will be on and the other three
bars will flash in turns.
2.083 ~ 2.167V/cell
Bottom two bars will be on and the other
two bars will flash in turns.
> 2.167 V/cell
Bottom three bars will be on and the top
bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.

Growatt SPF 6000T DVM-MPV Specifications

General

Model	SPF 6000T DVM-MPV
Category	Inverter
Rated Power	6000W
Output Voltage	230V AC
Efficiency	93%
MPPT Voltage Range	120-450V
Max. Charging Current	120A
Output Frequency	50/60 Hz
Battery Voltage	48V
Max PV Charging Current	120A
Operating Temperature	-10°C to 50°C
Communication	USB
Max Solar Input Voltage	500V
Protection	Overload, Short circuit, Over-temperature
DC Voltage	48V
AC Voltage	230VAC
Cooling Method	Fan
