Growatt SPF3000TL HVM User Manual

4
Did the problem occur before?
What were the ambient conditions when the problem occurred?
Information concerning the PV panels:
Manufacturer name and model number of the PV panel
Output power of the panel
Voc of the panel
Vmp of the panel
Imp of the panel
Number of panels in each string
How many strings connected in one MPP tracker
If it is necessary to replace the unit, please ship it with the original box.

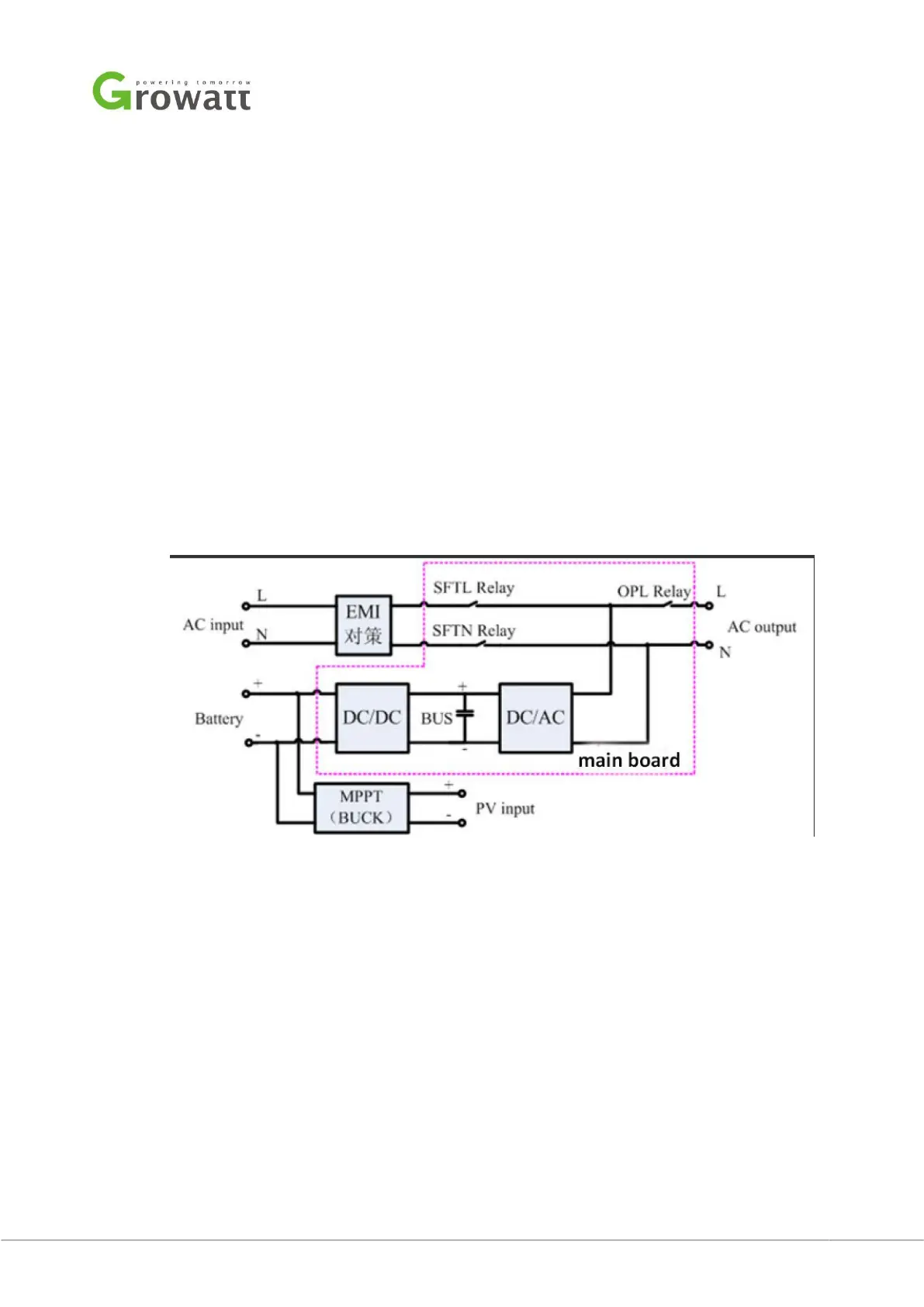

1.1 Off grid SPF inverter logic diagram

Growatt SPF3000TL HVM Specifications

General

Rated Power	3000W
Input Voltage	230V AC
Output Voltage	230V AC
Efficiency	93%
Dimensions	330 x 485 x 135 mm
Weight	12 kg
Max. PV Array Power	4000W
Max. Charging Current	60A
Max. AC Charging Current	30A
Max. Solar Charging Current	60A
Number of MPP Trackers	1
Output Frequency	50/60Hz
Communication	RS232
